SA-VE702/VE705/WMS7/SS-MS7
66
12
A
B
C
D
E
F
G
H
I
J
345678910

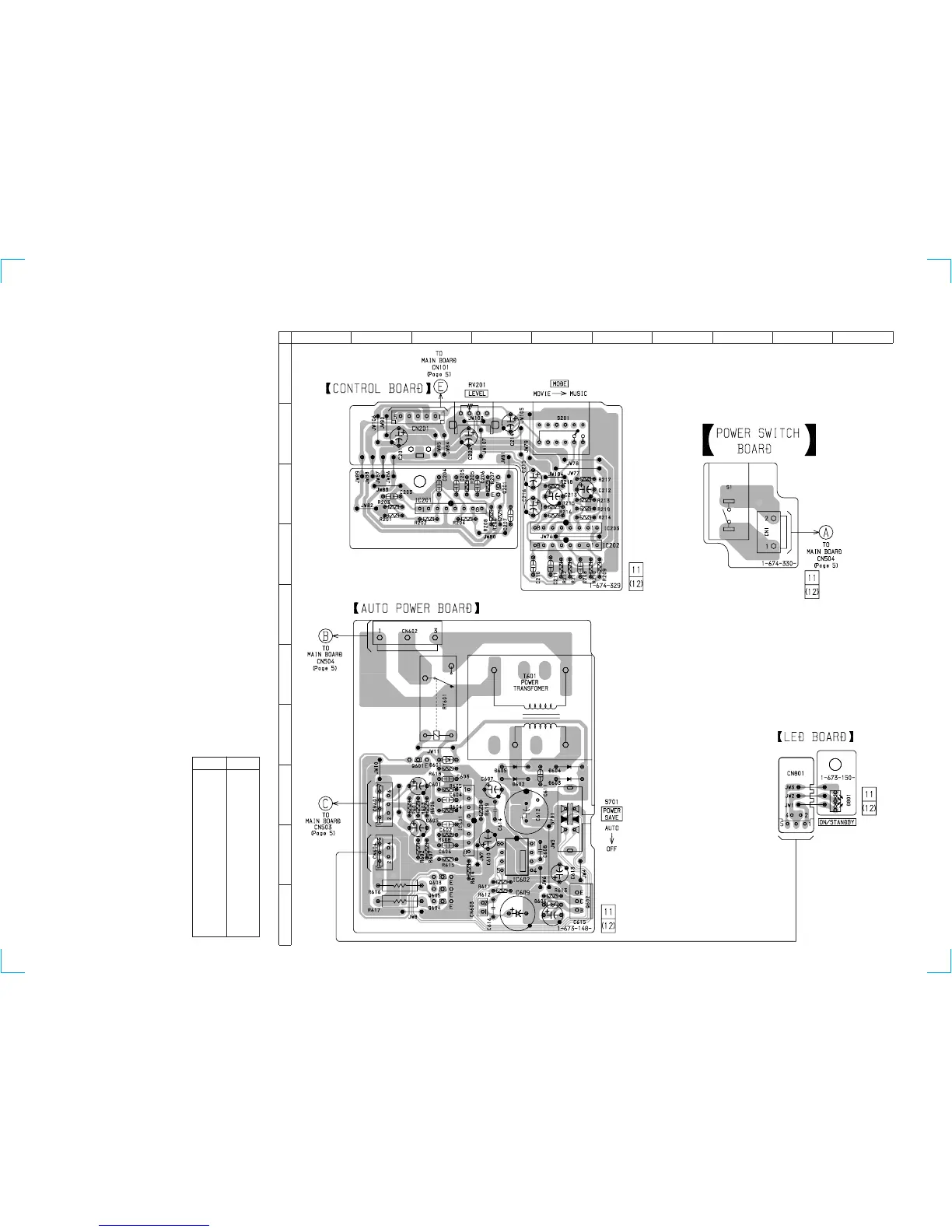

2-4. PRINTED WIRING BOARD CONTROL SECTION • See page 3 for Circuit Boards Location. • See page 4 for Schematic Diagram.
Ref. No. Location
D601 G-3
D602 H-4
D603 H-5
D604 H-5
D605 H-4
D606 J-5
D801 H-10
IC201 C-3
IC202 D-5
IC203 D-5
IC601 H-3
IC602 I-4
Q201 C-4
Q601 G-3
Q602 J-5
Q603 I-3
Q604 J-3
Q605 J-3
• Semiconductor
Location
