2
SS-CT11/TS10/TS11/WS10

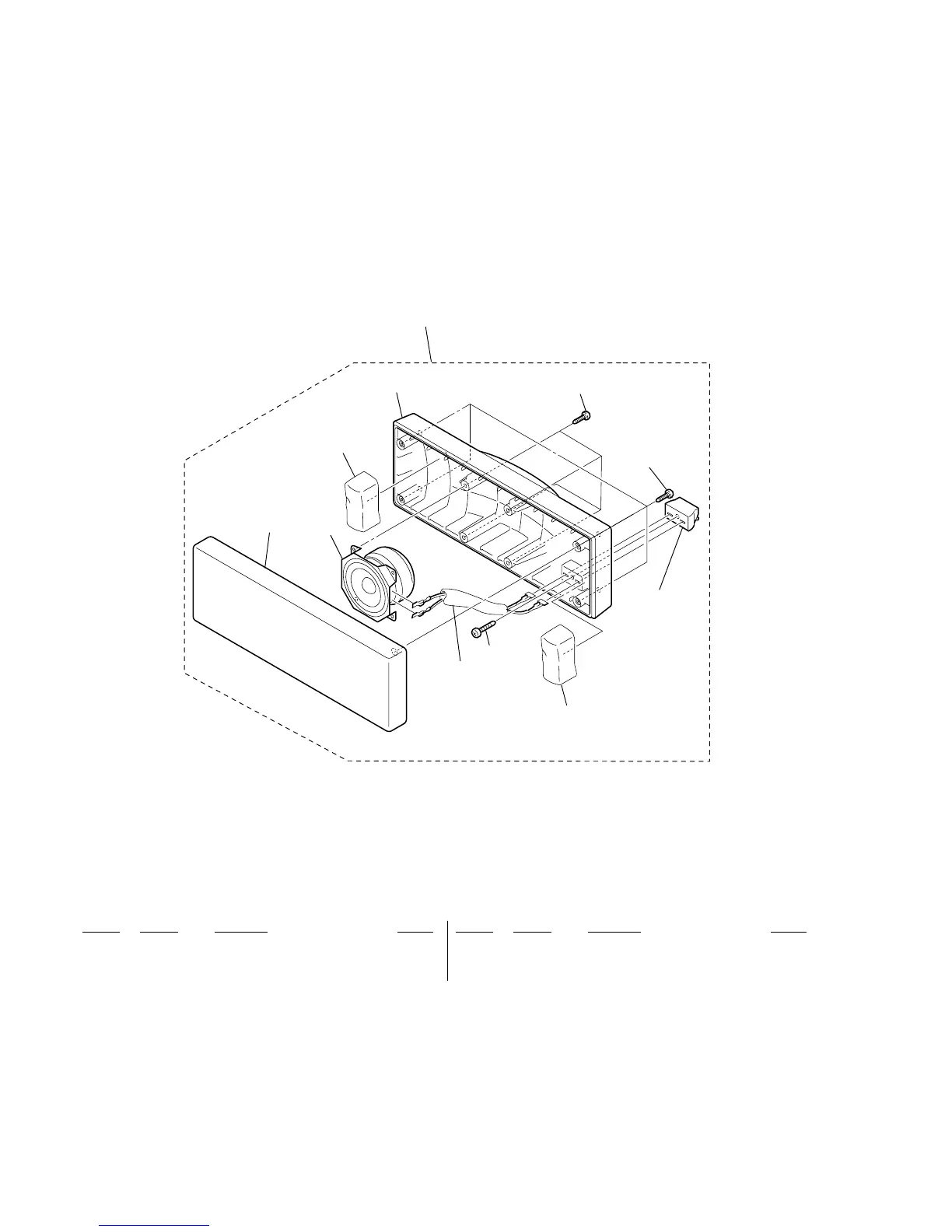

EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
1 A-4715-529-A OVERALL ASSY
2 4-254-936-01 FRAME, GRILLE
3 1-825-872-11 SPEAKER (7CM)
4 4-874-614-02 SCREW (1) (3.5X14), TAPPING
5 4-254-937-01 CABINET
6 1-694-836-11 TERMINAL, SPEAKER
SS-CT11
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
not
supplied
not
supplied
not
supplied
4
4
4
6
3
5
2
1
To Next Page
