NOTE:
• The mechanical parts with no reference number in
the exploded views are not supplied.
Ref. No. Part No. Description Remark
1 X-4952-567-1 GRILLE FRAME ASSY
2 4-228-909-01 SPECIAL HEAD SCREW
3 3-043-782-01 FRONT (SPK) PANEL
4 7-685-904-59 +PWH 4X16
5 3-043-779-01 REAR (SPK) CABINET
6 3-043-781-01 TERMINAL
7 4-226-303-01 LABEL (FR)
7 4-226-304-01 LABEL (FL)
7 4-226-305-01 LABEL (RR)
7 4-226-306-01 LABEL (RL)
7 4-226-375-01 LABEL (C)
8 4-228-406-01 MODEL NUMBER LABEL
SP1 1-529-616-11 SPEAKER (80 mm)

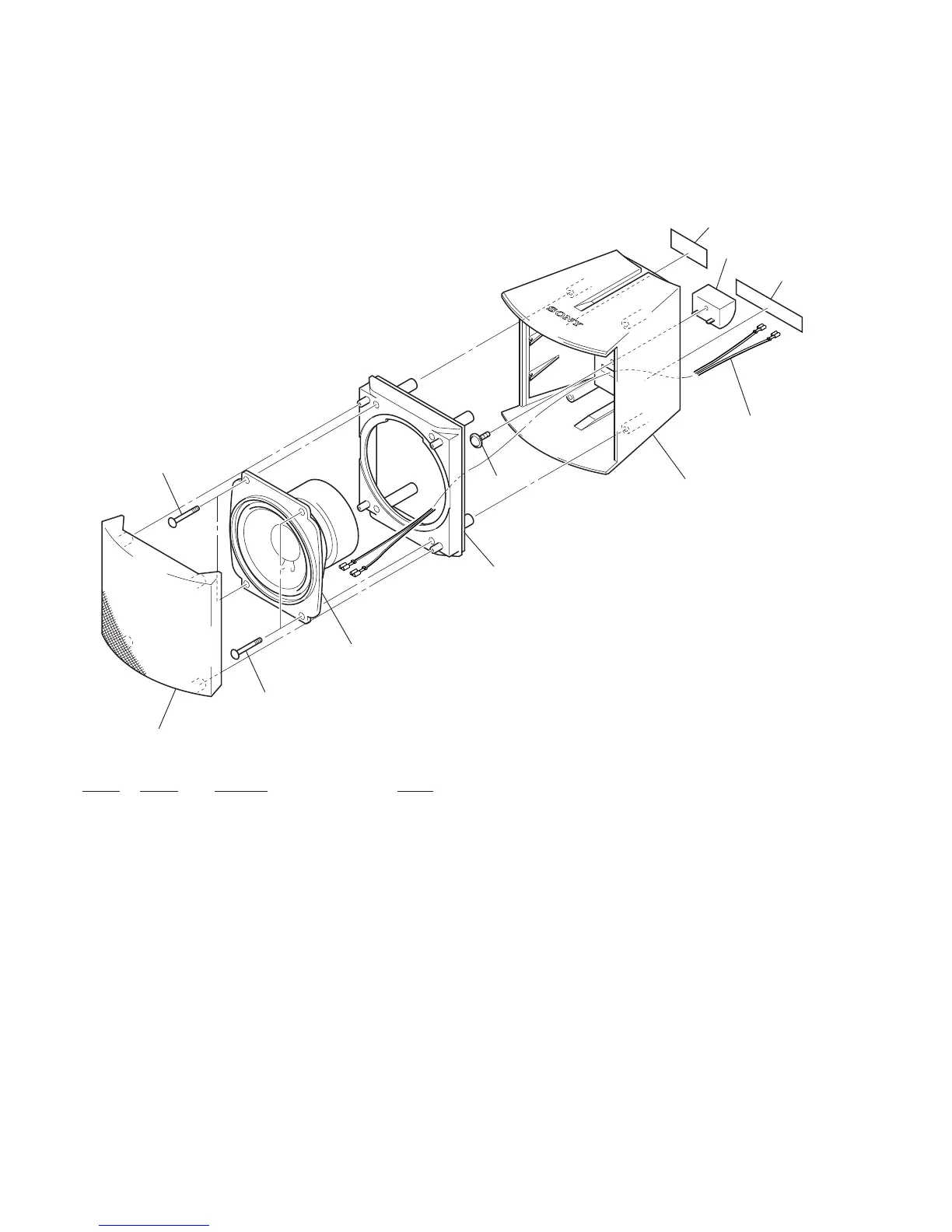

EXPLODED VIEW AND PARTS LIST
SS-TS300
9-929-052-11
2000A091681-1
Printed in Japan © 2000. 01
Published by Quality Assurance Dept.
SP1
not supplied
1
2
3
4
2
5
6
8
7
