Sony SS-TS46B User Manual

SS-CT46/GS24/TS46/TS46B/WS42
2
1 X-2055-023-1 ASSY, GRILLE FRAME (PUNCHING)
2 4-874-614-81 +BVTP 3.5X16 TYPE2
3 2-048-751-01 SCREW +BVTP 3.5X14 TYPE2
4 4-255-545-01 FOOT
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
5 A-1111-564-A OVERALL ASSY
6 1-694-836-11 TERMINAL, SPEAKER
SP1 X-2055-382-1 SPEAKER ASSY
SS-CT46
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
1
2
2
2
3
4
6
not
supplied
not
supplied
not
supplied
SP1
not
supplied
5

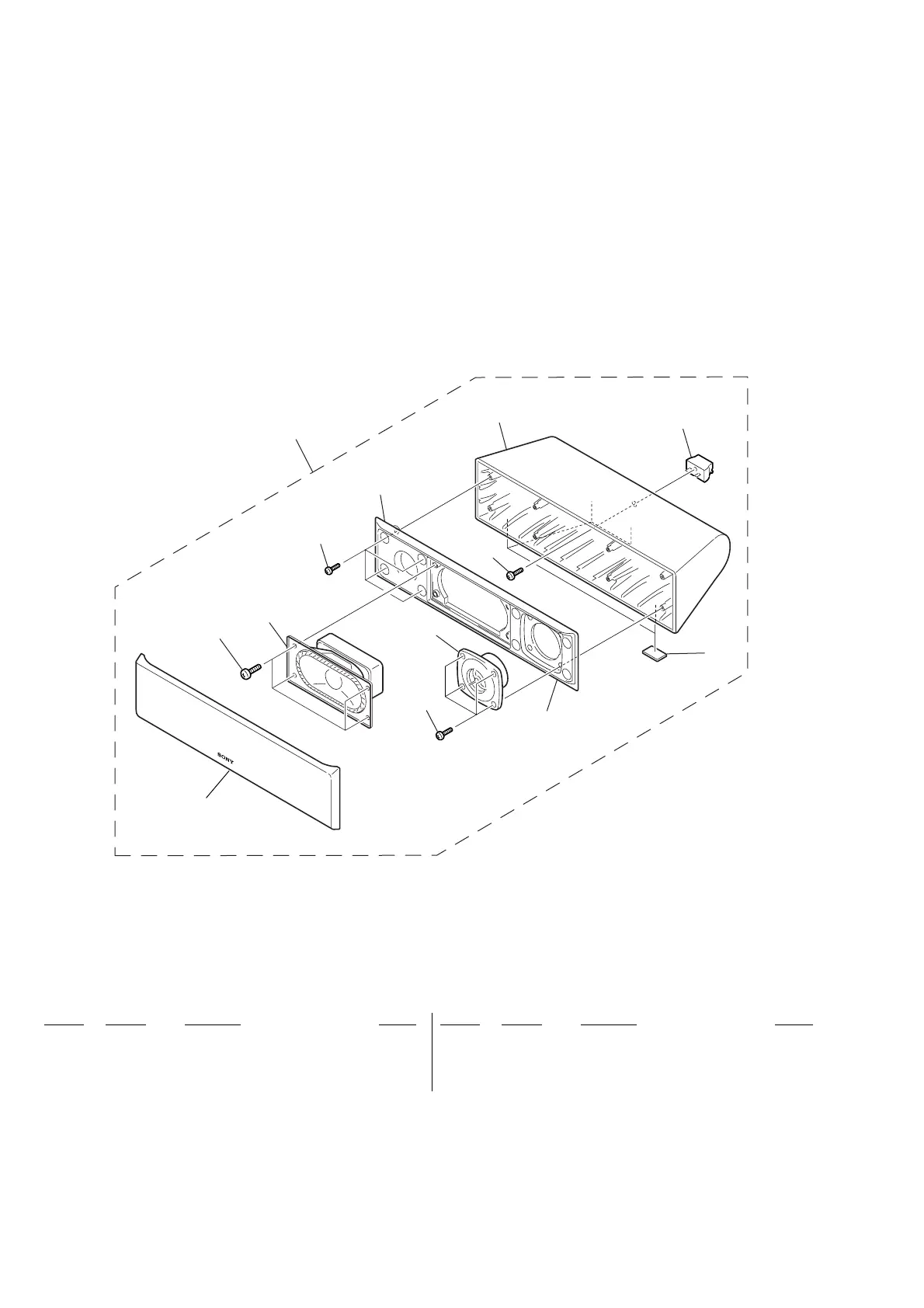

EXPLODED VIEWS
