Sony SS-V5500 - Exploded View and Parts List; Component Identification; Part Number Cross-Reference

— 2 —

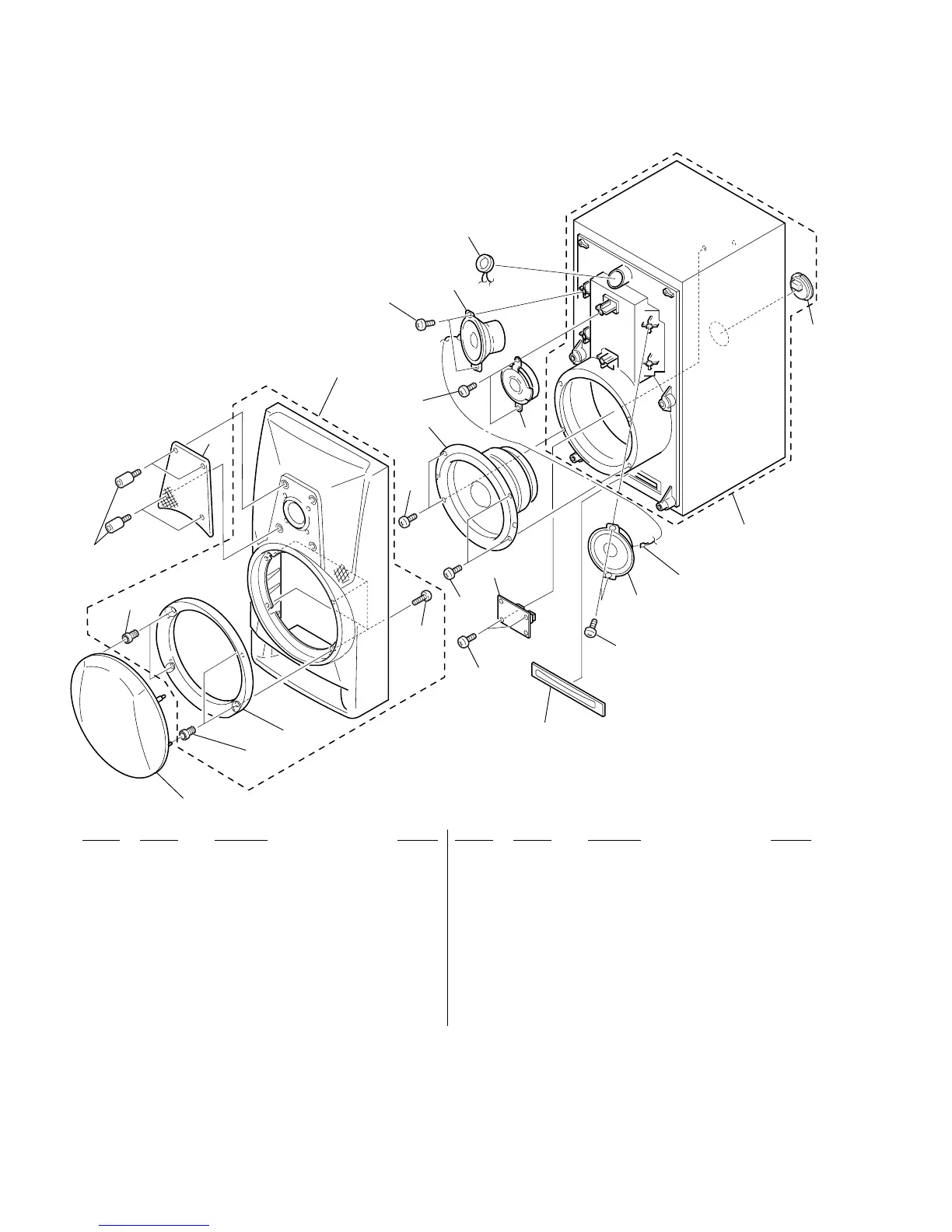

EXPLODED VIEW AND PARTS LIST
1
2
2
12
3
4
5
5
6
9
5
11
5
10
8
13
SP5
SP3
SP1
SP2
SP4
7
11
not
supplied
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
1 X-4948-678-1 FRAME ASSY, GRILLE
* 2 4-963-075-01 CATCHER
3 X-4948-677-1 PANEL ASSY, FRONT
4 X-4948-679-1 FRAME ASSY, MID
5 4-874-614-31 SCREW +BVTP 3.5X12
* 6 1-589-972-11 PC BOARD (NETWORK)
* 7 4-992-369-01 RING, WOOFER
* 8 A-4384-648-A CABINET ASSY, SPEAKER
9 7-685-146-11 SCREW +P 3X8 TYPE2
10 4-992-376-01 PACKING
11 7-685-660-79 SCREW +P 4X10 TYPE2
12 4-992-366-01 ORNAMENT SCREW
13 1-782-756-11 CORD
SP1 1-505-581-11 SPEAKER (16cm)
SP2 1-505-676-11 SPEAKER (3cm)
SP3,4 1-505-730-11 SPEAKER (5cm)
SP5 1-505-762-11 SPEAKER (2cm)
**************************************************************
ACCESSORIES & PACKING MATERIALS
*******************************
1-775-512-21 CORD, SPEAKER CONNECTION (2.5m)
Note:
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering these
items.
• The mechanical parts with no reference number
in the exploded views are not supplied.
SS-V5500
Ver 1.2
