Sony SS-WS5 - Exploded Views; SS-CT5 Exploded View and Parts

SS-CT5/TS5/WS5/WT5
2
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
SS-CT5
1
2
3
4
4

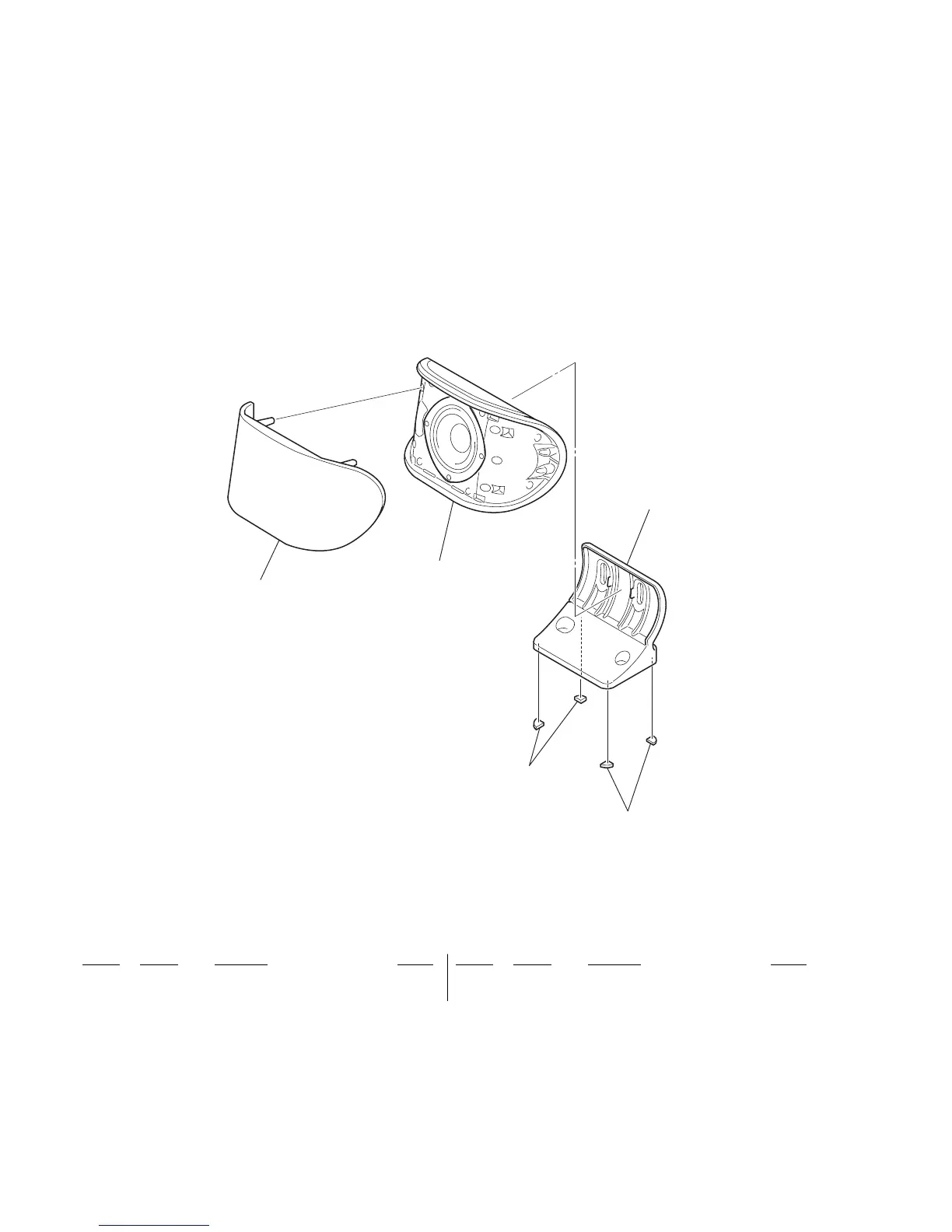

EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference number
in the exploded views are not supplied.
• -XX, -X mean standardized parts, so they may
have some differences from the original one.
1 A-4740-225-A FRAME SUB ASSY, GRILL
2 A-4740-221-A CABINET (CENTER) ASSY
3 4-249-140-01 STAND (CENTER)
4 4-249-141-01 FOOT (CENTER)
