SS-CT6/SC6/TS6/TS7/WS6
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

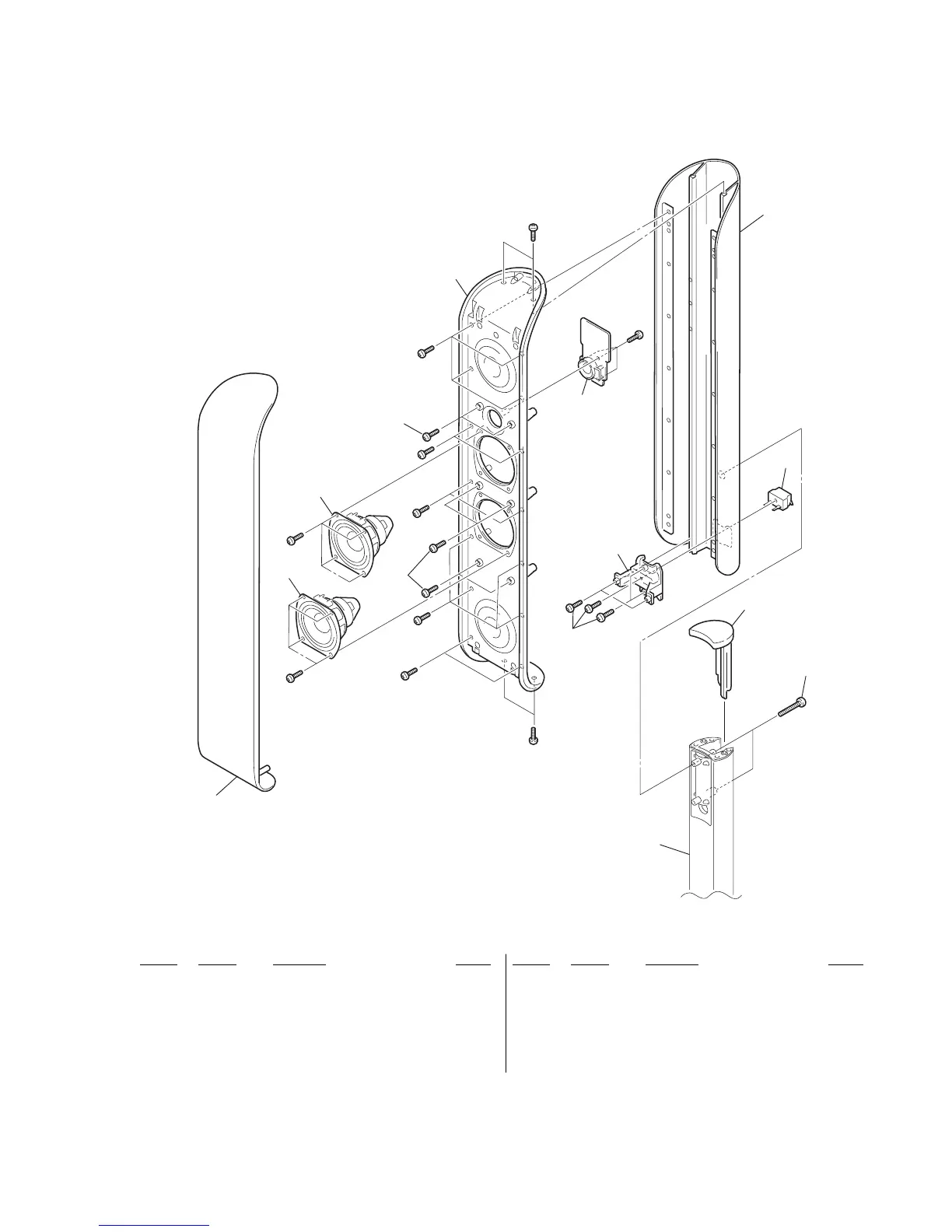

SS-TS6 (OVERALL SECTION)
51 X-4955-907-1 FRAME ASSY, GRILLE
52 4-249-757-01 BUFFLE PANEL(FRONT)
53 4-249-754-01 SPEAKER CABINET (FR)
54 1-694-836-11 TERMINAL, SPEAKER
55 4-249-758-01 TERMINAL BASE (FR)
56 4-251-125-01 SCREW (M5X35)
57 4-250-938-01 SCREW 3X10 +PTP
SP3 1-825-592-11 SPEAKER (7cm)
SP4 1-825-591-11 SPEAKER (1.5cm)
#8 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S
#9 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S
#10 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S
#8
#8
#9
51
52
not supplied
53
54
56
55
57
stand section
SP3
SP4
SP3
#10
#10
#10
#10
#10
#10
#10
57
57
To Next Page
