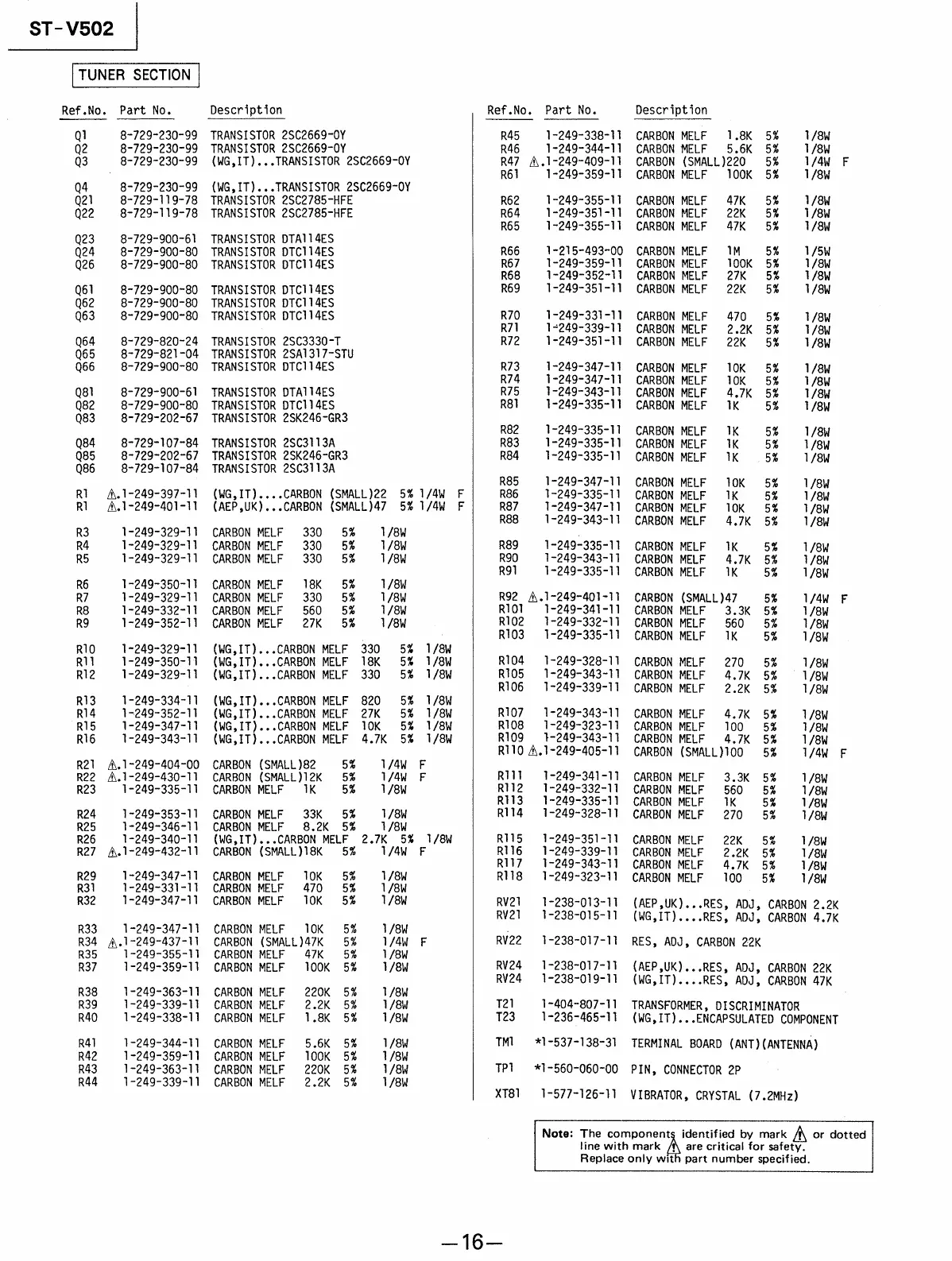

ST-V502
TUNER SECTION
Ref.No. Part No. Description Ref.No, Part No. Description
en 8-729-230-99 TRANSISTOR 2SC2669-0Y R45 1-249-338-11 CARBON MELF 1.8K 5% 1/8W
Q2 8-729-230-99 TRANSISTOR 2SC2669-0Y R46 1-249-344-11 CARBON MELF 5.6K 5% 1/8W
Q3 8-729-230-99 (WG,IT)...TRANSISTOR 2SC2669-0Y R47 A\.1-249-409-11 CARBON (SMALL)220 5% 1/4W F
R61 1-249-359-11 CARBON MELF 100K 5% #1/8W
Q4 8-729-230-99 (WG,IT)...TRANSISTOR 2SC2669-OY
Q21 8-729-119-78 TRANSISTOR 2SC2785-HFE R62 1-249-355-11 CARBON MELF 47K 5% 1/8W
022 8-729-119-78 TRANSISTOR 2SC2785-HFE R64 1-249-351-11 CARBON MELF 22K 5% 1/8W
R65 1-249-355-11 CARBON MELF 47K 5% 1/8W
Q23 8-729-900-61 TRANSISTOR DTA114ES
Q24 = 8-729-900-80 TRANSISTOR DTC114ES R66 1-215-493-00 CARBON MELF 1M 5% 1/5W
026 8-729-900-80 TRANSISTOR DTC114ES R67 1-249-359-11 CARBON MELF 100K 5% 1/8W
R68 1-249-352-11 CARBON MELF 27K 5% 1/8W
Q61 8-729-900-80 TRANSISTOR DTC114ES R69 1-249-351-11 CARBON MELF 22K 5% 1/8W
Q62 8-729-900-80 TRANSISTOR DTC114ES
Q63 8-729-900-80 TRANSISTOR DTC114ES R70 1-249-331-11 CARBON MELF 470 5% ~~ 1/8W
R71 1=249-339-11 CARBON MELF 2.2K 5% 1/8W
Q64 8-729-820-24 TRANSISTOR 2SC3330-T R72 1-249-351-11 CARBON MELF 22K 5% }# 1/8W
Q65 8-729-821-04 TRANSISTOR 2SA1317-STU
066 8-729-900-80 TRANSISTOR DTC114ES R73 1-249-347-11 CARBON MELF 10K 5% 1/8W
R74 = 1-249-347-11 CARBON MELF 10K 5% # 1/8W
Q8i 8-729-900-61 TRANSISTOR DTATI4ES R75 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
Q82 8-729-900~80 TRANSISTOR DTC114ES R81 1-249-335-11 CARBON MELF 1K 5% 1/8W
083 8-729-202-67 TRANSISTOR 2SK246-GR3
R82 1-249-335-1171 CARBON MELF 1K 5% 1/8W
Q84 8-729-107-84 TRANSISTOR 2SC3113A R83 1-249-335-11 CARBON MELF 1K 5% 1/8W
085 8-729-202-67 TRANSISTOR 2SK246-GR3 R84 1-249-335-11 CARBON MELF 1K 5% 1/8W
Q86 8-729-107-84 TRANSISTOR 2SC3113A
R85 1-249-347-11 CARBON MELF 10K 5% 1/8W
R1 A. 1-249-397-11 (WG,IT)....CARBON (SMALL)22 5% 1/4W R86 1-249-335-11 CARBON MELF 1K 5% 1/8W
R1 = A\.1-249-401-11 (AEP,UK)...CARBON (SMALL)47 5% 1/4W R87 1-249-347-11 CARBON MELF 10K 5% 1/8W
R88 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
R3 1-249-329-11 CARBON MELF 330 5% }# 1/8W
R4 1-249-329-11 CARBON MELF 330 5% # 1/8W R89 1-249-335-11 CARBON MELF 1K 5% 1/8W
R5 1-249-329-11 CARBON MELF 330 5% }#1/8W RIO 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
R91 1-249-335-11 CARBON MELF 1K 5% 1/8W
R6 1-249-350-11 CARBON MELF 18K 5% 1/8W
R7 1-249-329-11 CARBON MELF 330 5% # 1/8W R92 A\.1-249-401-11 CARBON (SMALL)47 5% 1/4W F
RB 1-249-332-11 CARBON MELF 560 5% 1/8W R101 = 1-249-341-11 CARBON MELF 3.3K 5% 1/8W
R9 1-249-352-11 CARBON MELF 27K 5% # 1/8W R102 1-249-332-11 CARBON MELF 560 5% 1/8W
.
R103.
1-249-335-11
CARBON
MELF
1K
5%
1/8W
R10 1~249-329-11 (WG,IT)...CARBON MELF 330 5% 1/8W
R11 1-249-350-11 (WG,IT)...CARBON MELF 18K 5% 1/8W R104 = 1-249-328-11 CARBON MELF 270 5% #1/8W
R12 1-249-329-11 (WG,IT)...CARBON MELF 330 5% 1/8W R105 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
R106 1-249-339-11 CARBON MELF 2.2K 5% 1/8W
R13 1-249-334-11 (WG,IT)...CARBON MELF 820 5% 1/8W
R14 1-249-352-11 (WG,IT)...CARBON MELF 27K 5% 1/8W R107. 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
R15 1-249-347-11 (WG,IT)...CARBON MELF 10K 5% 1/8W R108 1-249-323-11 CARBON MELF 100 5% 1/8W
R16 1-249-343-11 (WG,IT)...CARBON MELF 4.7K 5% 1/8W R109 = ¥-249-343-11 CARBON MELF 4.7K 5% 1/8W
R110 A.1-249-405-11 CARBON (SMALL)100 5% 1/4W F
R21 A\.1-249-404-00 CARBON (SMALL)82 5% 1/4w F
R22 /A\.1-249-430-11 CARBON (SMALL)12K 5% 1/4W F R111: 1-249-341-11 CARBON MELF 3.3K 5% 1/8W
R23 1-249-335-11 CARBON MELF 1K 5% 1/8W R112. =: 1-249-332-11 CARBON MELF 560 5% 1/8W
R113. 1-249-335-11 CARBON MELF 1K 5% 1/8W
R24 1~249-353-11 CARBON MELF 33K 5% # 1/8W R114 —- 1-249-328-11 CARBON MELF 270 5% 1/8W
R25 1-249-346-11 CARBON MELF 8.2K 5% 1/8W
R26 1-249-340-11 (WG,IT)...CARBON MELF 2.7K 5% 1/8W R115 1-249-351-11 CARBON MELF 22K 5% # 1/8W
R27 A\.1-249-432-11 CARBON (SMALL)18K 5% 1/4W F R116 1-249-339-11 CARBON MELF 2.2K 5% 1/8W
R117: 1-249-343-11 CARBON MELF 4.7K 5% 1/8W
R29 1-249-347-11 CARBON MELF 10K 5% # 1/8W R118 1-249-323-11 CARBON MELF 100 5% 1/8W
R31 1-249-331-11 CARBON MELF 470 5% 1/8W
R32
1-249-347-11
CARBON
MELF
10K
5%
1/8W
RV21
=:
1-238-013-11
(AEP,UK)...RES,
ADJ,
CARBON
2.2K
RV21 =: 1-238-015-11 (WG,IT)....RES, ADJ, CARBON 4.7K
R33 1-249~347-11 CARBON MELF 10K 5% 1/8W
R34 A\.1-249-437-11 CARBON (SMALL)47K 5% 1/4W F RV22 =1-238-017-11 RES, ADJ, CARBON 22K
R35 1-249-355-11 CARBON MELF 47K 5% 1/8W
R37 1-249-359-11 CARBON MELF 100K 5% 1/8W RV24 =: 1-238-017-11 (AEP,UK)...RES, ADJ, CARBON 22K
RV24 - 1-238-019-11 (WG,IT)....RES, ADJ, CARBON 47K
R38 1-249-363-11 CARBON MELF 220K 5% 1/8W
R39 1-249-339-11 CARBON MELF 2.2K 5% 1/8W T21 1~404-807-11 TRANSFORMER, DISCRIMINATOR
R40 1-249-338-11 CARBON MELF 1.8K 5% 1/8W T23 1-236-465-11 (WG,IT)...ENCAPSULATED COMPONENT
R41 1-249-344-11 CARBON MELF 5.6K 5% 1/8W TMI = *1-537-138-31 TERMINAL BOARD (ANT) (ANTENNA)
R42 1-249-359-11 CARBON MELF 100K 5% 1/8W
R43 1-249-363-11 CARBON MELF 220K 5% 1/8W TP! *1-560-060-00 PIN, CONNECTOR 2P
R44 1-249-339-11 CARBON MELF 2.2K 5% 1/8W
XT81-
1-577-126-11
VIBRATOR,
CRYSTAL
(7.2MHz)
line with mark are critical for safety.
Replace only with part number specified.
Note: The nth mark are ert by mark A or dotted
