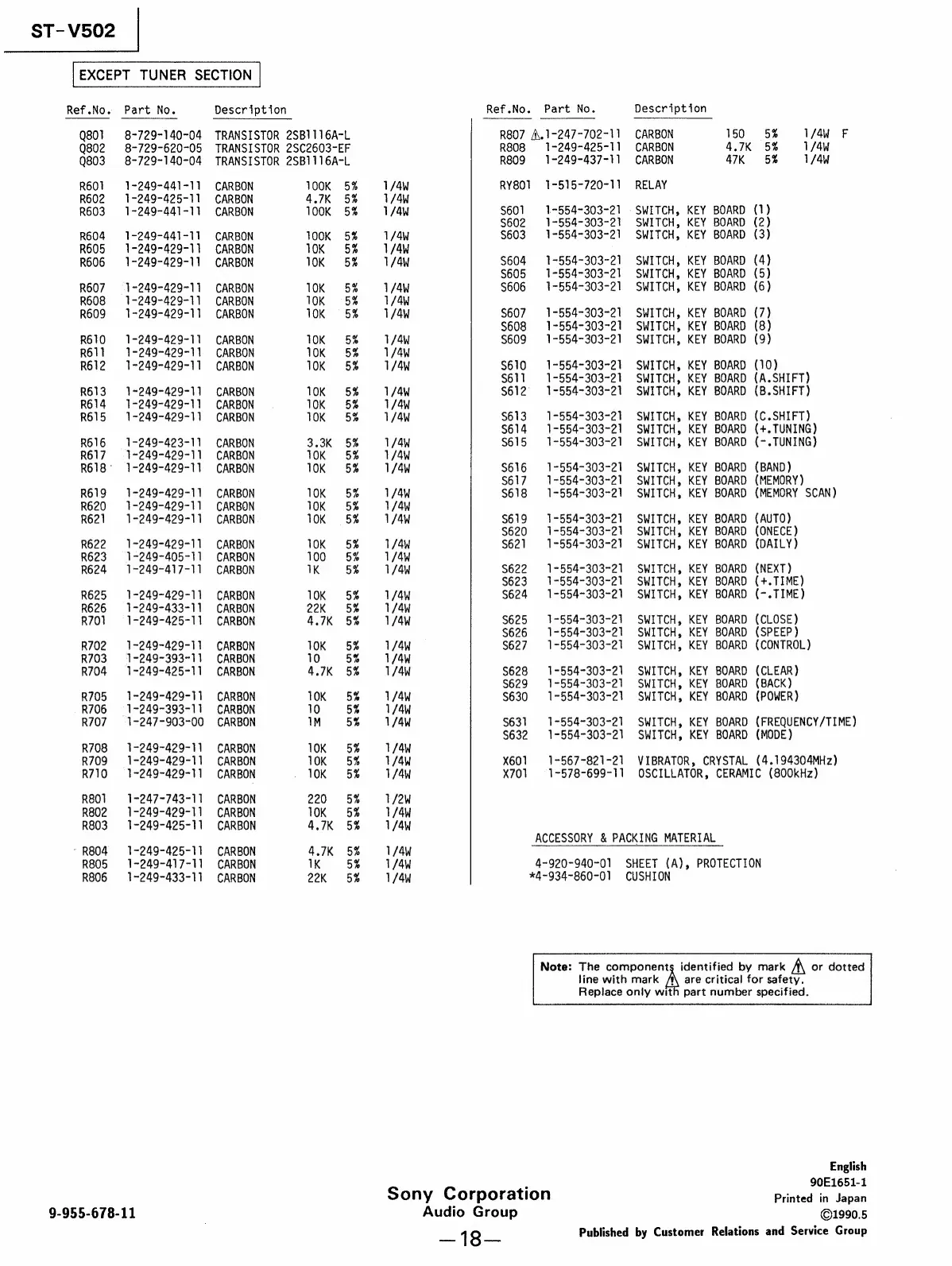

ST- V502 |
EXCEPT TUNER SECTION
Ref.No. Part No. Description Ref.No. Part No. Description
Q801 8-729-140-04 TRANSISTOR 2SBI116A-L R807 A\.1-247-702-11 CARBON 150 5% 1/4w OF
Q802 8-729-620-05 TRANSISTOR 2SC2603-EF R808 1-249-425-11 CARBON 4.7K 5% 1/4W
Q803 8-729-140-04 TRANSISTOR 2SB1116A-L R809 1-249-437-11 CARBON 47K 5% 1/4W
R601 = 1~-249-441-11 CARBON 100K 5% 1/4W RY801 1-515-720-11 RELAY
R602 =1-249-425-11 CARBON 4.7K 5% 1/4W
R603 -1-249-441-11 CARBON 100K 5% 1/4W $601 1-554-303-21 - SWITCH, KEY BOARD (1)
$602 1-554-303-21 SWITCH, KEY BOARD (2)
R604 = 1-249-441-11 CARBON TOOK 5% 1/4W $603. 1-554-303-21 SWITCH, KEY BOARD (3)
R605 1-249-429-11 CARBON 10K = 5% 1/4W
R606 =1-249-429-11 CARBON 1OK «5% 1/4W $604 1-554-303-21 SWITCH, KEY BOARD (4)
$605 1-554-303-21 SWITCH, KEY BOARD (5)
R607. =—- 1-249-429-11 CARBON 10K 5% 1/4W $606 1-554-303-21 SWITCH, KEY BOARD (6)
R608 1-249-429-11 CARBON TOK = 5% 1/4W
R609 1-249-429-11 CARBON TOK = 5% 1/4W $607. 1-554-303-21 SWITCH, KEY BOARD (7)
$608 1-554-303-21 SWITCH, KEY BOARD (8)
R610 1-249-429-11 CARBON TOK 5% 1/4W $609 1-554-303-21 SWITCH, KEY BOARD (9)
R611 = 1-249~-429-11 CARBON 10K «5% 1/4W
R612 1-249-429-11 CARBON 10K «5% 1/4W $610 1-554-303-21 SWITCH, KEY BOARD (10)
$611 1-554-303-21 SWITCH, KEY BOARD (A.SHIFT)
R613. 1~249-429-11 CARBON 10K «5% 1/4W $612 1-554-303-21 SWITCH, KEY BOARD (B.SHIFT)
R614 =1-249-429-11 CARBON 10K 5% 1/4W
R615 1~-249-429-11 CARBON 10K 5% 1/4W $613. 1-554-303-21 SWITCH, KEY BOARD (C.SHIFT)
S614 1-554-303-21 SWITCH, KEY BOARD (+.TUNING)
R616 1-249-423-11 CARBON 3.3K 5% 1/4W $615 1-554-303-21 SWITCH, KEY BOARD (-. TUNING)
R617 =: 1-249-429-11 CARBON TOK «5% 1/4W
R618° 1-249-429-11 CARBON 1OK §=5% 1/4W S616 1-554-303-21 SWITCH, KEY BOARD (BAND)
$617: 1-554-303-21 SWITCH, KEY BOARD (MEMORY)
R619 = 1-249-429-11 CARBON 10K 5% 1/4W $618 1-554-303-21 SWITCH, KEY BOARD (MEMORY SCAN)
R620 1-249-429-11 CARBON YOK 5% 1/4W
R621 = 1-249-429-11 CARBON TOK «5% 1/4W $619 1-554-303-21 SWITCH, KEY BOARD (AUTO)
$620 1-554-303-21 SWITCH, KEY BOARD (ONECE)
R622 1-249-429-11 CARBON 10K 5% 1/4W $621 1-554-303-21 SWITCH, KEY BOARD (DAILY)
R623 =: 1-249-405-11 CARBON 100 «55% 1/4W
R624 =1-249-417-11 CARBON 1K 5% 1/4W S622 1-554-303-21 SWITCH, KEY BOARD (NEXT)
$623 1-554-303-21 SWITCH, KEY BOARD (+.TIME)
R625 1-249-429-11 CARBON 10K «5% 1/4W $624 1-554-303-21 SWITCH, KEY BOARD (-.TIME)
R626 = 1-249-433-11 CARBON 22K = 5% 1/4W
R701 = 1-249-425-11 CARBON 4.7K 5% 1/4W $625 1-554-303-21 SWITCH, KEY BOARD (CLOSE)
$626 1-554-303-21 SWITCH, KEY BOARD (SPEEP)
R702 =1-249-429-11 CARBON TOK 5% 1/4W $627. = 1-554-303-21 SWITCH, KEY BOARD (CONTROL)
R703. =: 1-249-393-11 CARBON 10 5% 1/4W
R704 1-249-425-11 CARBON 4.7K 5% 1/4W $628 1-554-303-21 SWITCH, KEY BOARD (CLEAR)
$629 1-554-303-21 SWITCH, KEY BOARD (BACK)
R705 1-249-429-11 CARBON 10K 5% 1/4W $630 1-554-303-21 SWITCH, KEY BOARD (POWER)
R706 = 1-249-393-11 CARBON 10 5% 1/4W
R707. =: 1-247-903-00 CARBON 1M 5% 1/4W $631 1-554-303-21 SWITCH, KEY BOARD (FREQUENCY/TIME)
$632 1-554-303-21 SWITCH, KEY BOARD (MODE)
R708 1-249-429-11 CARBON 10K = 55% 1/4W
R709 =1-249-429-11 CARBON 10K = 5% 1/4W X601 1-567-821-21 VIBRATOR, CRYSTAL (4.194304MHz)
R710 = 1-249-429-11 CARBON 10K 5% 1/4W X701_ = 1-578-699-11 OSCILLATOR, CERAMIC (800kHz)
R801 =1-247-743-11 CARBON 220 «5% 1/2W
R802 1-249-429-11 CARBON 10K = 5% 1/4W
R803. 1-249-425-11 CARBON 4.7K 5% 1/4W
ACCESSORY & PACKING MATERIAL
“R804 1-249-425-11 CARBON 4.7K 5% 1/4W
R805 1-249-417-11 CARBON 1K 5% 1/4W 4-920-940-01 SHEET (A), PROTECTION
R806 1-249-433-11 CARBON 22k 5% 1/4W *4-934-860-01 CUSHION
Note: The components identified by mark A or dotted
line with mark A are critical for safety.
Replace only with part number specified.
