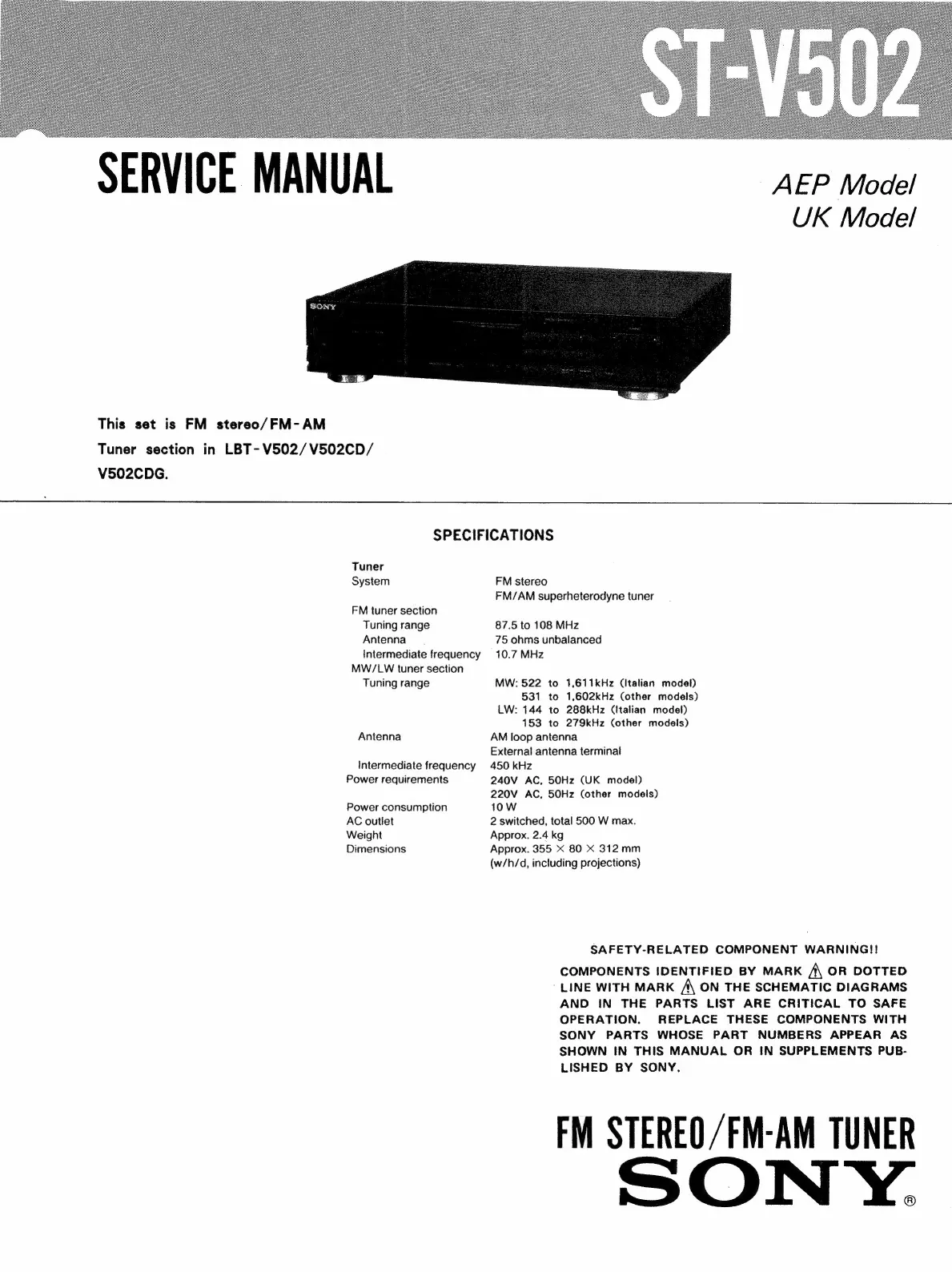

SERVICE MANUAL
sony
This set is FM stereo/FM-AM
Tuner section in LBT-V502/V502CD/
V502CDG.
SPECIFICATIONS
Tuner
System
FM tuner section
Tuning range
Antenna
Intermediate frequency
MW/LW tuner section
Tuning range
Antenna
Intermediate frequency
Power requirements
Power consumption
AC outlet
Weight
Dimensions
FM stereo
FM/AM superheterodyne tuner
87.5 to 108 MHz
75 ohms unbalanced
10.7 MHz
MW: 522 to 1,611kHz (Italian model)
531 to 1,602kHz (other models)
LW: 144 to 288kHz (Italian model)
153 to 279kHz (other models)
AM loop antenna
External antenna terminai
450 kHz
240V AC, 50Hz (UK model)
220V AC, 50Hz (other modeis)
10W
2 switched, total 500 W max.
Approx. 2.4 kg
Approx. 355 80 X 312mm
(w/h/d, including projections)
AEP Model
UK Model
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK A OR DOTTED
‘LINE WITH MARK A ON THE SCHEMATIC DIAGRAMS
AND IN THE PARTS LIST ARE CRITICAL TO SAFE
OPERATION. REPLACE THESE COMPONENTS WITH
SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB-
LISHED BY SONY.
FM STEREO/FM-AM TUNER
SONY.
