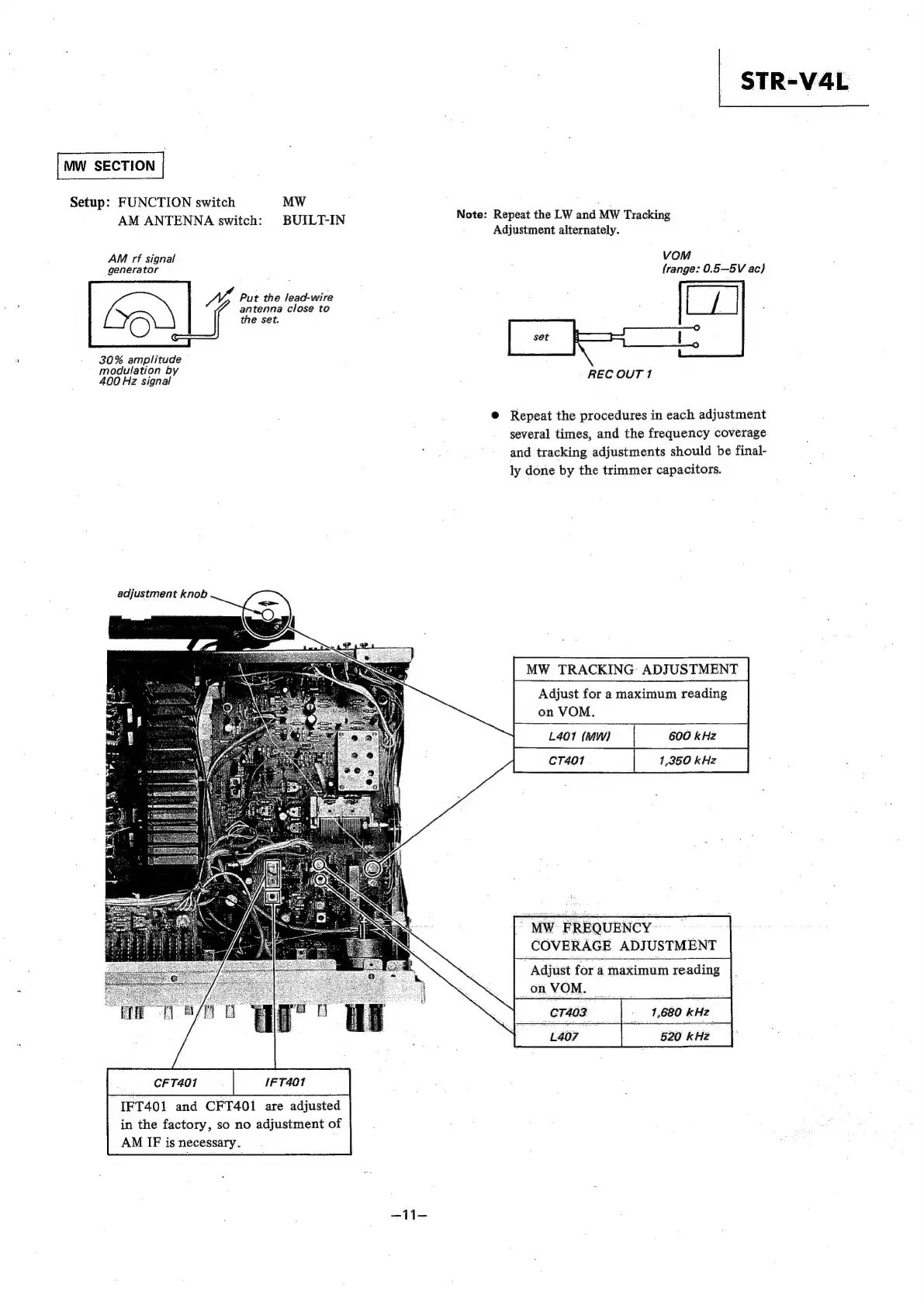

MW SECTION
Setup: FUNCTION switch MW
AM ANTENNA switch: BUILT-IN Note: Repeat the LW and MW Tracking
Adjustment alternately.
AM rf signal VOM
generator (range: 0.5—5V ac)
MN Put the lead-wire
antenna close to
© the set.
nite: Beas
modulation by
400
Hz
signal
REC
OUT1
@ Repeat the procedures in each adjustment
several times, and the frequency coverage
and tracking adjustments should be final-
ly done by the trimmer capacitors.
adjustment knob
MW TRACKING: ADJUSTMENT
Adjust for a maximum reading
on VOM.
L401 (MW) 600 kHz
CT401 1,350 kHz
“ MW FREQUENCY
COVERAGE ADJUSTMENT
Adjust for a maximum reading
on VOM.
CT403. - 1,680 kHz
; L407 520 kHz
CFT401 IFT401
IFT401 and CFT401 are adjusted
in the factory, so no adjustment of
AM IF is necessary.
