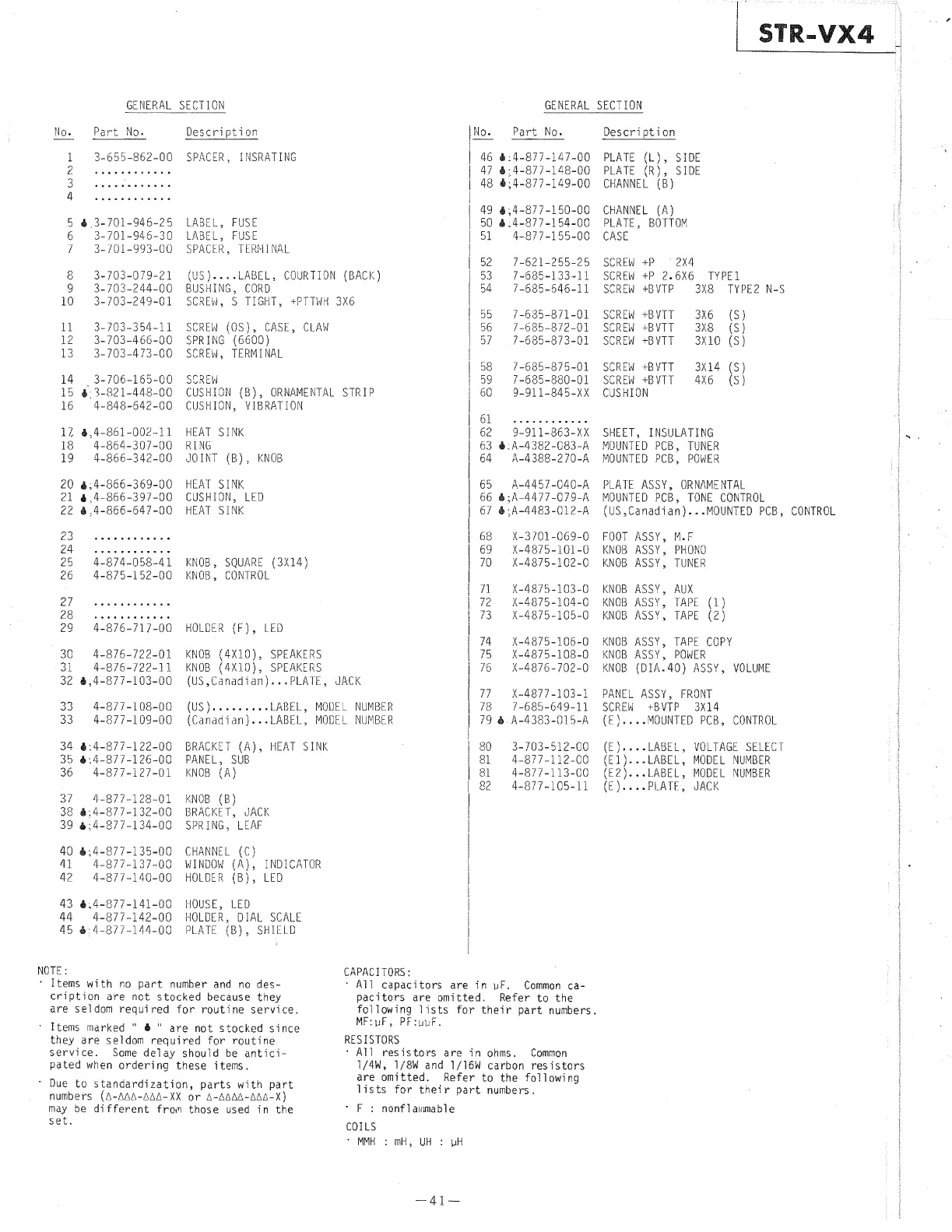

Sony STR-VX4 - Page 17

STR-VX4
GENERAL SECTION GENERAL SECTION
No. Part No. Description No. Part No. Description
1 3-655-862-00 SPACER, INSRATING 46 6:4-877-147-00 PLATE (L), SIDE
Zo Silo Aaa eeteas 47 6:4-877-148-00 PLATE (R), SIDE
So Gave Pelee tigress 48 6,4-877-149-00 CHANNEL (B)
Oo ew beet ae
49 6,4-877-150-00 CHANNEL (A)
5 @,3-701-946-25 LABEL, FUSE 50 6:4-877-154-00 PLATE, BOTTOM
6 3-701-946-30 LABEL, FUSE 51 4-877-155-00 CASE
7 3-701-993-00 SPACER, TERMINAL
52 7-621-255-25 SCREW +P = 2X4
8 3-703-079-21 (US)....-LABEL, COURTION (BACK) 53 7-685-133-11 SCREW +P 2.6X6 TYPE1
9 3-703-244-00 BUSHING, CORD 54 7-685-646-11 SCREW +BVTP 3X8 TYPE2 N-S
10 =3-703-249-01 SCREW, S TIGHT, +PTTWH 3X6
| 55 7-685-871-01 SCREW +BVTT 3x6 (S)
11 3-703-354-11 SCREW (OS), CASE, CLAW 56 7-685-872-01 SCREW +BVTT 3X8 (S)
2 3-703-466-00 SPRING (6600) 57 = 7-685-873-01 SCREW +BVTT 3X10 (S)
3 3-703-473-00 SCREW, TERMINAL
58 7-685-875-01 SCREW +BVTT 3X14 (S)
14 = -3-706-165-00 SCREW 59 7-685-880-01 SCREW +BVTT 4X6 (S)
5 @:3-821-448-00 CUSHION (8), ORNAMENTAL STRIP 60 9-911-845-XX CUSHION
6 4-848-642-00 CUSHION, VIBRATION
vee eee eae ee :
7 @,4-861-002-11 HEAT SINK 62 9-911-863-XX SHEET, INSULATING ae
18 4-864-307-00 RING 63 6:A-4382-083-A MOUNTED PCB, TUNER i
9 4-866-342-00 JOINT (B), KNOB 64 A-4388-270-A MOUNTED PCB, POWER :
20 6,4-866-369-00 HEAT SINK 65 A-4457-040-A PLATE ASSY, ORNAMENTAL :
21 @,4-866-397-00 CUSHION, LED 66 &;A-4477-079-A MOUNTED PCB, TONE CONTROL |
22 &.4-866-647-00 HEAT SINK 67 6;A-4483-012-A (US,Canadian)...MOUNTED PCB, CONTROL
3x) usesaned seas 68 X-3701-069-0 FOOT ASSY, M.F i
5 ee 69 X-4875-101-0 KNOB ASSY, PHONO :
25 4-874-058-41 KNOB, SQUARE (3X14) 70 -X-4875-102-0 OB ASSY, TUNER :
26 4-875-152-00 KNOB, CONTROL :
71 -X-4875-103-0 OB ASSY, AUX '
OT) “ert eateaoasee 72
DBr “edhwannanatnes 73
29 4-876-717-00 HOLDER (F), LED
X-4875-104-0 KNOB ASSY, TAPE (1)
X-4875-105-0 KNOB ASSY, TAPE (2)
74 X-4875-106-0 OB ASSY, TAPE COPY
X-4875-108-0 OB ASSY, POWER i
30 4-876-722-01 KNOB (4X10), SPEAKERS 75
31 4-876-722-11 KNOB (4X10), SPEAKERS 76 X-4876-702-0 KNOB (DIA.40) ASSY, VOLUME :
32 @,4-877-103-00 (US,Canadian)...PLATE, JACK i
rae X-4877-103-1 PANEL ASSY, FRONT
33 4-877-108-00 (US)......06- LABEL, MODEL NUMBER 718 7-685-649-11 SCREW +BVTP 3X14
33 4-877-109-00 (Canadian)...LABEL, MODEL NUMBER 79 6 A-4383-015-A E}....MOUNTED PCB, CONTROL
34 8:4-877-122-00 BRACKET (A), HEAT SINK 80 3-703-512-00 E})...-LABEL, VOLTAGE SELECT }
35 6:4-877-126-00 PANEL, SUB 81 4-877-112-00 (E1)..-LABEL, MODEL NUMBER a
36 4-877-127-01 OB (A) 81 4-877-113-00 (E2)...LABEL, MODEL NUMBER :
82 4-877-105-11 (E)....PLATE, JACK
37. 4-877-128-01 KNOB (B)
38 8:4-877-132-00 BRACKET, JACK
39 6;4-877-134-00 SPRING, LEAF
40 6:4-877-135-00 CHANNEL (C)
4] 4-877-137-00 WINDOW (A), INDICATOR id
42 4-877-140-00 HOLDER (B), LED
43 @.4-877-141-00 HOUSE, LE
44 4.877-142-00 HOLDER, D
45 6:4-877-144-00 PLATE (8)
