Sony TA-E1000ESD Operating Instructions

Oto) al al=reit(e) als

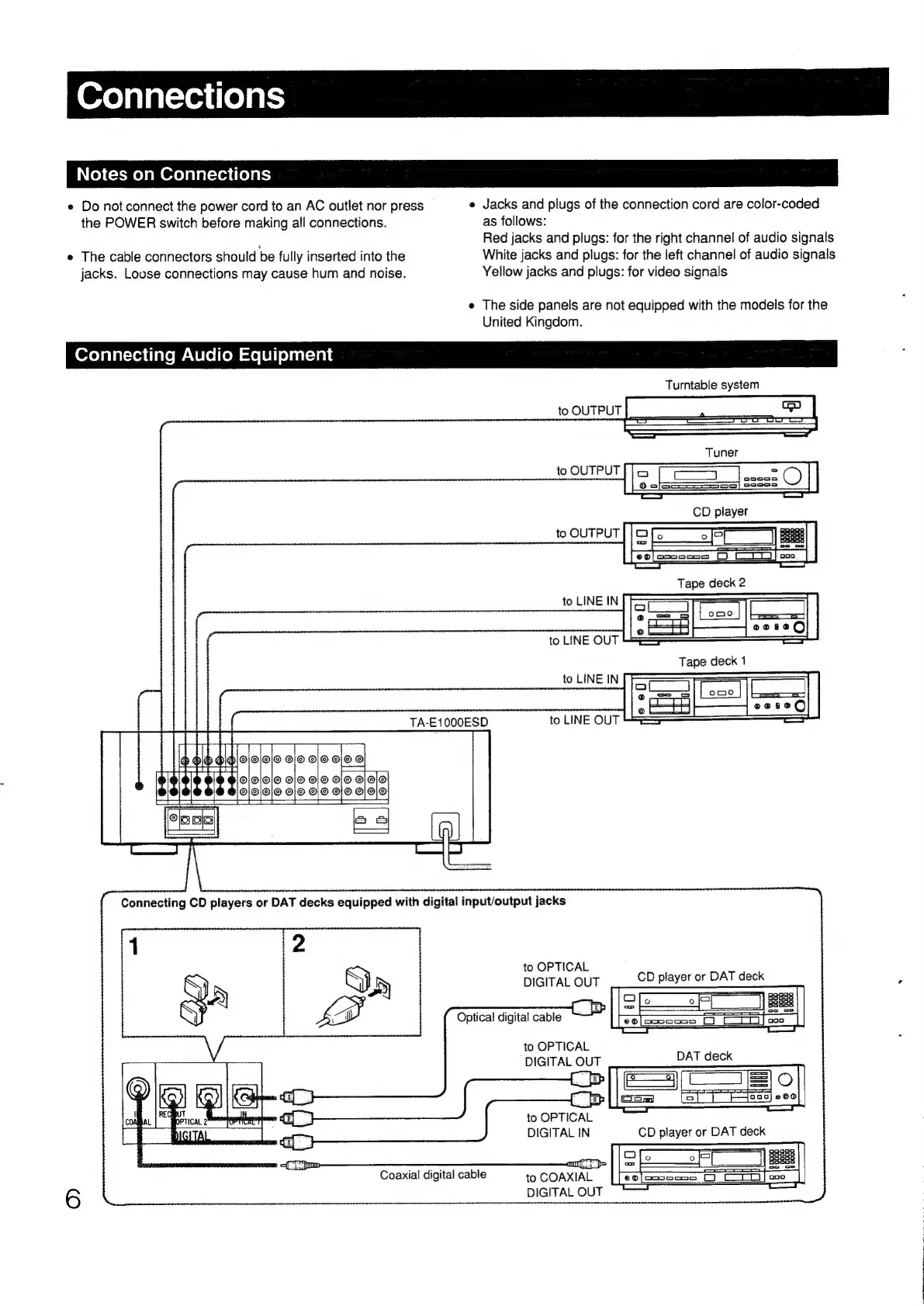

Notes on Connections
e Do not connect the power cord to an AC outlet nor press e Jacks and plugs of the connection cord are color-coded
the POWER switch before making all connections. as follows:
Red jacks and plugs: for the right channel of audio signals
e The cable connectors should be fully inserted into the White jacks and plugs: for the left channel of audio signals
jacks. Loose connections may cause hum and noise. Yellow jacks and plugs: for video signals
e The side panels are not equipped with the models for the
United Kingdom.
Ofeyalal=readiarem-Neleifom eel e)iar-val
Turntable system
OUTRUT |e
[|
Tuner
to
OUTPUT
[To
:
Beant
ees
O
||
CD player
to OUTPUT
Tape deck 2
A
ae |=
ooge
to LINE OUT LES =
Tape deck 1
to LINE IN
(eee
eoeniieneenceesel(f(E)
@®
[|
TA-E1000ESD
to
LINE
OUT
[ee
oars
db
labs
Q|O|O|© O|© O©/© O|© ©
to OPTICAL
DIGITAL OUT
Optical digital cable
to OPTICAL
DIGITAL OUT
Cp
to OPTICAL
DIGITAL IN
3517
Coaxial digital cable to COAXIAL
DIGITAL OUT

Sony TA-E1000ESD Specifications

General

Total Harmonic Distortion	0.005%
Signal to Noise Ratio	110dB
Release Year	1990
Input Sensitivity	150mV
Input Impedance	50k ohms
Output	2V (Pre out)
Output Impedance	1 kOhm
Frequency Response	2Hz-200kHz
