KV-14M1/14T1

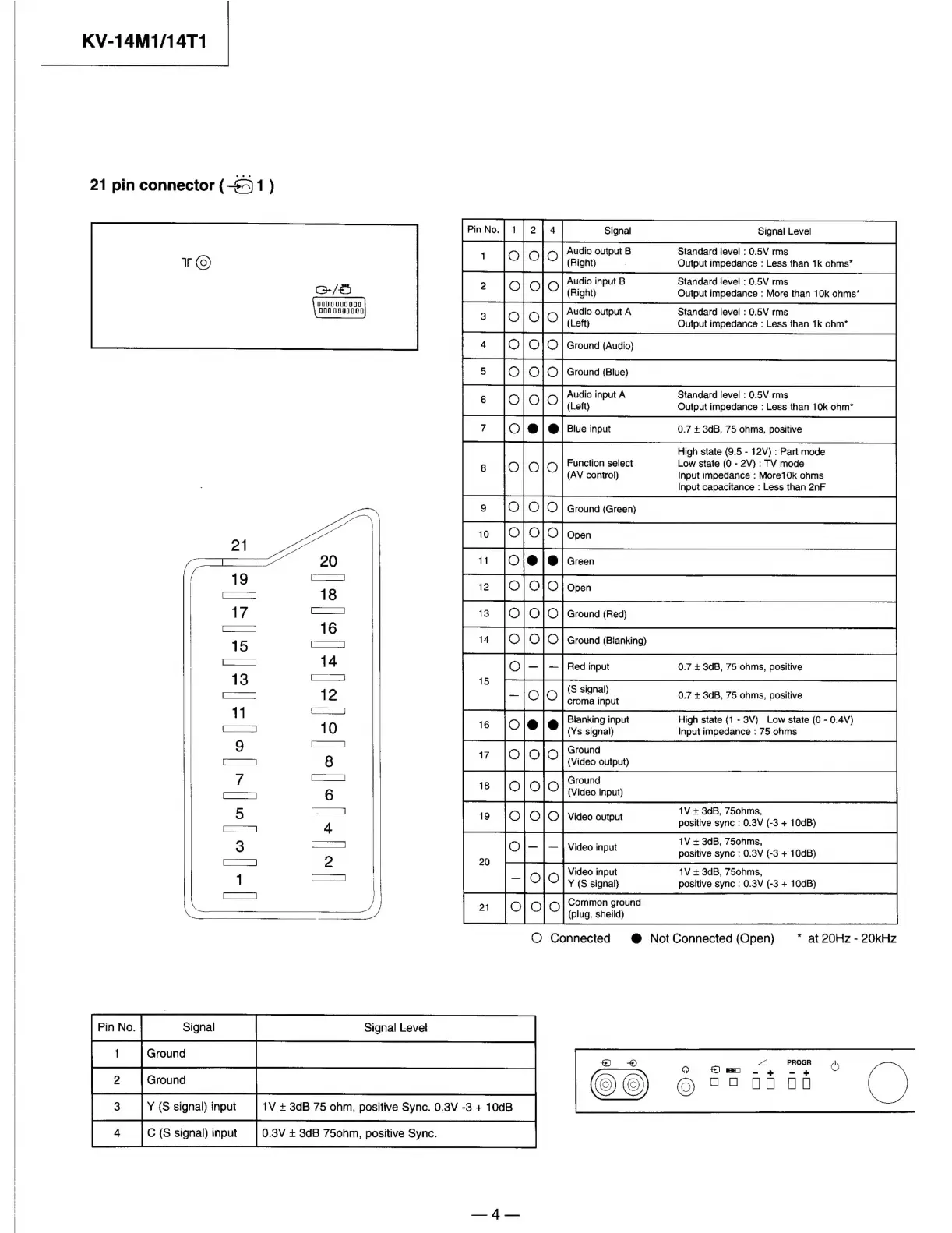

21 pin connector (-$4)1 )
G/£5
D00c000000 Gy
ODD 0000000 lo
© Connected
C2
a
es
[+ [ete coanina [0av= 886m pate Sre
Signal Signal Level
Audio Sais B Standard level : 0.5V rms
(Right) Output impedance : Less than 1k chms*
Audio input B Standard level : 0.5V rms
(Right) Output impedance : More than 10k ohms*
Audio output A Standard level : 0.5V rms
(Left) Output impedance : Less than 1k ohm’
Ground (Audio)
G)
round (Blue)
udio input A Standard level : 0.5V rms
Left) Output impedance : Less than 10k ohm”
Blue input 0.7 + 3dB, 75 ohms, positive
sie
High state (9.5 - 12V) : Part mode
Low state (0 - 2V) : TV mode
Input impedance : More10k ohms
Input capacitance : Less than 2nF
Function select
(AV control)
Ground (Green)
reen
Ground (Red)
Ground (Blanking)
Red input 0.7 + 3dB, 75 ohms, positive
(S signal)
0.7 + 3dB, 75 onms, positive
croma input
Blanking input
(Ys signal)
High state {1 - 3V) Low state (0 - 0.4V)
Input impedance : 75 ohms
Ground
(Video output)
Ground
(Video input)
1V + 3dB, 75o0hms,
positive syne : 0.3V (-3 + 10dB)
1V + 3dB, 75ohms,
positive sync : 0.3V (-3 + 10dB)
1V + 3dB, 75ohms,
positive sync : 0.3V (-3 + 10dB)
Video output
Video input
Video input
Y (S signal}
Common ground
(plug, sheild)
@ Not Connected (Open)
* at 20Hz - 20kHz
