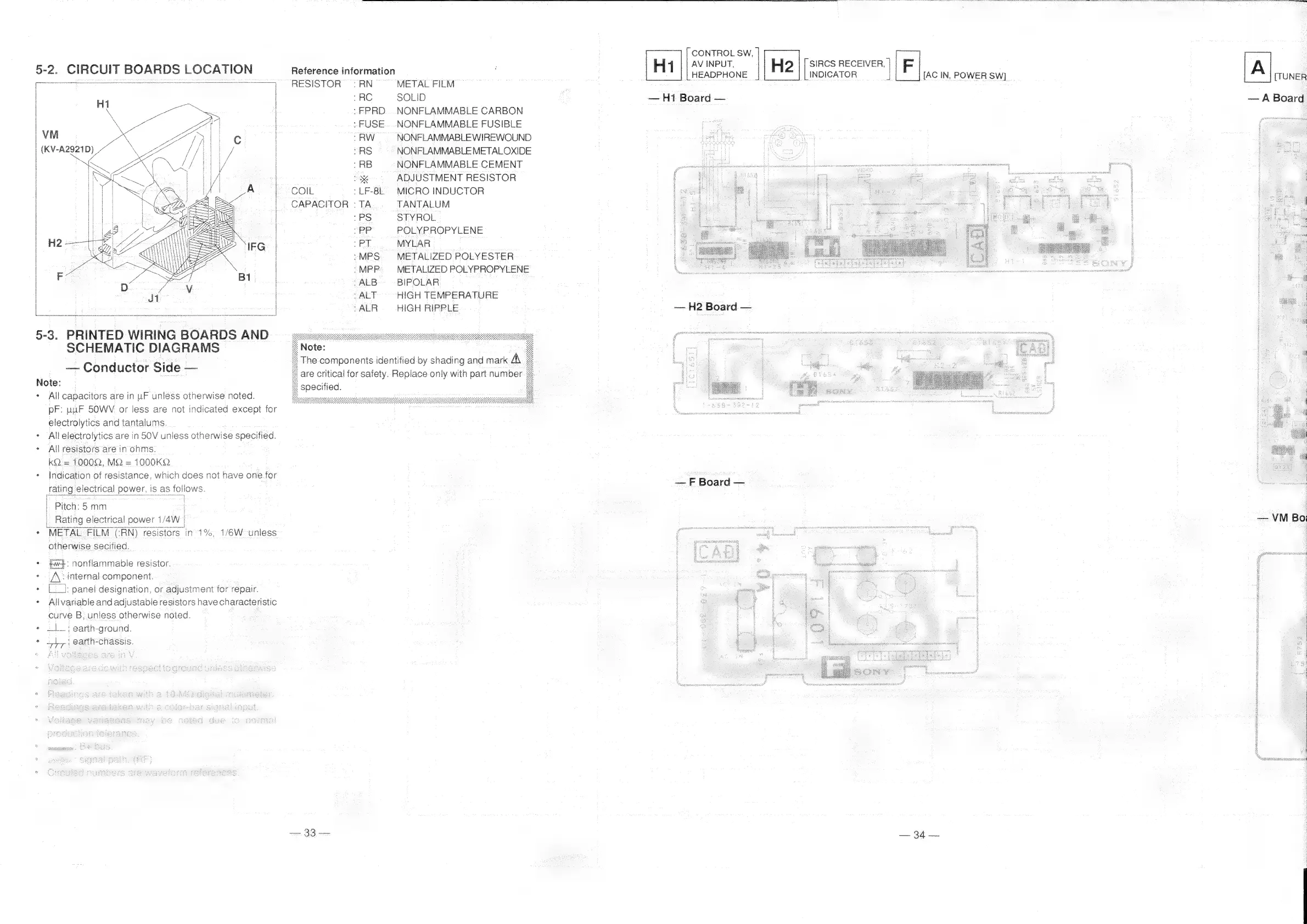

5-2. CIRCUIT BOARDS LOCATION
{
|
VM
“i
x
i
| H2 SS IG |
| ie |
F
Bi
| D of ee
Jt
5-3. PRINTED WIRING BOARDS AND
SCHEMATIC DIAGRAMS
— Conductor Side —
Note:
¢ All capacitors are in uF unless otherwise noted.
pF: uuF 50WV or less are not indicated except for
electrolytics and tantalums.
¢ All electrolytics are in 50V unless otherwise specified.
* All resistors are in ohms.
kKQ = 10002, MQ = 1000KQ
* Indication of resistance, which does not have one for
rating electrical power, is as follows.
| Pitch: 5 mm |
| Rating electrical power 1/4W |
» METAL FILM (RN) resistors in 1%, 1/6W unless
otherwise secified.
+ fe}: nonflammable resistor.
+ /\: internal component.
> (_]: panel designation, or adjustment for repair.
* Allvariable and adjustable resistors have characteristic
curve B, unless otherwise noted.
¢ _|_: earth-ground.
* 1: earth-chassis.
Reference information
RESISTOR : RN METAL FILM
RC SOLID
>FPRD NONFLAMMABLE CARBON
>FUSE.. NONFLAMMABLE FUSIBLE
> RW NONFLAMMABLE WIREWOUND
2RS NONFLAMMABLE METAL OXIDE
RB NONFLAMMABLE CEMENT
xX ADJUSTMENT RESISTOR
COIL :LF-8L. MICRO INDUCTOR
CAPACITOR : TA TANTALUM
:PS STYROL
:PP POLYPROPYLENE
PE MYLAR
>MPS METALIZED POLYESTER
:-MPP. METALIZED POLYPROPYLENE
: ALB BIPOLAR
>: ALT HIGH TEMPERATURE
‘ALR HIGH RIPPLE
ote
he components identified by shading and mark A
re critical for safety. Replace only with part number
pecified.
— 33 —
CONTROL SW,
Hi AV INPUT,
HEADPHONE
— H1 Board —
‘[re||
SIRCS RECEIVER,
INDICATOR
| Gi [AC IN, POWER SW]
— H2 Board —
