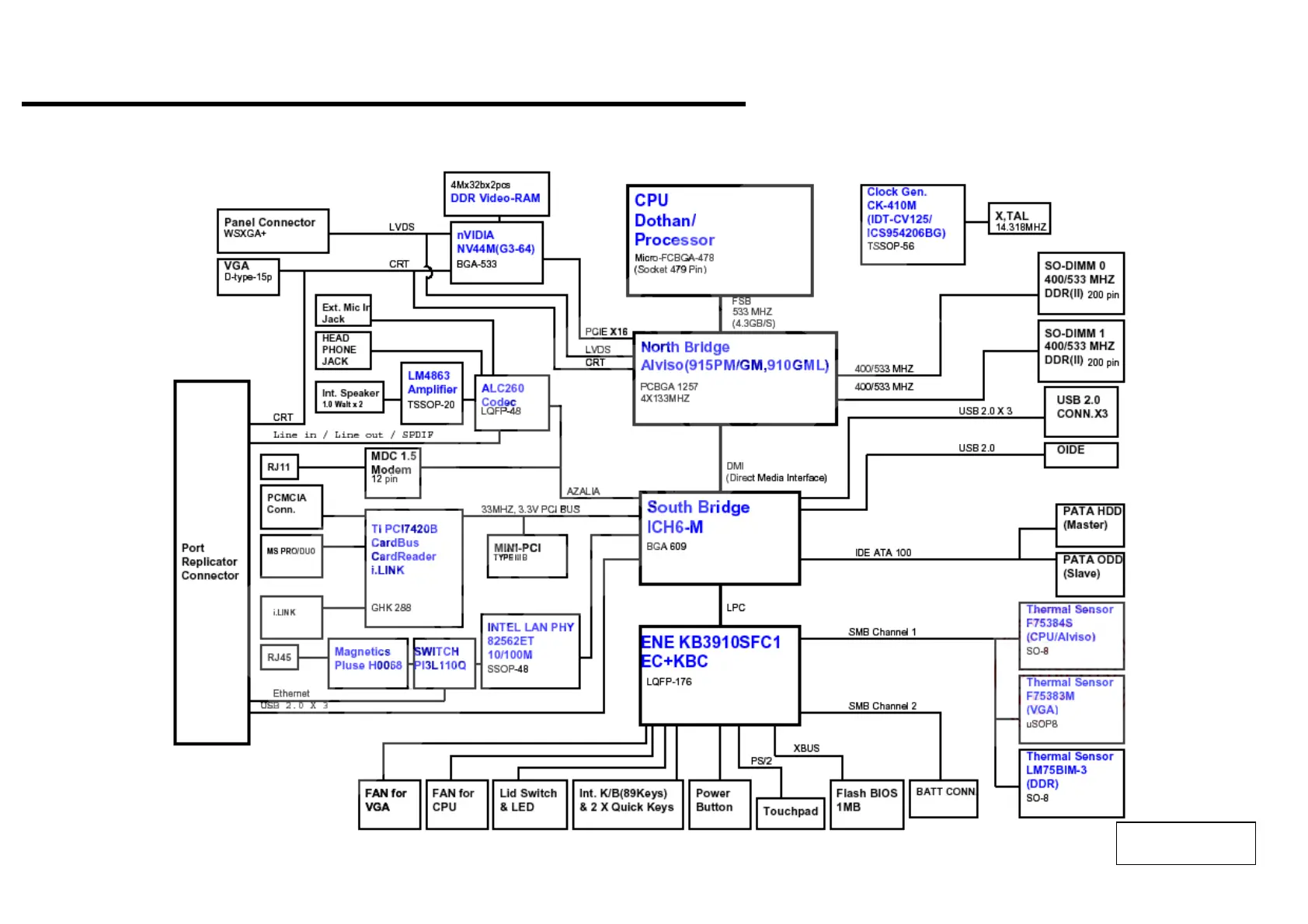

CHAPTER2.
BLOCK DIAGRAM
2-1.VGN-FS series
Sony Confidential
2-1
VGN-FS53B/FS33B/FS23B
/
FS43 (J)
VGN-FS850P/FS850/FS840/FS830/FS810/FS875P/FS815F/FS810FP/FS812F/FS850Q/FS830Q/FS8900P*/FS8900* (AM)
FS495VP/FS415M/FS415E/FS415MR/FS415S
FS415B (EU)
VGN-FS48C/FS48GP/FS48SP/FS48L (AO)
