Sony VPL-FHZ55 Service Manual

1-11 (E)
VPL-FHZ55

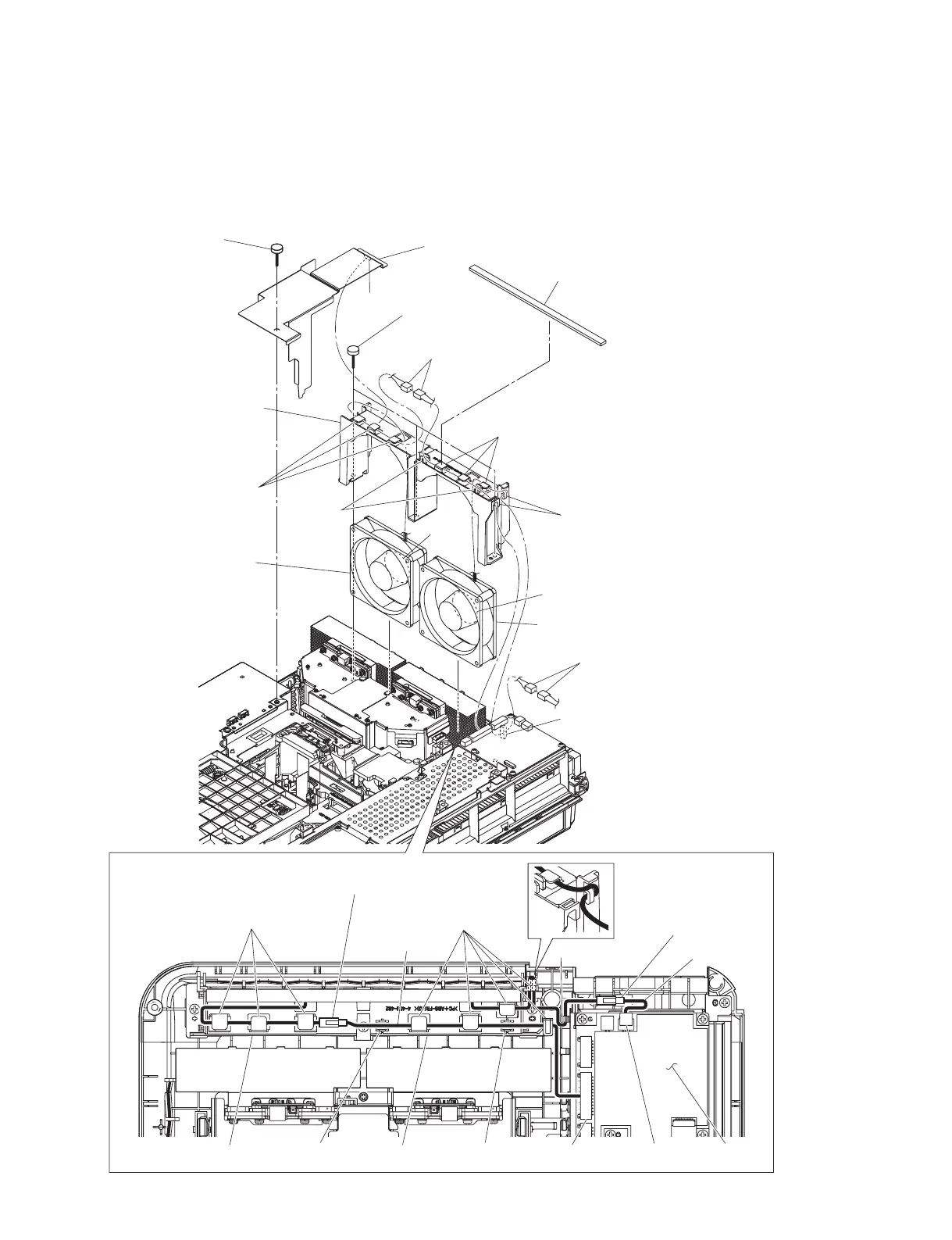

1-4-5. DC Fan (For Exhaust)
n
When attaching the DC fans, place them with the label side facing the direction as shown in the illustra-
tion.
3 Cushion (EX)
4 Relay connector
5 Relay connector
6 Wire saddle
Hooks of fan holder (EX)
Hooks of fan holder (EX)
Hooks of fan holder (EX)
Guide hooks
8 Fan holder (EX)
!/
DC fan
9 DC fan
Label side
Label side
5 Wire saddle
6 Wire saddle
Harness
CN2604 GB boardCN2603DC fan DC fan
4 Relay connector
Guide hookGuide hook
Harness
7 Three screws
(BVTP3 x 12)
Hole
1 Screw
(PSW3 x 8)
2 Sheet (EX)
Hooks of fan holder (EX)
Hooks of fan holder (EX)

Sony VPL-FHZ55 Specifications

General

Native aspect ratio	16:9
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	8000:1
Screen size compatibility	40 - 600 \
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	30 °
Focus	Manual
Throw ratio	1.4 - 2.3:1
Zoom capability	Yes
Focal length range	- mm
Vertical lens shift range	- %
Service life of light source	20000 h
3D	No
Supported video modes	480p, 576p, 720p, 1080i, 1080p
Analog signal format system	NTSC 3.58, NTSC 4.43, PAL, PAL 60, PAL M, PAL N, SECAM
Supported graphics resolutions	1920 x 1200 (WUXGA)
BNC input ports	5
Serial interface type	RS-232
USB 2.0 ports quantity	0
Noise level	40 dB
Noise level (economic mode)	35 dB
On Screen Display (OSD) languages	ARA, CHI (SIMPL), CHI (TR), DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, IND, ITA, JPN, KOR, NOR, POL, POR, RUS, SWE, THA, TUR, VIE
Placement	Desktop
Product type	Large venue projector
Product color	White
Power source	DC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.3 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	35 - 85 %
Cables included	AC
Remote control type	IR

Weight and Dimensions

Depth	487 mm
Width	390 mm
Height	134 mm
Weight	11000 g
