Sony Walkman WM-EX511 - MECHANISM SECTION 1 (MT-WMEX911-60); HEAD, MAGNETIC (PLAYBACK)

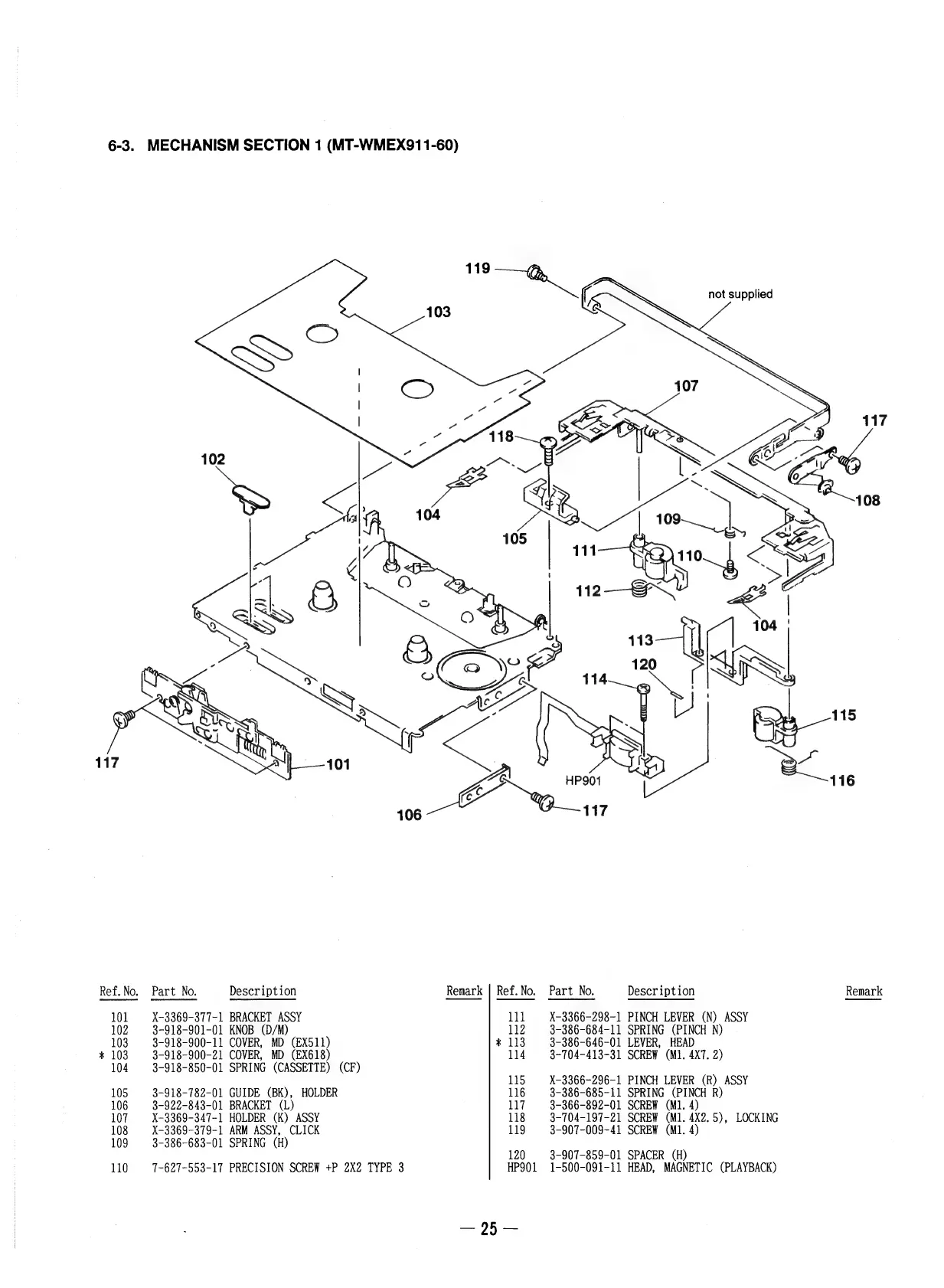

6-3. MECHANISM SECTION 1 (MT-WMEX911-60)
117
*
Part No.
X-3369-377-1
3-918-901-01
3-918-900-11
3-918-900-21
3-918-850-01
3-918-782-01
3-922-843-01
X-3369-347-1
X-3369-379-1
3-386-683-01
7-627-553-17
Description
BRACKET ASSY
KNOB (D/M)
COVER, MD (EX511)
COVER, MD (EX618)
SPRING (CASSETTE) (CF)
GUIDE (BK), HOLDER
BRACKET (L)
HOLDER (K) ASSY
ARM ASSY, CLICK
SPRING (H)
PRECISION SCREW +P 2X2 TYPE 3
Remark | Ref. No.
111
112
* 113
114
115
116
117
118
119
120
HP901
Part No.
X-3366-298-1
3-386-684-11
3-386-646-01
3-704-413-31
X-3366-296-1
3-386-685-11
3-366-892-01
3-704-197-21
3-907-009-41
3-907-859-01
1-500-091-11
not supplied
Description
PINCH LEVER (N) ASSY
SPRING (PINCH N)
LEVER, HEAD
SCREW (M1. 4X7. 2)
PINCH LEVER (R) ASSY
SPRING (PINCH R)
SCREW (M1. 4)
SCREW (M1. 4X2.5), LOCKING
SCREW (M1. 4)
SPACER (H)
HEAD, MAGNETIC (PLAYBACK)
Remark
