NOTE:
The mechanical parts with no reference
number in the exploded views are not
supplied.
‘The construction. parts of an assembled
Part are indicated with a collation num-
ber in the remark column.
Items marked “*" are not stocked since
they .are seldom required for routine
service. Some delay should be antici-
pated when ordering these items.
(1)
RXEX P SES

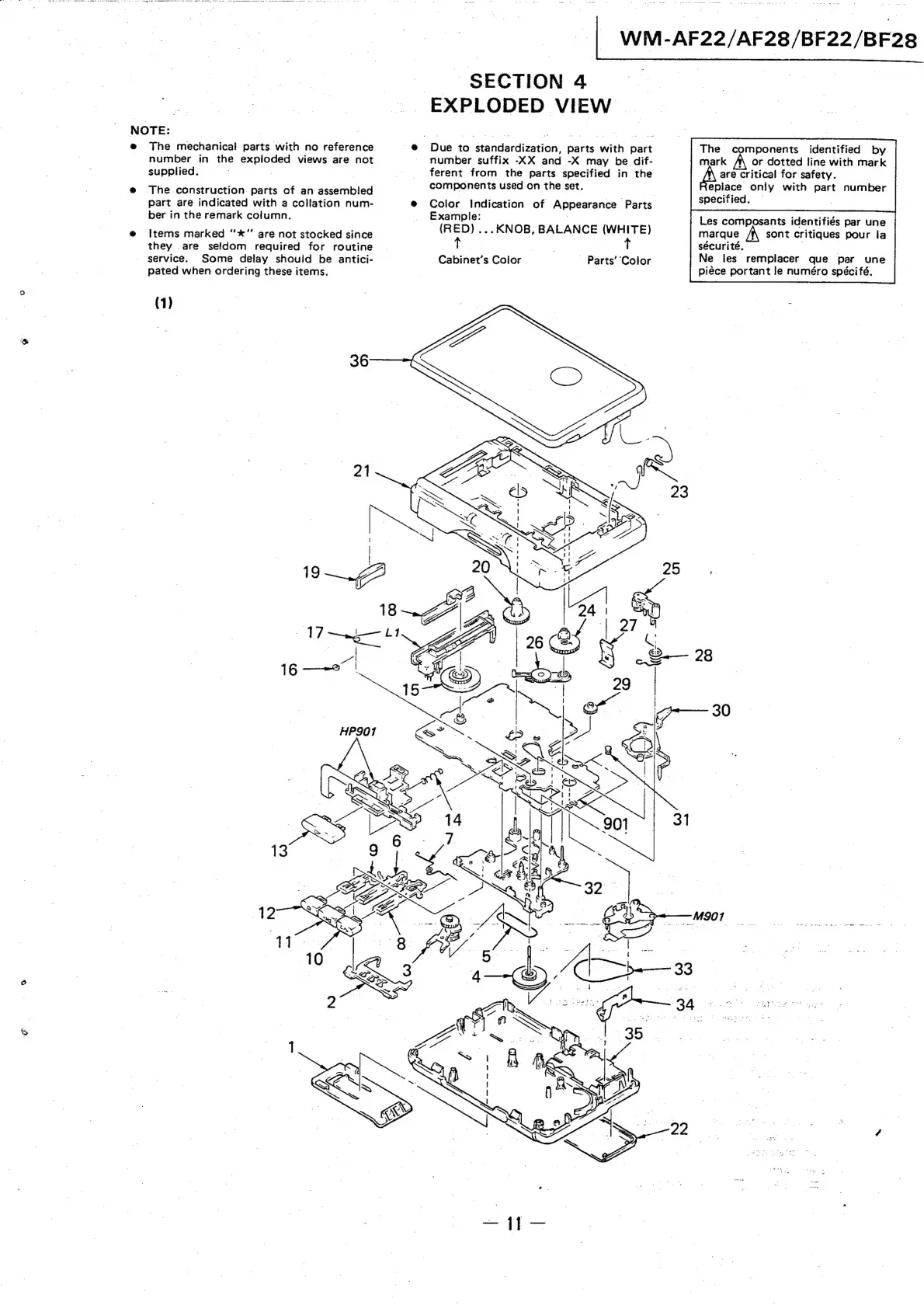

SECTION 4
EXPLODED VIEW _
Due to standardization, parts with part
number suffix -XX and -X may be dif-
ferent from the parts specified in the
components used on the set.
Color Indication of Appearance Parts
Example:
(RED)... KNOB, BALANCE (WHITE)
7. T
Cabinet’s Color - Parts’ ‘Color.
y
b
\:
/
\
.
WM -AF22/AF28/BF22/BF28
The components identified by
mark or dotted line with mark
are critical for safety.
epiace only with part number
specified.
Les composants identifiés par une
marque sont critiques pour la
sécurité. .
Ne ies remplacer que par une
piece portant le numéro spécifé.
