10
US

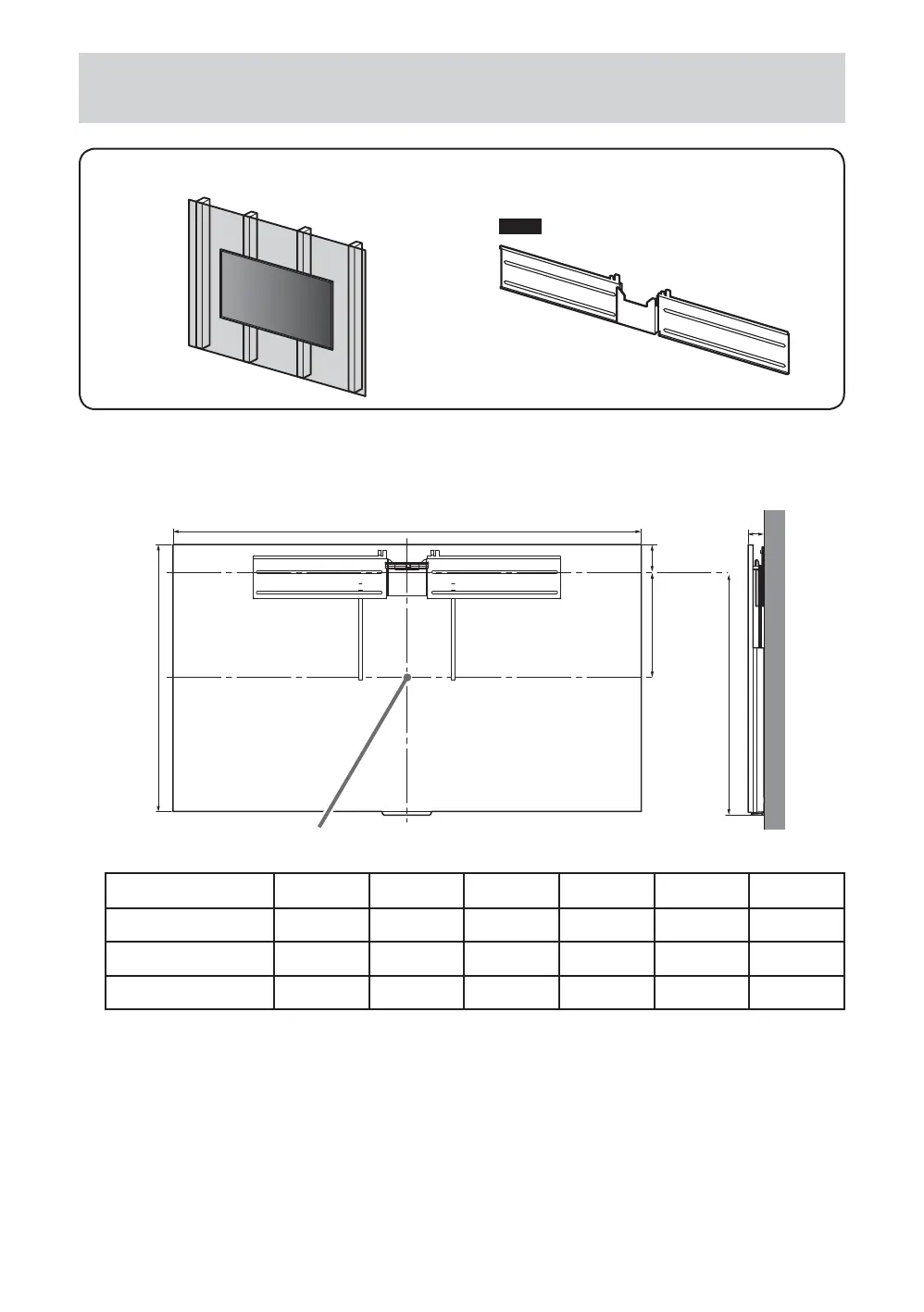

Attaching the Lateral Shift Bracket to the Dry Wall with
Studs
Dry wall with studs
WM4
1 Decide on the installation location.
Make sure that the wall has enough space for the TV and is capable of supporting a weight of at
least four times that of the TV.
A
B
C
D
F
E
*
XBR
ABCDEF
75X940D 1,672 960 387 871 59 90
65X930D 1,458 839 333 757 43 82
55X930D 1,239 717 271 634 43 83
TV installation dimensions table (mm)
(* Screen center point)
Figures in the table may differ slightly depending on the installation.
To Next Page
