5
Overview
Location of Parts and Operation

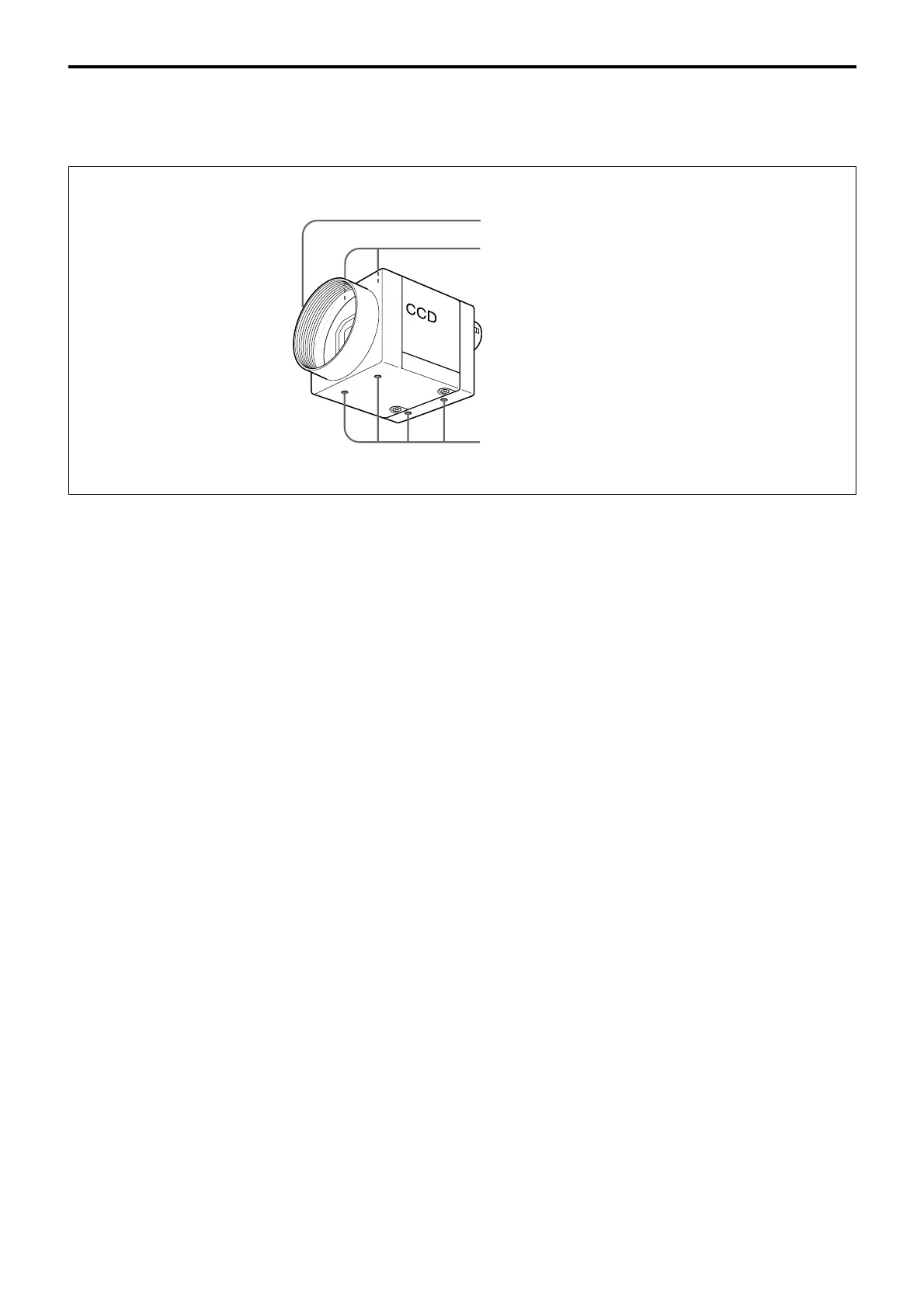

Front/Top/Bottom
1 Lens mount (C-mount)
Attach the VCL-50Y-M C-mount lens or other optical
equipment.
2 Reference holes (Top)
These precision screw holes are for locking the camera
module. Locking the camera module into these holes
secures the optical axis alignment.
3 Reference holes/Tripod screw holes (bottom)
These precision screw holes are for locking the camera
module. Locking the camera module using these holes
secures the optical axis alignment.
You can install the camera on a tripod. To install on a
tripod, you will need to install the VCT-333I tripod
adaptor using the reference holes on the bottom of the
camera.
1
Lens mount (C-mount)
2 Reference holes
3 Reference holes/Tripod screw holes
