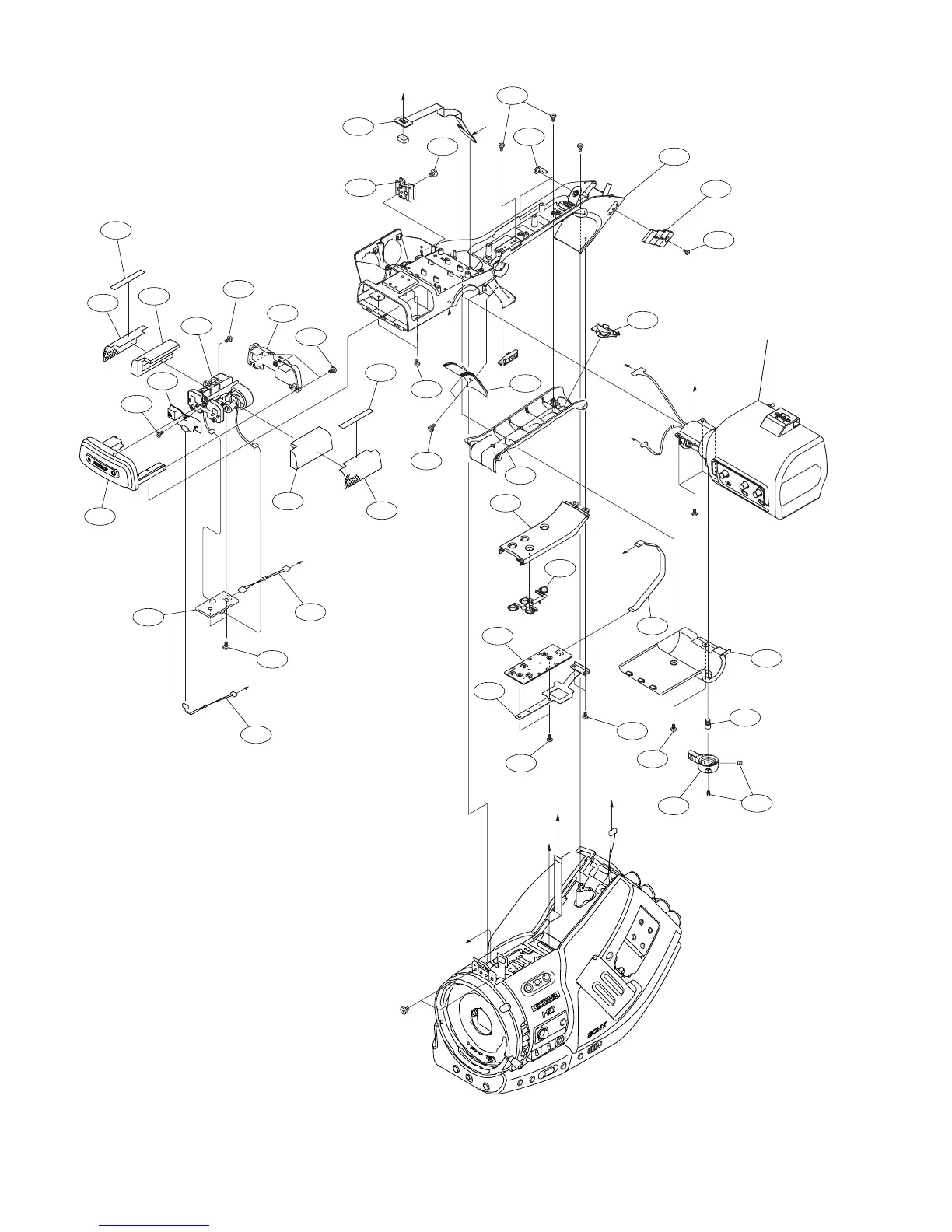

Sony XDCAM EX PMW-EX3 User Manual

4-4
PMW-EX3
Handle Block 2
To IF-1069
board (CN5)
To KSW-54
board (CN7)
To KSW-54
board (CN2)
To KSW-54
board (CN1)
To KSW-54
board (CN300)
To IF-1069
board (CN4)
To LED-469
board (CN2)
A
A
C
C
B
B
VF FRONT
125
127
111
110
124
115
113
133
114
107
116
128
128
104
105
103
113
120
112
112
112
112
112
109
108
129
122
123
101
119
112
102
117
131
111
111
121
126
106
118
112
130
B2.6 x 6
B2.6 x 6
B2.6 x 6

Sony XDCAM EX PMW-EX3 Specifications

General

Effective Pixels	1920 x 1080
Optical Zoom	14x
Shutter Speed	1/2 to 1/2000 sec
Focus	Auto/Manual
Recording Format	MPEG-2 Long GOP
Media Type	SxS Memory Card
Image Sensor	3x 1/2-inch Exmor CMOS
Lens	Fujinon HD Zoom Lens
ND Filter	1/4, 1/16, 1/64
Viewfinder	0.54" Color LCD
LCD Screen	3.5-inch color LCD
Audio Recording	LPCM 16-bit, 48 kHz, 2 channels
Connectivity	Composite, USB, FireWire
Weight	2.8 kg (6.17 lbs)
