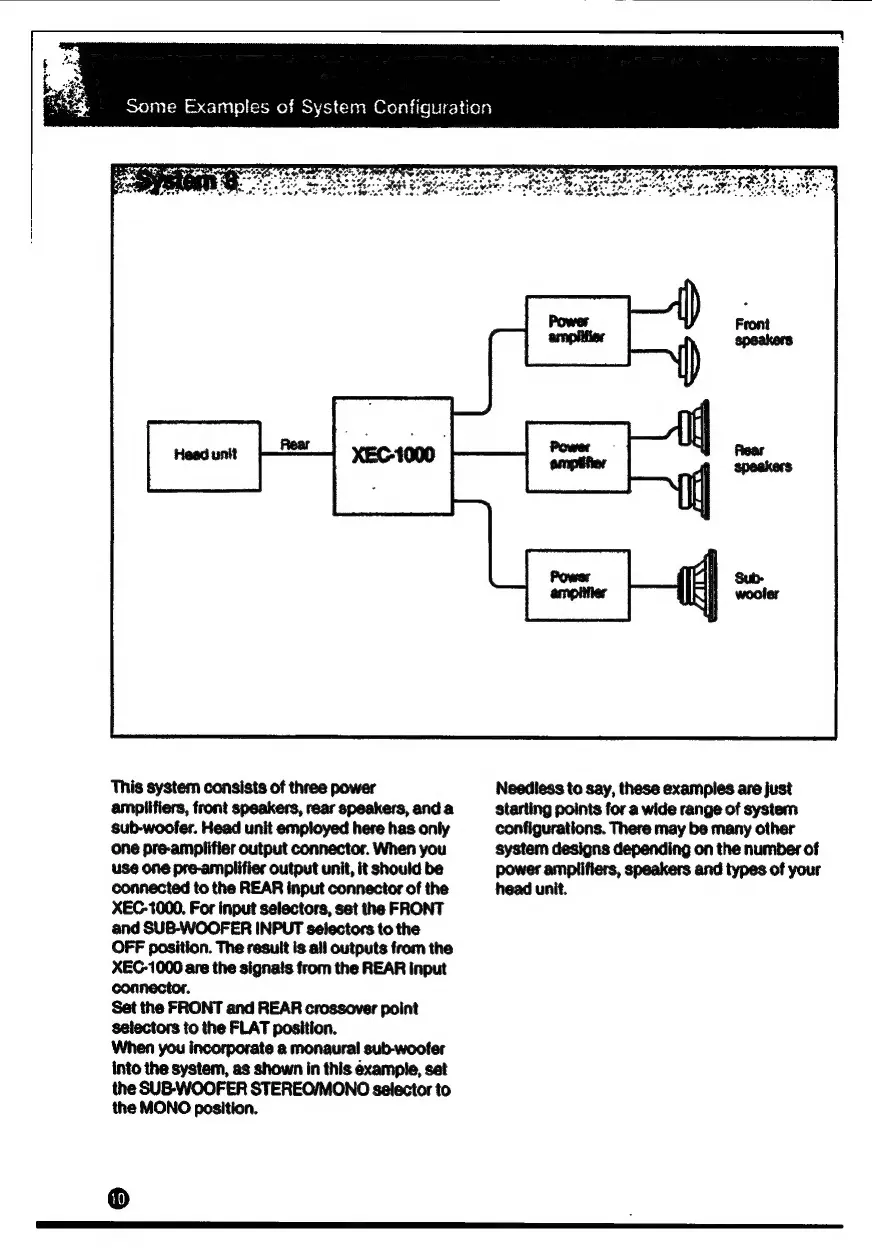

This

system

consists

of

three

power

amplifiers,

front

speakers,

rear

speakers,

and

a

sub-woofer.

Head

unit

employed

here

has

only

one

pre-amplifier

output

connector.

When

you

use

one

pre-amplifier

output

unit,

it

should

be

connected

to

the

REAR

input

connector

of

the

XEC-1000.

For

input

selectors,

set

the

FRONT

and

SUB-WOOFER

INPUT

selectors

to

the

OFF

position.

The

result

is

all

outputs

from

the

XEC-1000

are

the

signats

from

the

REAR

input

connector.

Set

the

FRONT

and

REAR

crossover

point

selectors

to

the

FLAT

position.

When

you

incorporate

a

monaural

sub-woofer

into

the

system,

as

shown

in

this

example,

set

the

SUB-WOOFER

STEREO/MONO

selector

to

the

MONO

position.

®

Needless

to

say,

these

examples

are

just

starting

points

for

a

wide

range

of

system

configurations.

There

may

be

many

other

system

designs

depending

on

the

number

of

power

amplifiers,

speakers

and

types

of

your

head

unit.
