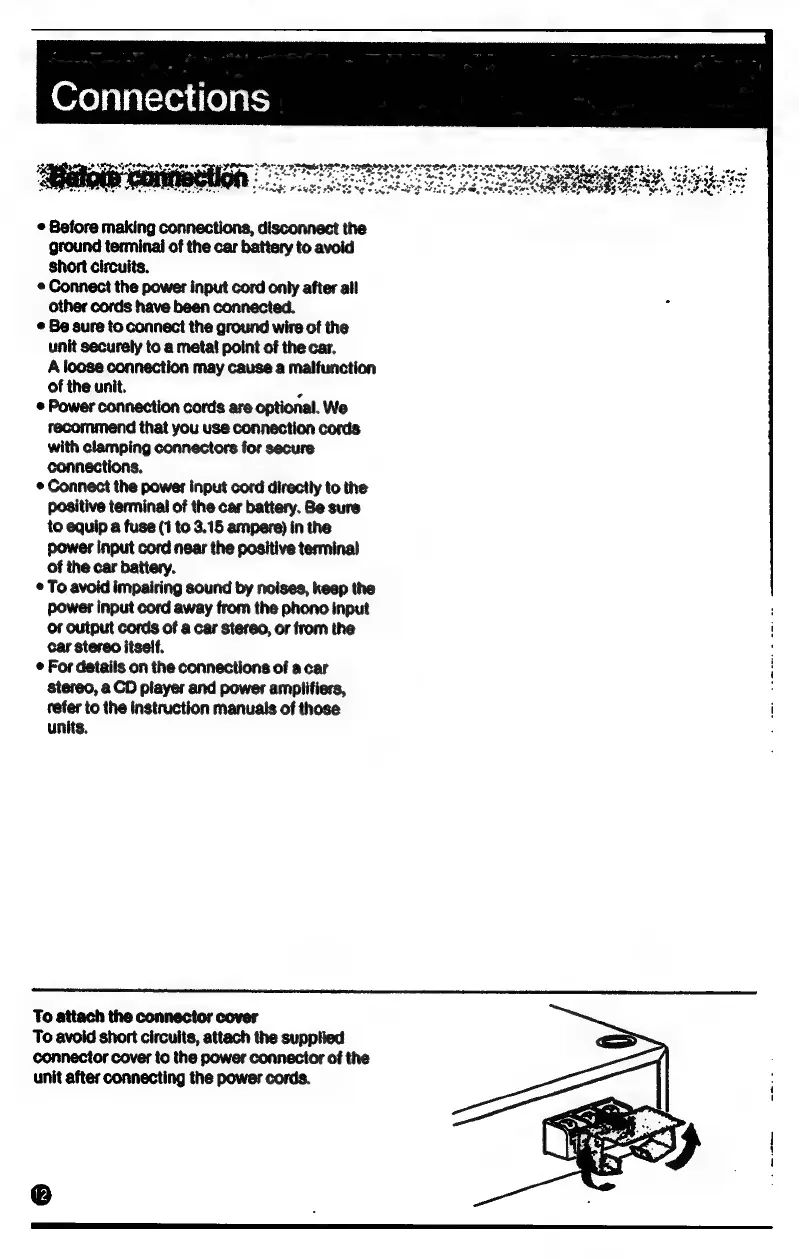

Before

making

connections,

disconnect

the

ground

terminal

of

the

car

battery

to

avoid

short

circuits.

«

Connect

the

power

input

cord

only

after

all

other

cords

have

been

connected.

©

Be

sure

to

connect

the

ground

wire

of

the

unit

securely

to

a

metal

point

of

the

car.

A

loose

connection

may

cause

a

malfunction

of

the

unit.

:

©

Power

connection

cords

are

optional.

We

recommend

that

you

use

connection

cords

with

clamping

connectors

for

secure

connections.

¢

Connect

the

power

input

cord

directly

to

the

positive

terminal

of

the

car

battery.

Be

sure

to

equip

a

fuse

(1

to

3.15

ampere)

in

the

power

Input

cord

near

the

positive

terminal

of

the

car

battery.

¢

To

avoid

impairing

sound

by

noises,

keep

the

power

input

cord

away

from

the

phono

input

:

of

output

cords

of

a

car

stereo,

or

from

the

car

stereo

itself.

:

¢

For

details

on

the

connections

of

acar

stereo,

a

CD

player

and

power

amplifiers,

refer

to

the

instruction

manuals

of

those

i

units.

To

attach

the

connector

cover

To

avoid

short

circuits,

attach

the

supplied

connector

cover

to

the

power

connector

of

the

unit

after

connecting

the

power

cords.
