Test and Calibration Repair Instruction
1277-2384 Rev 3
î Sony Mobile Communications AB â Company Internal
4(8)
Go/NoGo Testing
1.2 Direct Line
The following equipment has to be used:
x RF Test Cable Flexible 1M
x RF Probe
x USIM Card, instrument specific

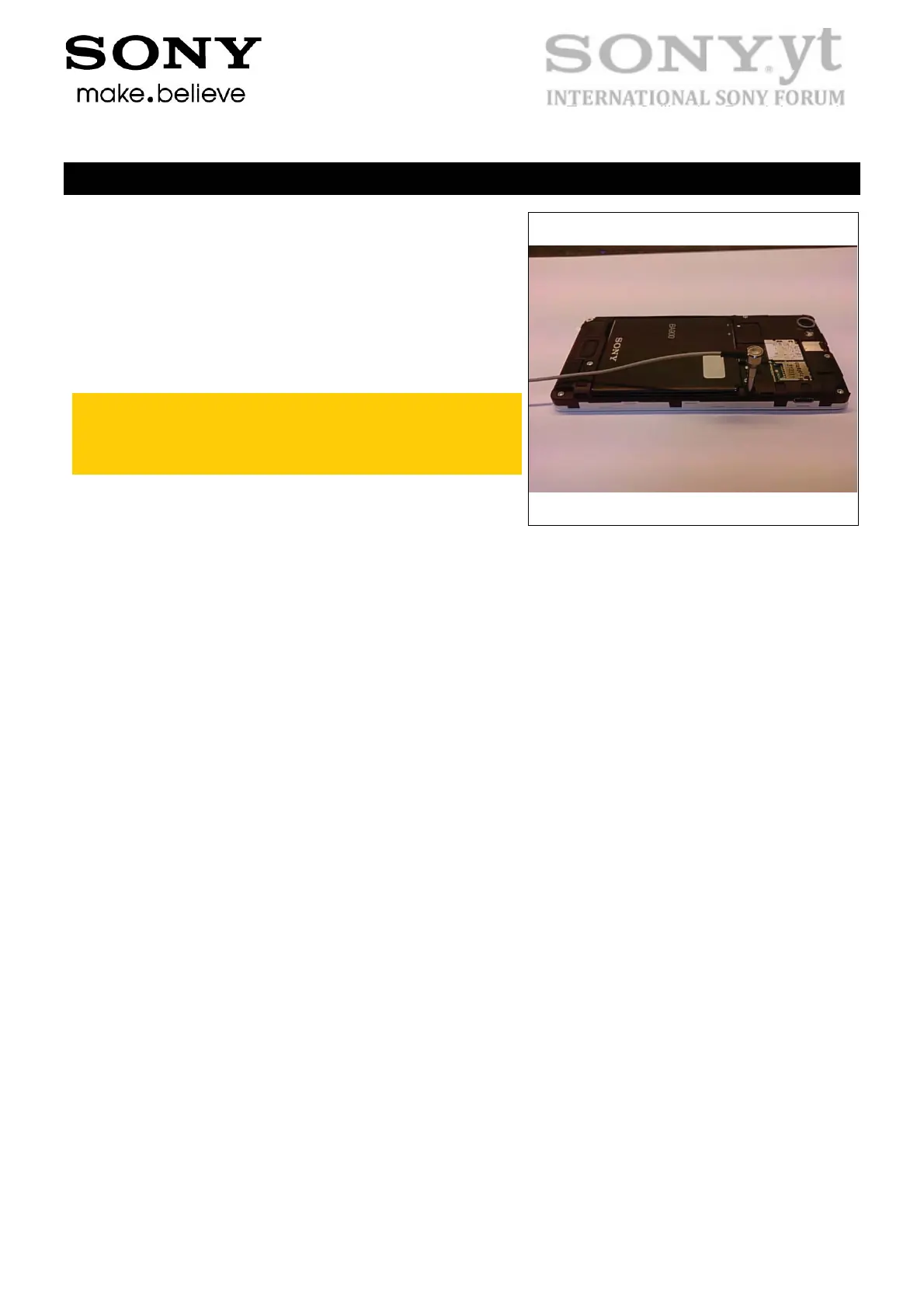

Connect the RF Probe as shown in the adjacent picture.
To get access to the RF connector on the PBA, refer to
1277-1343: C1904, C1905, C2004, C2005 Mechanical
Working Instructions, Chapter 3.1!
To Next Page
