Sony Xperia Z1 Working Instructions

Working Instruction (mech)
1277-9813 Rev 3

Sony Mobile Communications AB – Company Internal
69(82)
Replacement

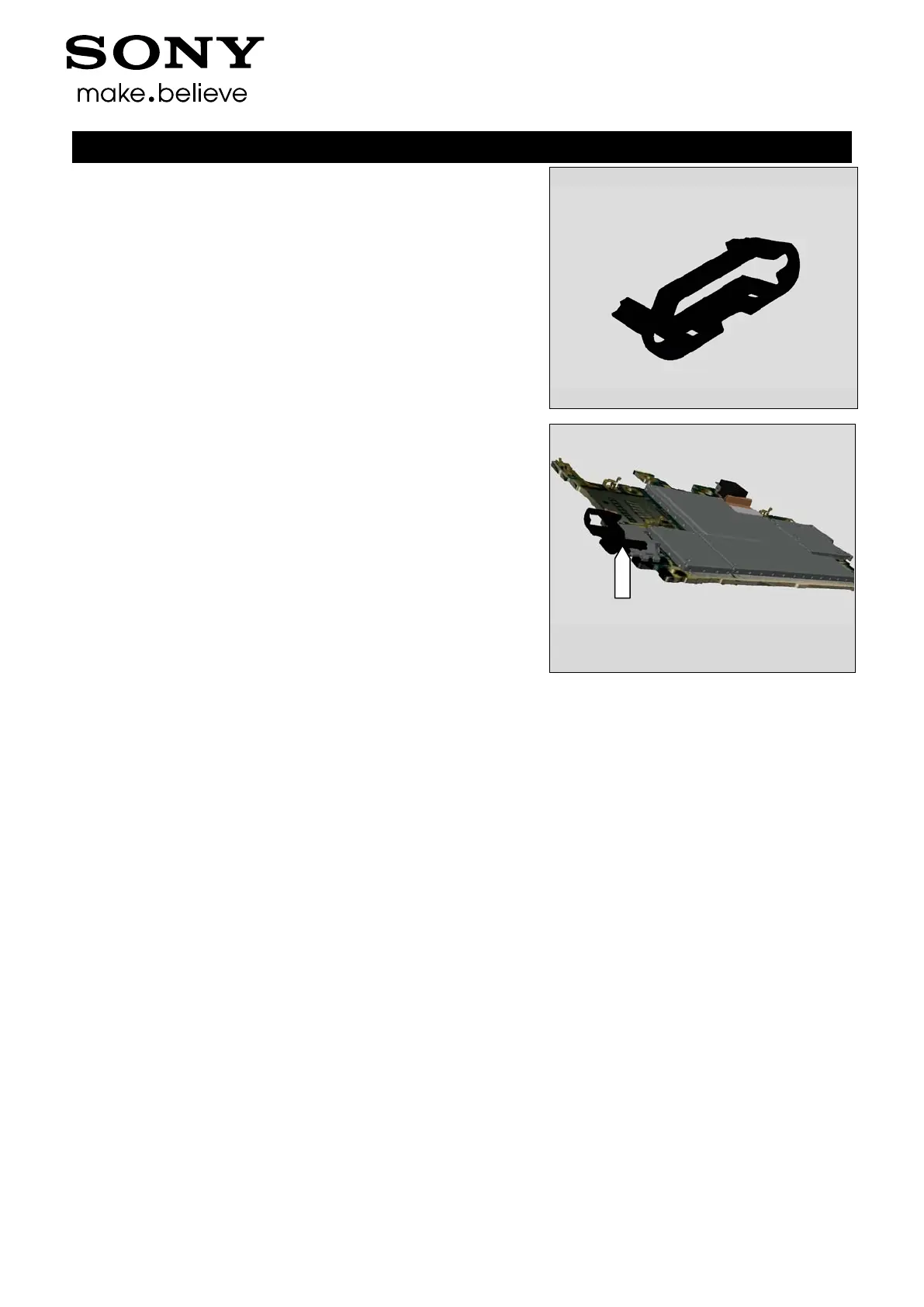

4.56 USB Holder
Follow the 3.1-3.7 Disassembly instructions!
Carry out the Removal as described below!
Prepare a new USB Holder!
Carry out the Installation as described below!
Follow the 5.4 - 5.11 Reassembly instructions!
REMOVAL
Detach to remove the USB Holder with fingers
INSTALLATION
Place a new USB Holder with fingers.

Sony Xperia Z1 Specifications

General

RAM	2 GB
Front Camera	2 MP
Battery	Non-removable Li-Ion 3000 mAh
Operating System	Android 4.2 (Jelly Bean), upgradable to 5.1 (Lollipop)
Weight	170 g (6.00 oz)
SIM	Micro-SIM
WLAN	Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, DLNA, hotspot
Bluetooth	4.0, A2DP, aptX
GPS	Yes, with A-GPS, GLONASS
NFC	Yes
Sensors	Accelerometer, gyro, proximity, compass, barometer
Display	5.0 inches, 1080 x 1920 pixels
Processor	Qualcomm MSM8974 Snapdragon 800
Storage	16 GB
Main Camera	20.7 MP
Dimensions	144 x 74 x 8.5 mm
Water Resistance	IP58 dust proof and water resistant over 1.5 meter and 30 minutes
Radio	Stereo FM radio with RDS
USB	microUSB 2.0 (MHL TV-out)
