Sony Xperia ZL User Manual

Working Instruction (mech)
1271-7733 Rev 2

Sony Mobile Communications AB – Company Internal
48(76)
Disassembly

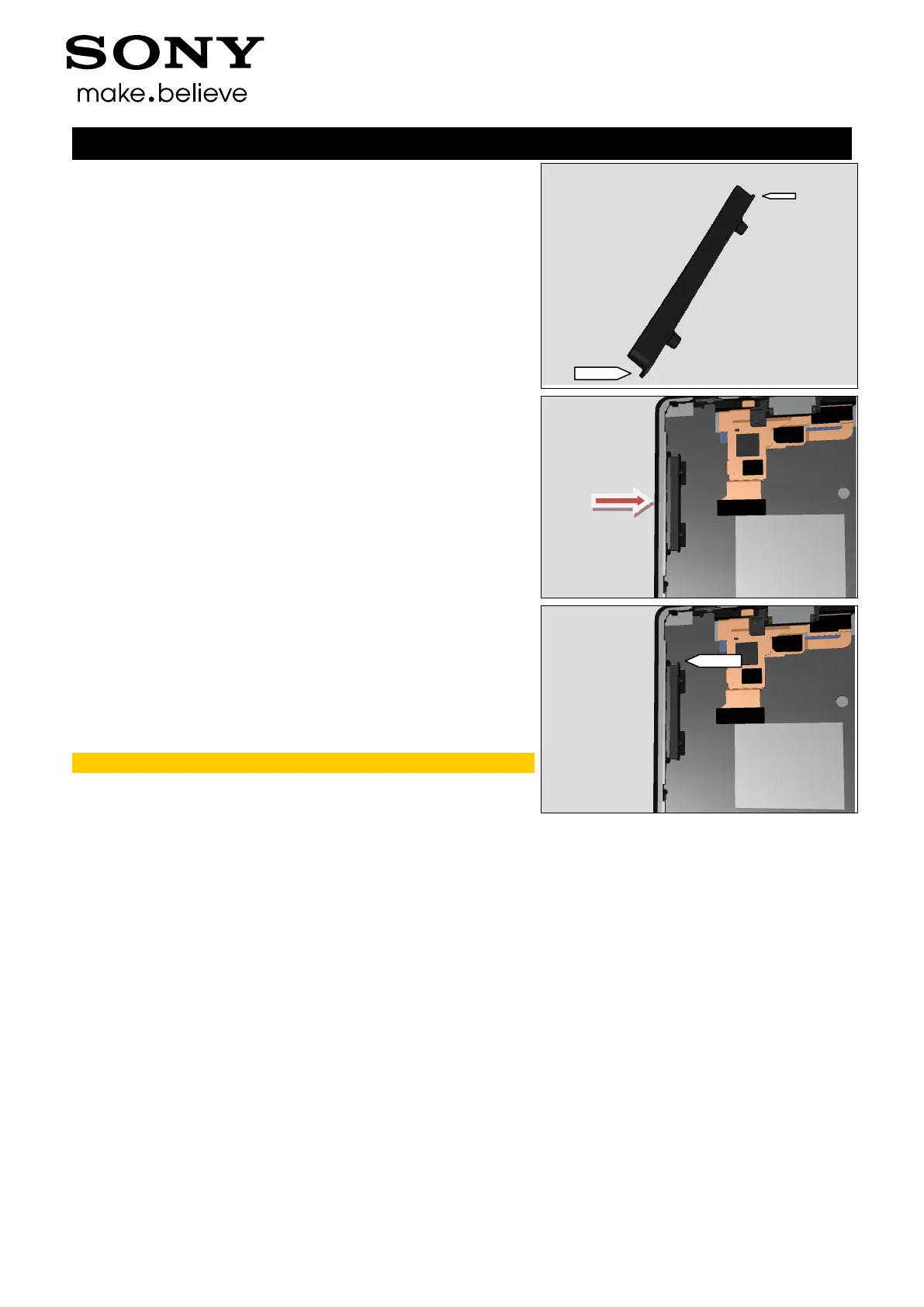

4.35 Key Volume
Follow the 3.1 – 3.5 Disassembly instructions!
Follow the 4.50, 4.9, 4.18, 4.17, 4.44, 4.15, 4.14, 4.7, 4.19,
4.26 and 4.47 Removal instructions!
Carry out the Removal as described below!
Prepare a new Key Volume!
Carry out the Installation as described below!
Follow the 4.47, 4.26, 4.19, 4.37, 4.7, 4.14-15, 4.44, 4.17-
18, 4.9 and 4.50 Installation instructions!
Follow the 5.2 – 5.6 Reassembly instructions!
REMOVAL
Use your fingers to push the Key Volume from the outside
in.
INSTALLATION
Place Key Volume from the inside out with the largest edge
on the Key Volume closest to the short side of the unit (see
first picture on this page).
It will not fit the other way around!

Sony Xperia ZL Specifications

General

Panel type	TFT
Display diagonal	5 \
Touch technology	Multi-touch
Touchscreen type	Capacitive
Display number of colors	16.78 million colors
Processor cores	4
Processor family	Qualcomm
Processor frequency	1.5 GHz
RAM capacity	2 GB
Compatible memory cards	microSD (TransFlash), microSDHC
Maximum memory card size	32 GB
Internal storage capacity	16 GB
Flash type	LED
Front camera type	Single camera
Video recording modes	1080p
Rear camera resolution (numeric)	13 MP
Front camera resolution (numeric)	2 MP
4G standard	LTE
2G standards	EDGE, GPRS, GSM
3G standards	HSPA+, UMTS
SIM card type	MicroSIM
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	4.0
SIM card capability	Single SIM
2G bands (primary SIM)	850, 900, 1800, 1900 MHz
Mobile network generation	4G
Audio formats supported	3GPP, AAC, AMR, FLAC, HE-AAC, MIDI, MP3, OGG
Image formats supported	JPG
Video formats supported	3GP, AVI, MKV, MP4, MPEG2, MPEG4
HDMI ports quantity	-
Headphone connectivity	3.5 mm
Form factor	Bar
Product color	Black
Subscription type	No subscription
Multimedia Messaging Service (MMS)	Multimedia Messaging Service (MMS) is a standard way to send messages that include multimedia content to and from a mobile phone over a cellular network
Platform	Android
App distribution platform	Google Play
Operating system installed	Android 4.1
Talk time (2G)	10 h
Talk time (3G)	- h
Battery capacity	2370 mAh
Standby time (2G)	500 h

Weight and Dimensions

Depth	98 mm
Width	69.3 mm
Height	131.6 mm
Weight	151 g
