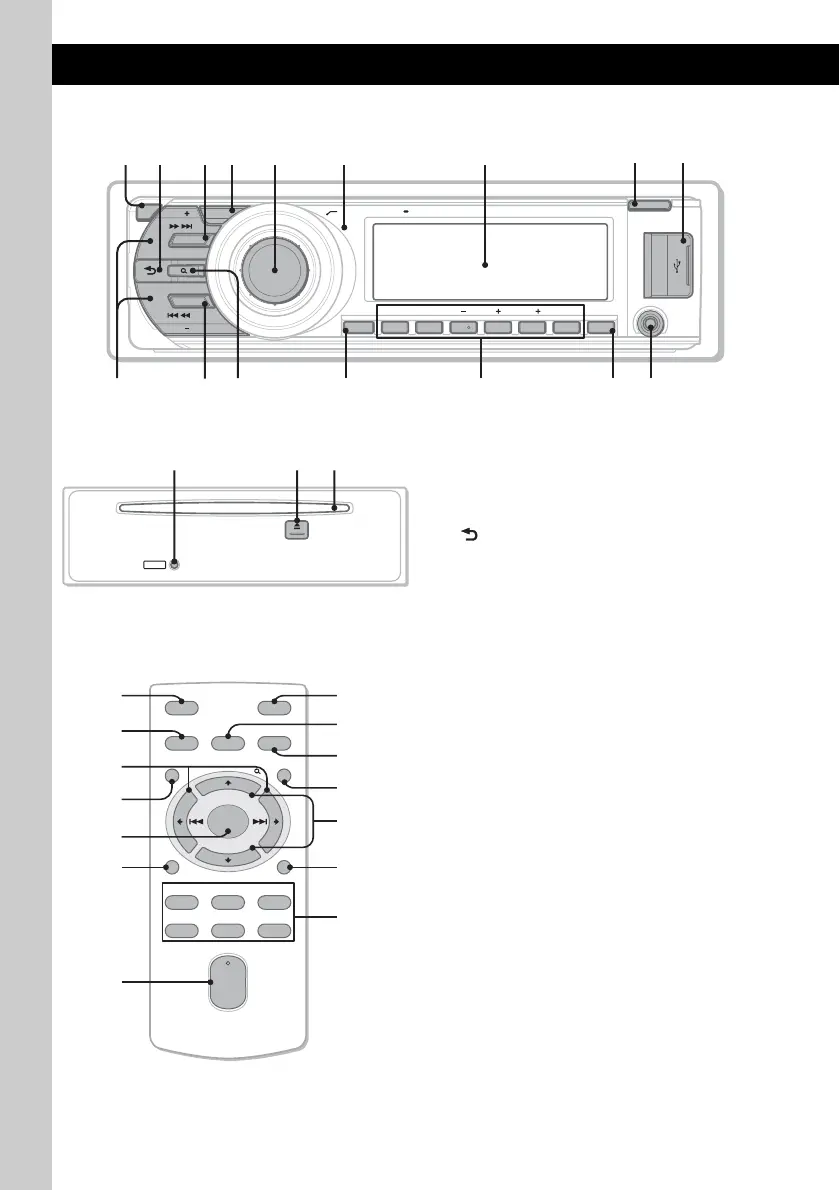

Location of controls and basic operations
Main unit
Front panel removed
Card remote commander
RM-X172
This section contains instructions on the location
of controls and basic operations. For details, see
the respective pages.
The corresponding buttons on the card remote
commander control the same functions as those
on the unit.
A OFF button
To turn off; stop the source.
B (BACK) button
To return to the previous display.
C SOURCE button*
1
To turn on; change the source (Radio/CD/
USB/AUX).
D ZAP button page 11
To enter ZAPPIN™ mode.
E Control dial/ENTER/SOUND/MENU
button
Rotate to adjust the volume/adjust a setting.
Press to enter sound setting/apply a setting.
Press and hold to enter menu.
F Receptor for the card remote
commander
G Display window
H OPEN button page 7, 12
I USB connector page 13, 15
To connect to the USB device.
J SEEK +/– buttons
CD/USB:
To skip tracks (press); skip tracks
continuously (press, then press again within
about 1 second and hold); reverse/fast-
forward a track (press and hold).
Radio:
To tune in stations automatically (press); find
a station manually (press and hold).
