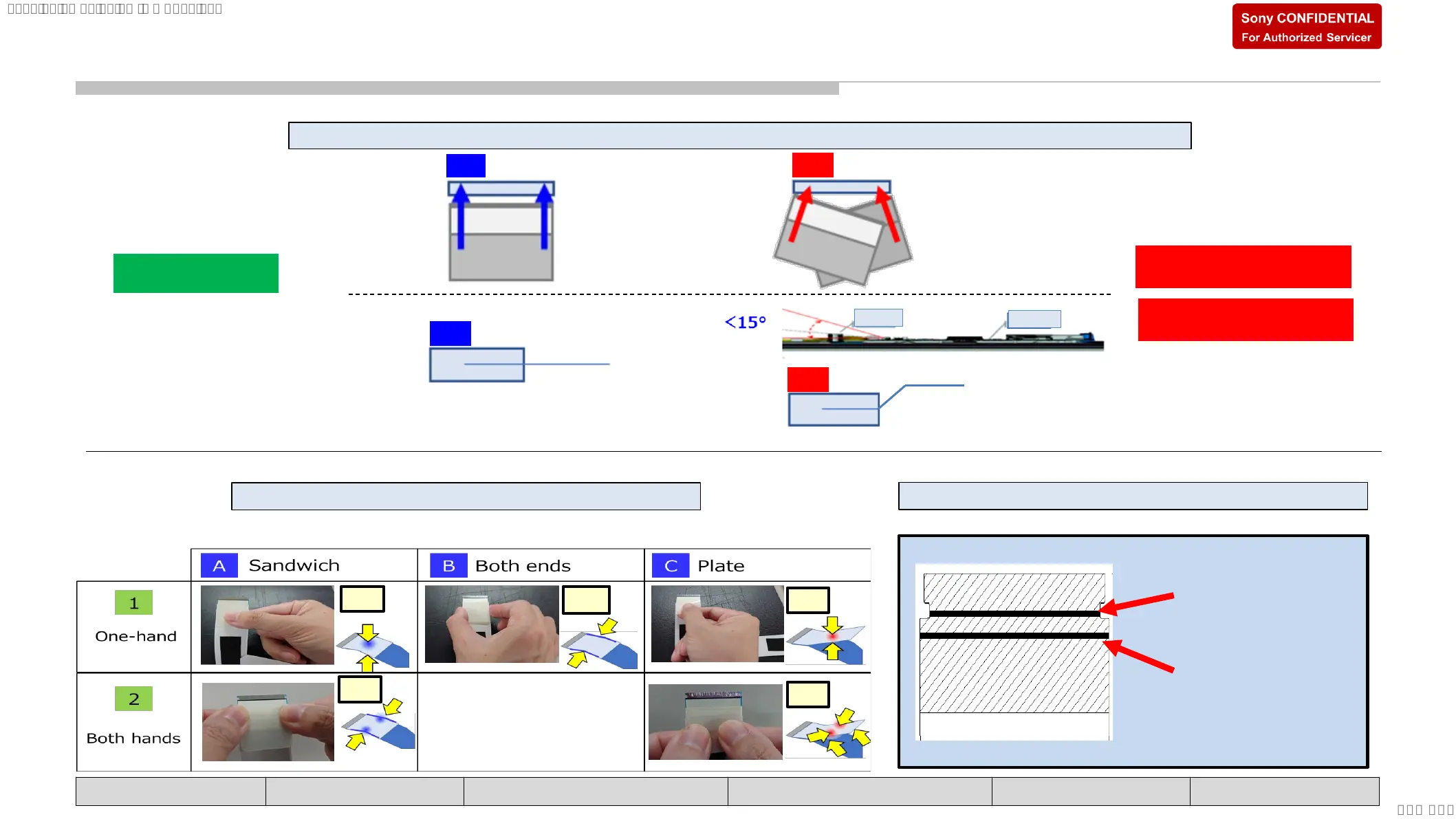

ESSENTIAL CAUTION INFO THAT MUST BE FOLLOWED BY PRODUCTION FOR ANY FFC INSERTION METHOD
Connector
FFC
OK
STRAIGHT INSERT
Connector
FFC
FFC
Connector
FFC
BOARD
Cross section of TV set from A
INSERT FFC IN
STRAIGHT CONDITION
DO NOT INSERT FFC IN
SLANTING CONDITION
DO NOT APPLY EXCESSIVE
FORCE DURING INSERTION
INSERT ANGLE
FFC
Connector
OK
NG
NG
FFC bending
For manual insertion
checking
For automation
insertion checking
INDICATION FOR FFC FULL INSERTION
RECOMMENDED FFC HOLDING METHOD MATRIX
FFC PRECAUTIONS
FFC Insertion Method
2A
1A
1B
1C
2C
TOOLS & EQUIPMENTS FFC PRECAUTIONS SECTION 1 SECTION 2 SMART CORE APPENDIX
SYSSET
2022/07/0823:28:04(GMT+09:00)

Sony XR-42A90K Specifications

General

Cables included	AC
Product color	Black
Rollable display	No
Panel mounting interface	200 x 200 mm
Screen shape	Flat
Response time	- ms
Display diagonal	42 \
Display brightness	- cd/m²
Display technology	OLED
Native aspect ratio	16:9
Native refresh rate	120 Hz
Supported video modes	480p, 720p, 1080i, 1080p, 2160p
Display diagonal (metric)	106 cm
Supported graphics resolutions	3840 x 2160, 4096 x 2160
Motion interpolation technology	OLED Motion
Package depth	170 mm
Package width	1052 mm
Package height	688 mm
Package weight	21000 g
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Browser supported	Vewd
Bluetooth profiles	AVRCP, HID, HOGP, SPP
HDMI ports quantity	4
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Consumer Electronics Control (CEC)	BRAVIA Sync
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Video apps	Google TV
Smart modes	Cinema, Custom, Dolby Vision Bright, Dolby Vision Dark, Game, Graphics, IMAX Enhanced, Netflix Calibrated, Photo, Standard, Vivid
App distribution platform	Google Play
Operating system installed	Android
Sound modes	Cinema, Dialog, Dolby Audio, Music, Sports, Standard
Audio decoders	Dolby Atmos, DTS Digital Surround
RMS rated power	35 W
Number of speakers	3
Game features	Auto Low Latency Mode (ALLM), Variable Refresh Rate (VRR)
Picture processing technology	Sony Cognitive Processor XR, Sony Dynamic Contrast Enhancer, Sony Live Colour, Sony XR Contrast Booster, Sony XR HDR Remaster, Sony XR Smoothing, Sony XR Super Resolution, Sony XR Triluminos Pro
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	201 W
Tuner type	Analog & digital
Supported TV bands	CATV, UHF, VHF
Analog signal format system	PAL, SECAM
Digital signal format system	ATSC, DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Repairability index	6.6

Weight and Dimensions

Stand width	500 mm
Depth (with stand)	225 mm
Height (with stand)	551 mm
Weight (with stand)	16400 g
Depth (without stand)	57 mm
Width (without stand)	933 mm
Height (without stand)	546 mm
Weight (without stand)	13300 g
