Sony XR-55A80L Service Manual

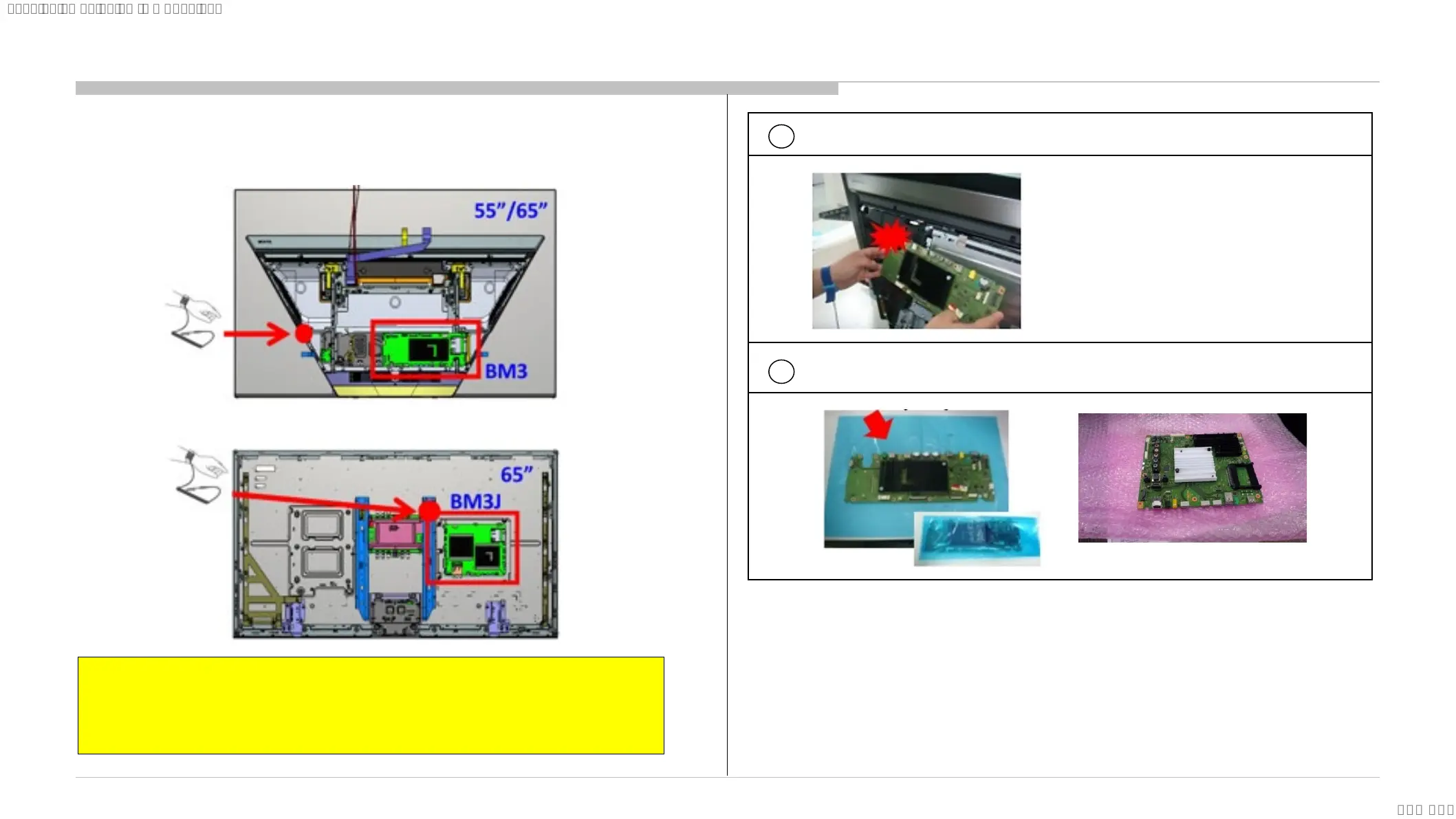

When holding board, do not hit or touch to Plastic part(s)
After take defective board out from TV, put it into ESD bag.
Do not place on floor mat/carpet direct. And, always put it on ESD cushion
※
Installation example of wrist-strap.
Please connect the clip to the metal part of the chassis of the TV with
the wristband grounded. Below is a grounding example of each model.
＜
K*-65Z9F
＞
9
1-4. Caution About the Lithium Battery.
1) Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
2) Outer case broken battery should not contact to water.
SAFETY NOTES
※Caution : ESD wrist-strap to be checked daily.
Use Multi-meter to make sure resistance of ESD wrist-strap is OK.
(R=750K Ohms to 35Mega Ohms)
3
4
SYSSET
2023/11/2806:39:49(GMT+09:00)

Sony XR-55A80L Specifications

General

AC input voltage	220 - 240 V
AC input frequency	50 Hz
Energy saving mode	Yes
Energy efficiency scale	A to G
Power consumption (standby)	0.5 W
Power consumption (typical)	362 W
Screen shape	Flat
Response time	- ms
Display diagonal	55 \
Display brightness	- cd/m²
Display technology	OLED
Native aspect ratio	16:9
Contrast ratio (typical)	-
Display diagonal (metric)	139 cm
Supported graphics resolutions	3840 x 2160
Tuner type	Analog & digital
Supported TV bands	UHF, VHF
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Music apps	Classic FM, Spotify, YouTube Music
Video apps	4oD, All 4, Amazon Prime Video, Apple TV, DAZN, Disney+, Freeview Play, Google TV, ITV Hub, My5, Rakuten TV, Vimeo, YouTube
Smart modes	Photo, Cinema, Custom, Game, Vivid, Graphics, Netflix Calibrated, Dolby Vision Bright, IMAX Enhanced, Dolby Vision Dark, Standard
Sports apps	BT Sport
Lifestyle apps	Facebook, Google Apps, Skype
Operating system version	Android 10
App distribution platform	Google Play
Operating system installed	Android
Sound modes	Cinema, Dialog, Dolby Audio, Music, Sports, Standard
Audio decoders	Dolby Atmos
RMS rated power	50 W
Number of speakers	5
PC in (D-Sub)	No
RF ports quantity	1
HDMI ports quantity	4
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Bluetooth version	4.2
Bluetooth profiles	A2DP, AVRCP, HID, HOGP, SPP
Product color	Black
Panel mounting interface	300 x 300 mm
Picture processing technology	Sony XR HDR Remaster, Sony XR Smoothing, Sony XR Super Resolution, Sony XR Triluminos Pro
High Dynamic Range (HDR) technology	Dolby Vision, High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG)
Package depth	842 mm
Package width	1342 mm
Package height	176 mm
Package weight	25000 g
Cables included	AC

Weight and Dimensions

Stand width	1164 mm
Depth (with stand)	327 mm
Height (with stand)	738 mm
Weight (with stand)	18800 g
Depth (without stand)	53 mm
Width (without stand)	1227 mm
Height (without stand)	712 mm
Weight (without stand)	17900 g
