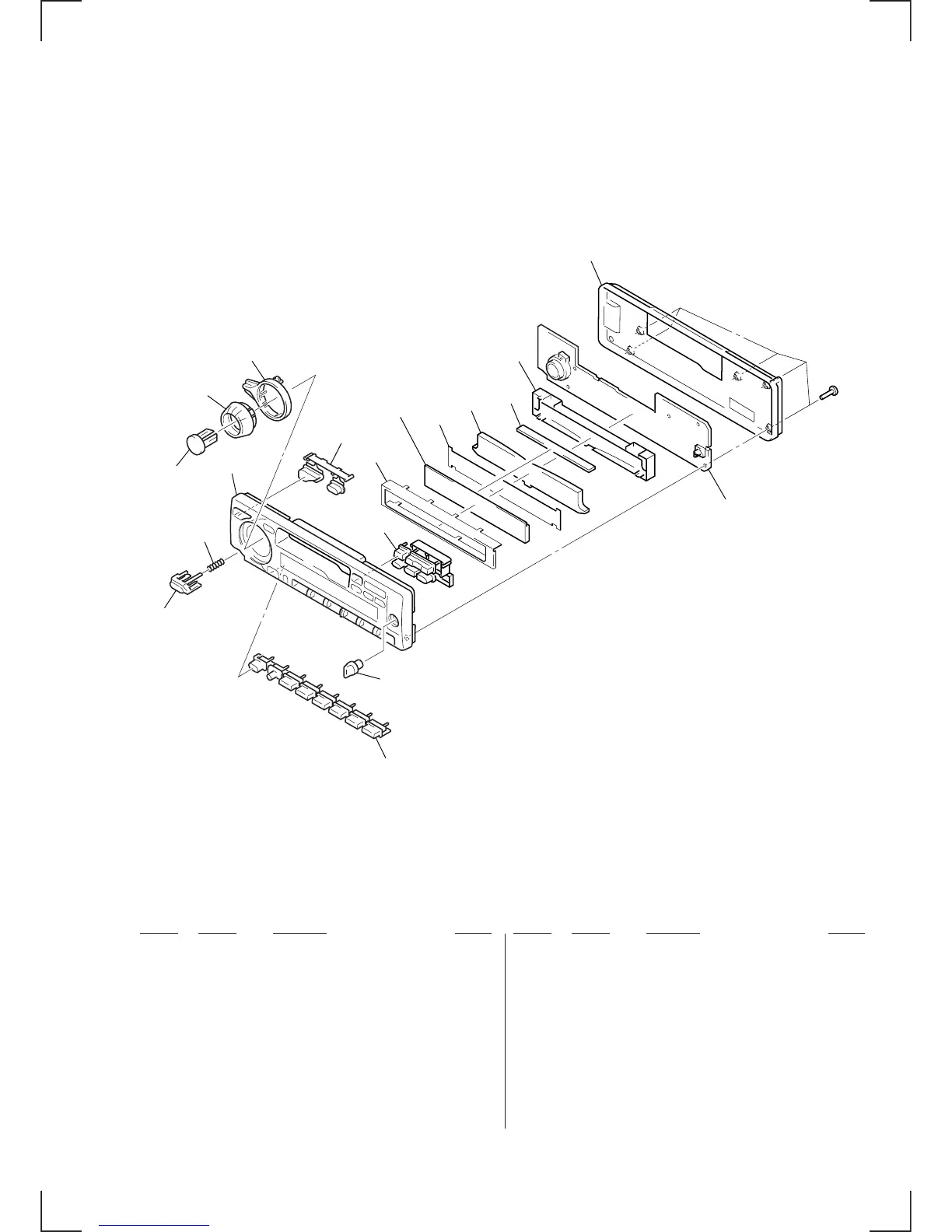

(2) FRONT PANEL SECTION
51 3-030-835-01 BUTTON (1-6) (OFF. SHIFT. 1. 2. 3. 4. 5. 6)
52 3-030-837-01 BUTTON (D-BASS) (C5120R)
52 3-030-837-11 BUTTON (D-BASS) (C5110R)
53 3-030-838-01 BUTTON (RELEASE) (C5120R)
53 3-030-838-11 BUTTON (RELEASE) (C5110R)
54 3-932-475-01 SPRING (RELEASE)
55 X-3376-780-1 PANEL SUB ASSY (C5110R)
55 X-3376-783-1 PANEL SUB ASSY (C5120R)
56 3-030-834-01 BUTTON (M/S) (MODE *. SOUND)
57 3-030-836-01 BUTTON (D/P/A)
(6. - DISC +. DSPL. PTY. AF/TA)
58 3-030-831-01 BUTTON (SOURCE)
59 3-030-830-01 KNOB (VOL)
60 3-030-832-01 LEVER (S/A) (+. –) (C5120R)
60 3-030-832-11 LEVER (S/A) (+. –) (C5110R)
* 61 3-030-840-01 PLATE (B), GROUND
* 62 3-030-839-01 SHEET (REFLECTOR)
* 63 3-030-824-01 PLATE, LIGHT GUIDE
64 1-694-508-11 CONDUCTIVE BOARD, CONNECTION
* 65 3-030-825-01 HOLDER (LCD)
66 3-030-827-01 PANEL, FRONT BACK
LCD901 1-803-322-11 DISPLAY PANEL, LIQUID CRYSTAL
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
LCD901
#
