XR-C5110R/C5120R
– 27 –
– 28 –

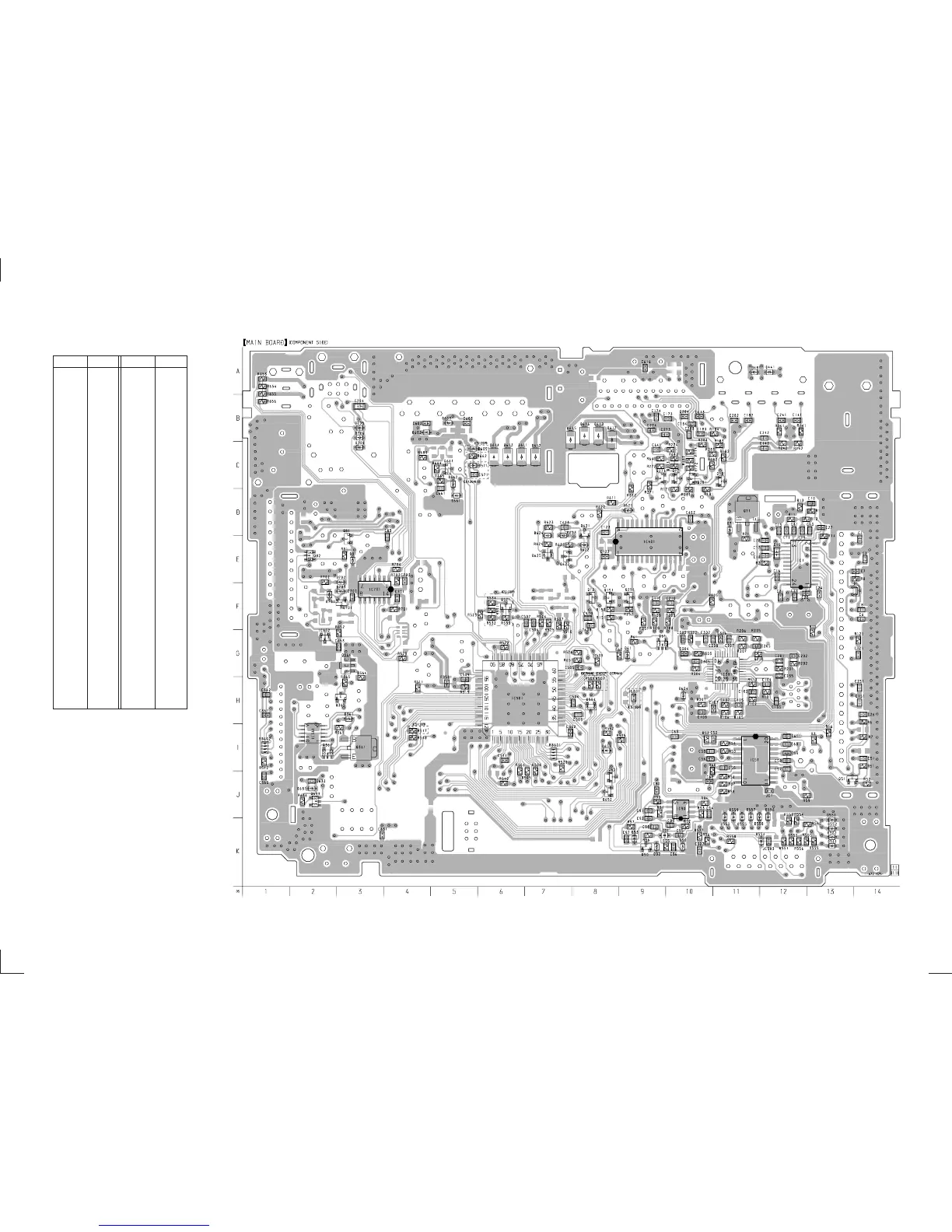

6-5. PRINTED WIRING BOARD – MAIN Board (Component Side) –
Ref. No. LocationRef. No. Location
• Semiconductor Location
D1 F-14
D61 G-9
D71 D-11
D81 E-3
D90 K-10
D91 K-9
D92 K-9
D93 K-9
D361 H-3
D441 A-12
D481 A-11
D501 H-8
D551 K-13
D552 K-13
D553 J-11
D554 K-12
D555 J-11
D556 J-12
D557 J-11
D558 J-11
D559 J-11
D561 K-13
D562 K-13
D571 C-5
D602 B-4
D603 B-5
D604 H-10
D605 C-5
D611 C-6
D612 C-7
D613 C-6
D614 C-6
D615 B-7
D616 B-8
D617 B-8
D618 B-8
D621 D-9
D622 E-8
D623 D-7
D624 D-7
D625 E-7
D631 J-2
D653 I-8
D661 D-5
D662 C-5
D701 F-2
D702 E-3
D703 F-3
D704 C-3
D705 B-3
D706 B-3
IC1 E-12
IC51 I-11
IC90 J-10
IC301 G-11
IC361 I-2
IC401 E-9
IC501 H-6
IC652 G-2
IC701 F-3
Q51 J-13
Q61 G-9
Q71 D-11
Q81 E-3
Q82 E-2
Q90 K-9
Q121 F-8
Q151 F-8
Q171 C-10
Q181 C-11
Q251 F-9
Q271 C-9
Q281 C-10
Q361 I-3
Q362 I-2
Q364 G-3
Q365 H-3
Q571 F-6
Q621 D-8
Q622 E-7
Q633 J-2
Q651 J-8
Q652 J-8
Q661 C-5
Q701 F-3
