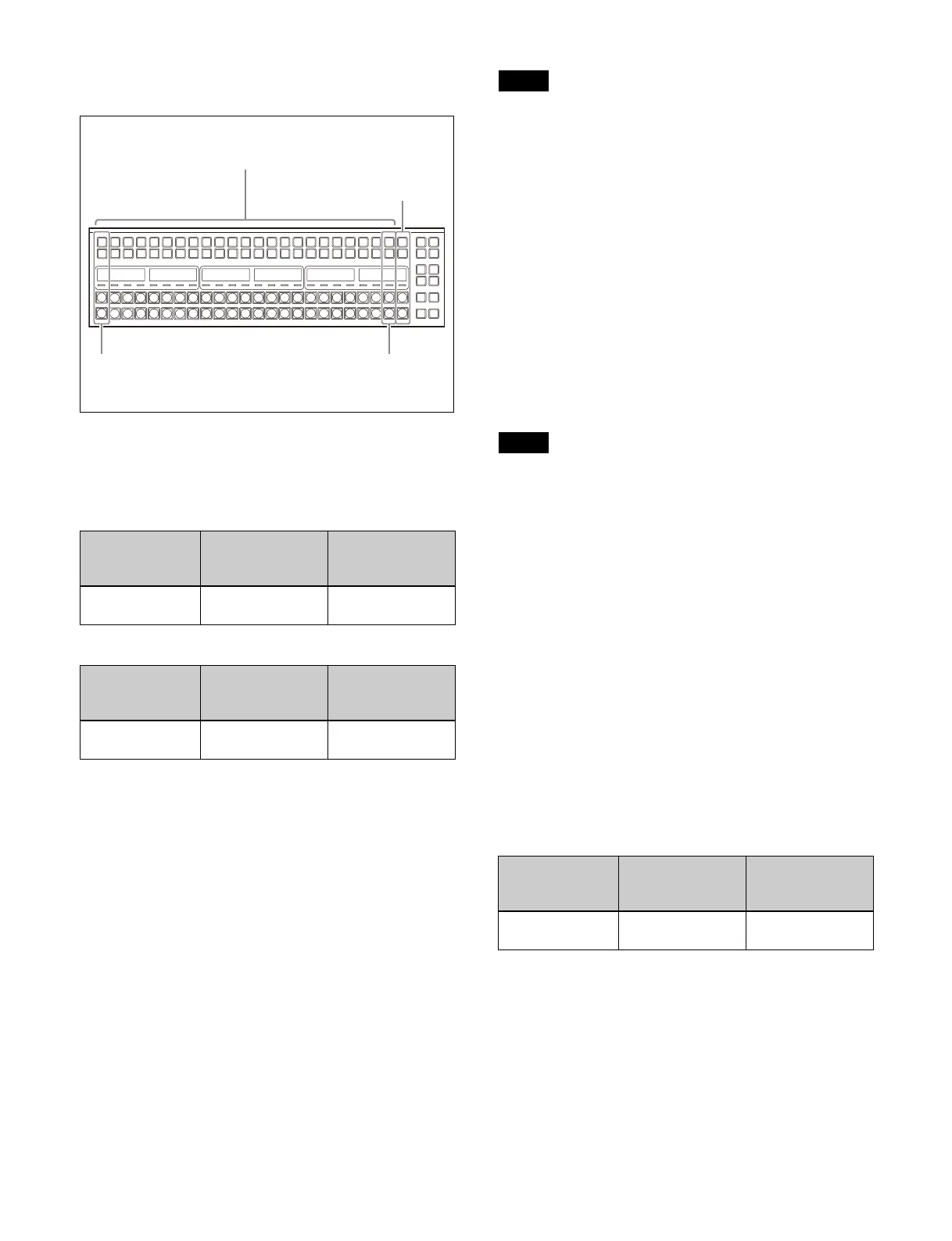

ICP-X1000 series 24-button cross-point control
block
Cross-point control block
Each cross-point button has two button numbers, and you
use the [SHIFT] button to switch between these numbers.
In a 36-button row, the butto
n numbers are as follows.
In a 24-button row, the butto
n numbers are as follows.
The rightmost (36th/24th) button is used as the [SHIFT]
bu
tton.
When selecting the signal of button numbers 1 to 35/1 to
23
, press the corresponding number button.
When selecting the signal of button numbers 36 to 70/24
to 4
6, press the [SHIFT] button, turning it on, and press
the corresponding number button.
[SHIFT] button
The [SHIFT] button has two operation modes.
Hold mode: Mode where the shifted sta
te is selected
while the button is pressed
Lock mode: Mode where every time the button is pressed,
i
t toggles between the shifted state and unshifted state
You can also disable the shift button func
tion.
For details, see “Setting the Shift Button” (page 380).
• The operation mode of the [SHIFT] button is the
op
eration mode set by the cross-point assign table of the
switcher bank, regardless of the buses assigned to the
cross-point button rows.
• The rightmost button operates as a cross-point button
when the
[SHIFT] button use is disabled.
In a 36-button row, it becomes button number 36. In a
2
4-button row, it becomes button number 24.
[SHIFT ALL] button
You can switch all the cross-p
oint buttons in the 1st row
to 4th row to the shifted state using the [SHIFT ALL]
button assigned to the cross-point pad/function button
section (excluding 1st row delegation buttons in key/
AUX bus delegation mode).
The [SHIFT ALL] button operat
ion can be set to hold
mode or lock mode.
• The [SHIFT ALL] button is enabled, even if the
[SHIFT] b
utton use is disabled.
The button numbers are
as follows.
– 36-button row: 1 to 36 (unshifted state) to 37 to 72
(
shifted state)
– 24-button row: 1 to 24 (unshifted state) to 25 to 48
(
shifted state)
• The [SHIFT ALL] button is di
sabled in the following
cases.
– In [SHIFT] button hold mode
– When dual background bus mode is set
– When dual M/E is set
AUX bus control block
Each cross-point button and delegation button has two
button numbers, and you use the [SHIFT] button to
switch between these numbers.
When second delegation mode is enabled
In a 36-button row, the button numbers are as follows.
The rightmost (36th) button is used as the [SHIFT]
bu
tton.
When selecting the bus/signal of button numbers 1 to 35,
p
ress the corresponding number button.
When selecting the bus/signal of button numbers 36 to 70,
pre
ss the [SHIFT] button, turning it on, and press the
corresponding number button.
Button Button number
when the [SHIFT]
button is off
Button number
when the [SHIFT]
button is on
1st (left side) to
35
th buttons
1 to 35 36 to 70
Button Button number
when the [SHIFT]
button is off
Button number
when the [SHIFT]
button is on
1st (left side) to
23
rd buttons
1 to 23 24 to 46
1 to 23 (1st button number: unshifted state)
24 to 46 (2nd button number: shifted state)
SHIFT button
Number 1 (unshifted)
Number 24 (shifted)
Number 23 (unshifted)
Number 46 (shifted)
Notes
Notes
Button Button number
when the [SHIFT]
button is off
Button number
when the [SHIFT]
button is on
1st (left side) to
35th bu
ttons
1 to 35 36 to 70
