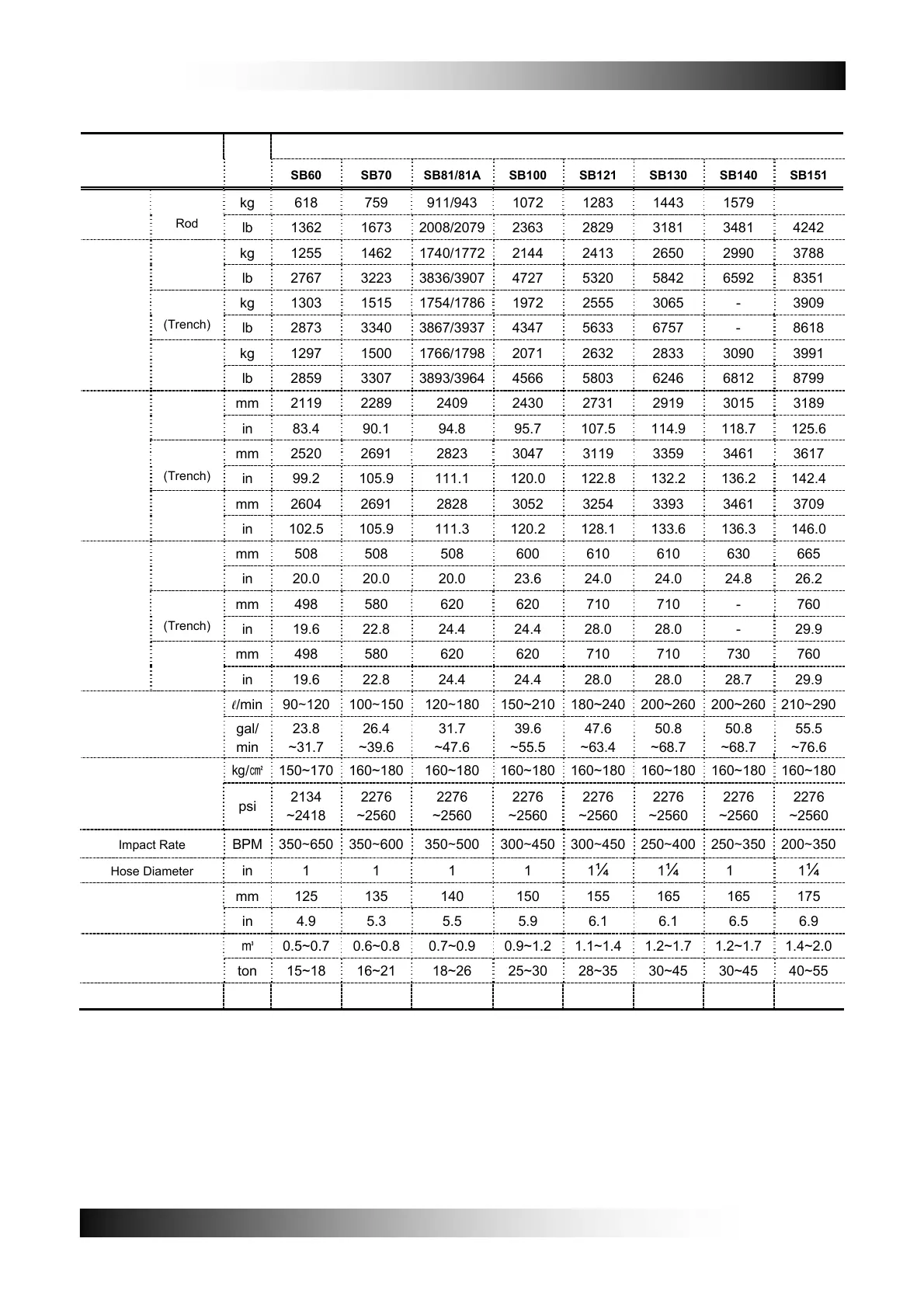

Soosan SB121 - Page 15

Soosan H
y
draulic Breaker
Soosan Heav
y
Industries Co.
,
Ltd
MODEL
DESCRIPTION UNIT
SB60 SB70 SB81/81A SB100 SB121 SB130 SB140 SB151
kg 618 759 911/943 1072 1283 1443 1579 1924
Body
Weight
Including
Rod
lb 1362 1673 2008/2079 2363 2829 3181 3481 4242
kg 1255 1462 1740/1772 2144 2413 2650 2990 3788
Side Type
lb 2767 3223 3836/3907 4727 5320 5842 6592 8351
kg 1303 1515 1754/1786 1972 2555 3065 - 3909
Top Type
(Trench)
lb 2873 3340 3867/3937 4347 5633 6757 - 8618
kg 1297 1500 1766/1798 2071 2632 2833 3090 3991
Operating
Weight
TS-P
lb 2859 3307 3893/3964 4566 5803 6246 6812 8799
mm 2119 2289 2409 2430 2731 2919 3015 3189
Side Type
in 83.4 90.1 94.8 95.7 107.5 114.9 118.7 125.6
mm 2520 2691 2823 3047 3119 3359 3461 3617
Top Type
(Trench)
in 99.2 105.9 111.1 120.0 122.8 132.2 136.2 142.4
mm 2604 2691 2828 3052 3254 3393 3461 3709
Length
TS-P
in 102.5 105.9 111.3 120.2 128.1 133.6 136.3 146.0
mm 508 508 508 600 610 610 630 665
Side Type
in 20.0 20.0 20.0 23.6 24.0 24.0 24.8 26.2
mm 498 580 620 620 710 710 - 760
Top Type
(Trench)
in 19.6 22.8 24.4 24.4 28.0 28.0 - 29.9
mm 498 580 620 620 710 710 730 760
Width
TS-P
in 19.6 22.8 24.4 24.4 28.0 28.0 28.7 29.9
ℓ/min 90∼120 100∼150 120∼180 150~210 180~240 200~260 200~260 210∼290
Required
Oil Flow
gal/
min
23.8
~31.7
26.4
~39.6
31.7
~47.6
39.6
~55.5
47.6
~63.4
50.8
~68.7
50.8
~68.7
55.5
~76.6
㎏/㎠ 150~170 160~180 160~180 160~180 160~180 160~180 160~180 160~180
Operating
Pressure
psi
2134
~2418
2276
~2560
2276
~2560
2276
~2560
2276
~2560
2276
~2560
2276
~2560
2276
~2560
Impact Rate BPM 350∼650 350∼600 350∼500 300∼450 300∼450 250∼400 250∼350 200∼350
Hose Diameter in 1 1 1 1 1¼ 1¼ 1¼ 1¼
mm 125 135 140 150 155 165 165 175
Rod Diameter
in 4.9 5.3 5.5 5.9 6.1 6.1 6.5 6.9
㎥ 0.5~0.7 0.6~0.8 0.7~0.9 0.9~1.2 1.1~1.4 1.2~1.7 1.2~1.7 1.4~2.0
Applicable Carrier
ton 15~18 16~21 18~26 25~30 28~35 30~45 30~45 40~55
Noise Level dB 115 120 118 120 123 124 124 125
* Operating weight include Cap, Rod weight by AEM regulation.
(Except for pin, hose, fitting and tubing)
* The above specifications are subject to change without prior notice for the quality enhancement.
* The above Noise level is TS-P type.
* Rod is long type standard.
