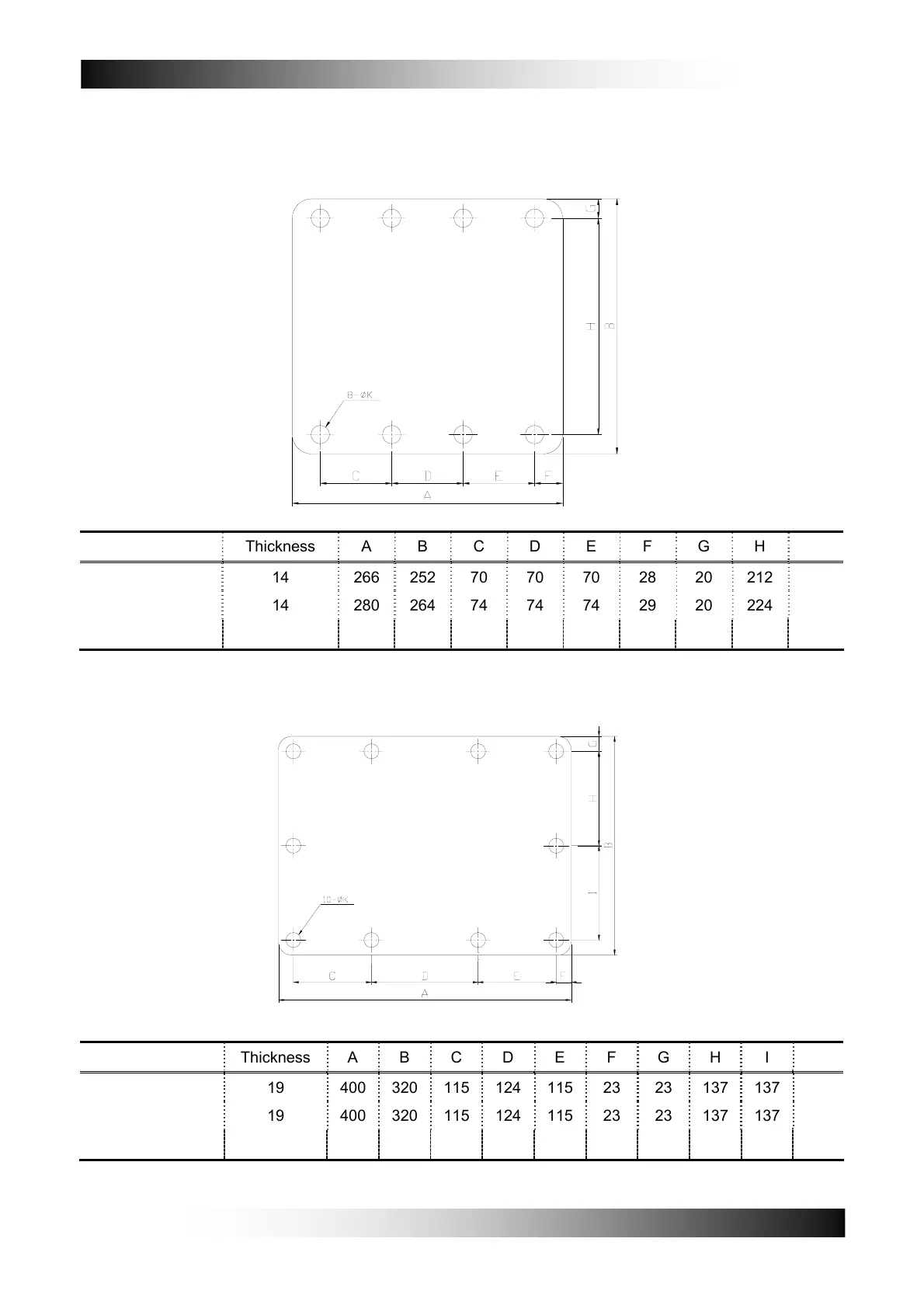

3.3 COVER PLATE(TS-P Type)
■ SB10II 30II TS∼ -P
Model Thickness A B C D E F G H K
SB10II TS-P 14 266 252 70 70 70 28 20 212 17
SB20II TS-P 14 280 264 74 74 74 29 20 224 19
SB30II TS-P 14 280 264 74 74 74 29 20 224 19
■ SB35II 43II TS∼ -P
Model Thickness A B C D E F G H I K
SB35II TS-P 19 400 320 115 124 115 23 23 137 137 21
SB40II TS-P 19 400 320 115 124 115 23 23 137 137 21
SB43II TS-P 19 450 336 120 164 120 23 23 145 145 21
