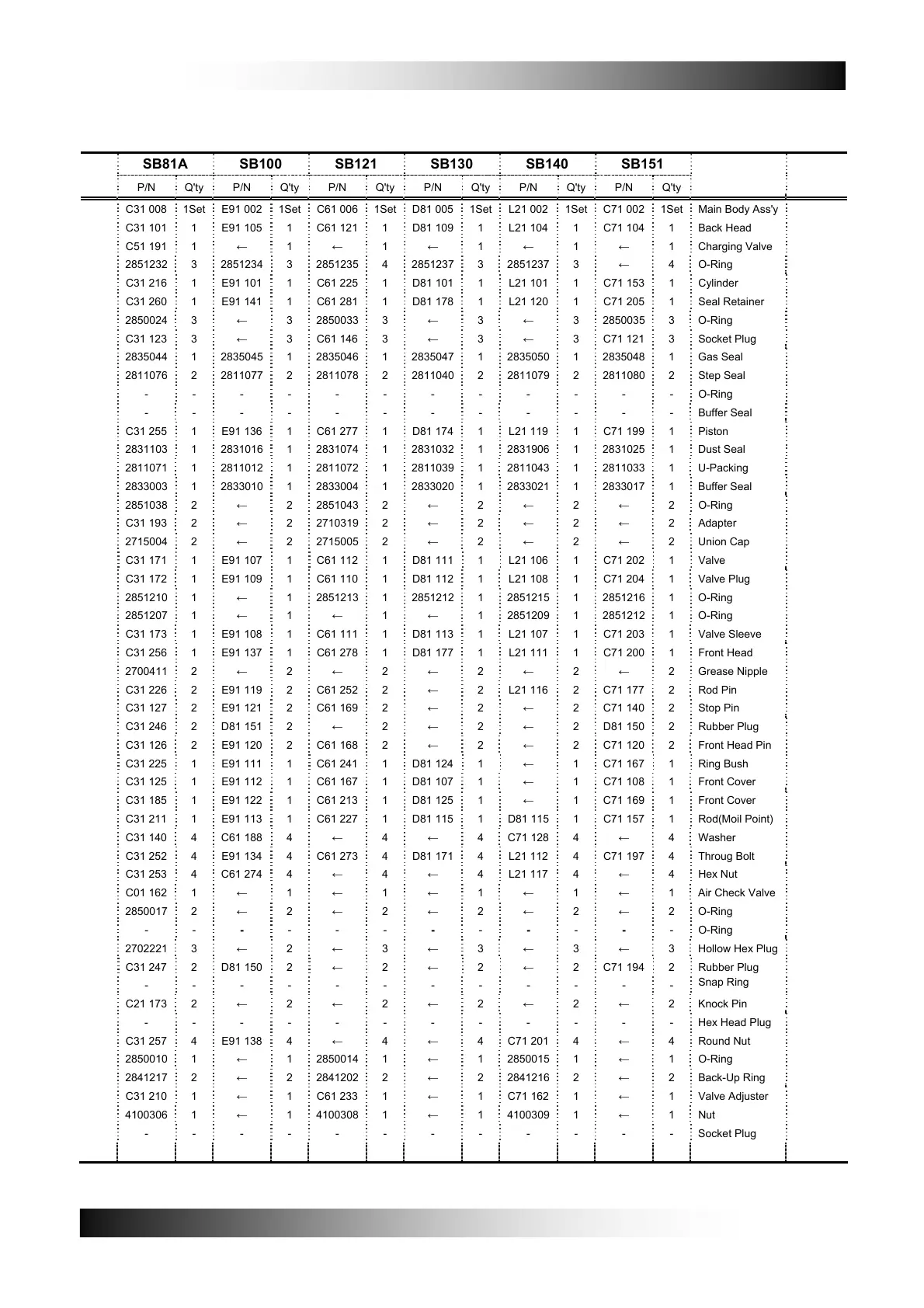

■ MAIN BODY (SB81A,100,121,130,140,151)
SB81A SB100 SB121 SB130 SB140 SB151
NO
P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty
PARTS NAME REMARK
C31 008 1Set E91 002 1Set C61 006 1Set D81 005 1Set L21 002 1Set C71 002 1Set Main Body Ass'y
1 C31 101 1 E91 105 1 C61 121 1 D81 109 1 L21 104 1 C71 104 1 Back Head
2 C51 191 1 ← 1 ← 1 ← 1 ← 1 ← 1 Charging Valve
3 2851232 3 2851234 3 2851235 4 2851237 3 2851237 3 ← 4 O-Ring
4 C31 216 1 E91 101 1 C61 225 1 D81 101 1 L21 101 1 C71 153 1 Cylinder
5 C31 260 1 E91 141 1 C61 281 1 D81 178 1 L21 120 1 C71 205 1 Seal Retainer
6 2850024 3 ← 3 2850033 3 ← 3 ← 3 2850035 3 O-Ring
7 C31 123 3 ← 3 C61 146 3 ← 3 ← 3 C71 121 3 Socket Plug
8 2835044 1 2835045 1 2835046 1 2835047 1 2835050 1 2835048 1 Gas Seal
9 2811076 2 2811077 2 2811078 2 2811040 2 2811079 2 2811080 2 Step Seal
10 - - - - - - - - - - - - O-Ring
11 - - - - - - - - - - - - Buffer Seal
12 C31 255 1 E91 136 1 C61 277 1 D81 174 1 L21 119 1 C71 199 1 Piston
13 2831103 1 2831016 1 2831074 1 2831032 1 2831906 1 2831025 1 Dust Seal
14 2811071 1 2811012 1 2811072 1 2811039 1 2811043 1 2811033 1 U-Packing
15 2833003 1 2833010 1 2833004 1 2833020 1 2833021 1 2833017 1 Buffer Seal
16 2851038 2 ← 2 2851043 2 ← 2 ← 2 ← 2 O-Ring
17 C31 193 2 ← 2 2710319 2 ← 2 ← 2 ← 2 Adapter
18 2715004 2 ← 2 2715005 2 ← 2 ← 2 ← 2 Union Cap
19 C31 171 1 E91 107 1 C61 112 1 D81 111 1 L21 106 1 C71 202 1 Valve
20 C31 172 1 E91 109 1 C61 110 1 D81 112 1 L21 108 1 C71 204 1 Valve Plug
21 2851210 1 ← 1 2851213 1 2851212 1 2851215 1 2851216 1 O-Ring
22 2851207 1 ← 1 ← 1 ← 1 2851209 1 2851212 1 O-Ring
23 C31 173 1 E91 108 1 C61 111 1 D81 113 1 L21 107 1 C71 203 1 Valve Sleeve
24 C31 256 1 E91 137 1 C61 278 1 D81 177 1 L21 111 1 C71 200 1 Front Head
25 2700411 2 ← 2 ← 2 ← 2 ← 2 ← 2 Grease Nipple
26 C31 226 2 E91 119 2 C61 252 2 ← 2 L21 116 2 C71 177 2 Rod Pin
27 C31 127 2 E91 121 2 C61 169 2 ← 2 ← 2 C71 140 2 Stop Pin
28 C31 246 2 D81 151 2 ← 2 ← 2 ← 2 D81 150 2 Rubber Plug
29 C31 126 2 E91 120 2 C61 168 2 ← 2 ← 2 C71 120 2 Front Head Pin
30 C31 225 1 E91 111 1 C61 241 1 D81 124 1 ← 1 C71 167 1 Ring Bush
31 C31 125 1 E91 112 1 C61 167 1 D81 107 1 ← 1 C71 108 1 Front Cover
31-1 C31 185 1 E91 122 1 C61 213 1 D81 125 1 ← 1 C71 169 1 Front Cover Silence
32 C31 211 1 E91 113 1 C61 227 1 D81 115 1 D81 115 1 C71 157 1 Rod(Moil Point)
33 C31 140 4 C61 188 4 ← 4 ← 4 C71 128 4 ← 4 Washer
34 C31 252 4 E91 134 4 C61 273 4 D81 171 4 L21 112 4 C71 197 4 Throug Bolt
35 C31 253 4 C61 274 4 ← 4 ← 4 L21 117 4 ← 4 Hex Nut
36 C01 162 1 ← 1 ← 1 ← 1 ← 1 ← 1 Air Check Valve
37 2850017 2 ← 2 ← 2 ← 2 ← 2 ← 2 O-Ring
38 - - - - - - - - - - - - O-Ring
39 2702221 3 ← 2 ← 3 ← 3 ← 3 ← 3 Hollow Hex Plug
40 C31 247 2 D81 150 2 ← 2 ← 2 ← 2 C71 194 2 Rubber Plug
41 - - - - - - - - - - - -
Snap Ring
Not Use
42 C21 173 2 ← 2 ← 2 ← 2 ← 2 ← 2 Knock Pin
43 - - - - - - - - - - - - Hex Head Plug Not Use
44 C31 257 4 E91 138 4 ← 4 ← 4 C71 201 4 ← 4 Round Nut
45 2850010 1 ← 1 2850014 1 ← 1 2850015 1 ← 1 O-Ring
46 2841217 2 ← 2 2841202 2 ← 2 2841216 2 ← 2 Back-Up Ring
47 C31 210 1 ← 1 C61 233 1 ← 1 C71 162 1 ← 1 Valve Adjuster
48 4100306 1 ← 1 4100308 1 ← 1 4100309 1 ← 1 Nut
49 - - - - - - - - - - - - Socket Plug Not Use
50 4130039 4 ← 4 ← 4 ← 4 ← 4 4130041 4 Heli Sert Coil
