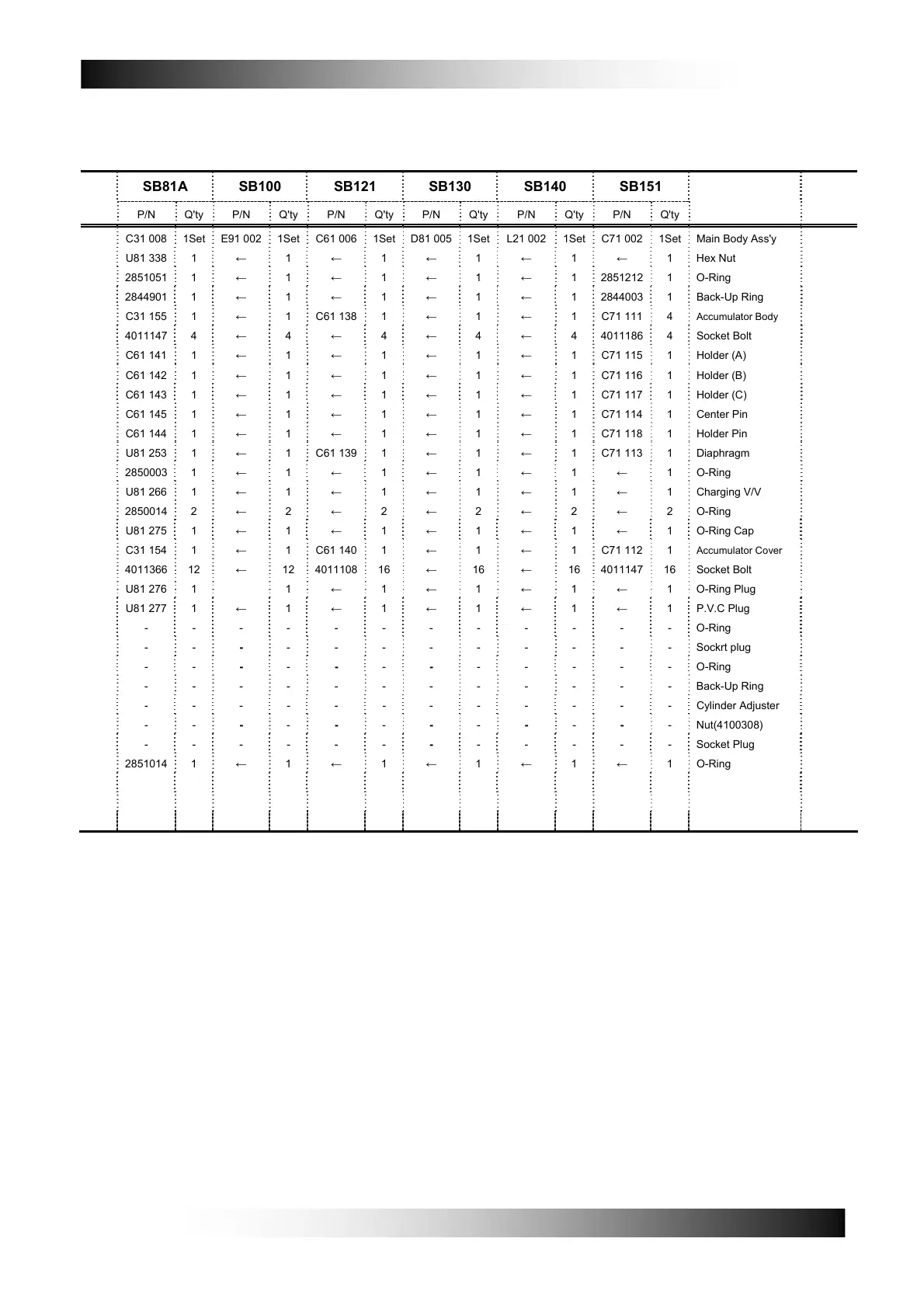

■ MAIN BODY (SB81A,100,121,130,140,151)
SB81A SB100 SB121 SB130 SB140 SB151
NO
P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty P/N Q'ty
PARTS NAME
REMARK
C31 008 1Set E91 002 1Set C61 006 1Set D81 005 1Set L21 002 1Set C71 002 1Set Main Body Ass'y
51 U81 338 1 ← 1 ← 1 ← 1 ← 1 ← 1 Hex Nut
52 2851051 1 ← 1 ← 1 ← 1 ← 1 2851212 1 O-Ring
53 2844901 1 ← 1 ← 1 ← 1 ← 1 2844003 1 Back-Up Ring
54 C31 155 1 ← 1 C61 138 1 ← 1 ← 1 C71 111 4 Accumulator Body
55 4011147 4 ← 4 ← 4 ← 4 ← 4 4011186 4 Socket Bolt
56 C61 141 1 ← 1 ← 1 ← 1 ← 1 C71 115 1 Holder (A)
57 C61 142 1 ← 1 ← 1 ← 1 ← 1 C71 116 1 Holder (B)
58 C61 143 1 ← 1 ← 1 ← 1 ← 1 C71 117 1 Holder (C)
59 C61 145 1 ← 1 ← 1 ← 1 ← 1 C71 114 1 Center Pin
60 C61 144 1 ← 1 ← 1 ← 1 ← 1 C71 118 1 Holder Pin
61 U81 253 1 ← 1 C61 139 1 ← 1 ← 1 C71 113 1 Diaphragm
62 2850003 1 ← 1 ← 1 ← 1 ← 1 ← 1 O-Ring
63 U81 266 1 ← 1 ← 1 ← 1 ← 1 ← 1 Charging V/V
64 2850014 2 ← 2 ← 2 ← 2 ← 2 ← 2 O-Ring
65 U81 275 1 ← 1 ← 1 ← 1 ← 1 ← 1 O-Ring Cap
66 C31 154 1 ← 1 C61 140 1 ← 1 ← 1 C71 112 1 Accumulator Cover
67 4011366 12 ← 12 4011108 16 ← 16 ← 16 4011147 16 Socket Bolt
68 U81 276 1 1 ← 1 ← 1 ← 1 ← 1 O-Ring Plug
69 U81 277 1 ← 1 ← 1 ← 1 ← 1 ← 1 P.V.C Plug
70 - - - - - - - - - - - - O-Ring Not Use
71 - - - - - - - - - - - - Sockrt plug Not Use
72 - - - - - - - - - - - - O-Ring Not Use
73 - - - - - - - - - - - - Back-Up Ring Not Use
74 - - - - - - - - - - - - Cylinder Adjuster Not Use
75 - - - - - - - - - - - - Nut(4100308) Not Use
76 - - - - - - - - - - - - Socket Plug Not Use
77 2851014 1 ← 1 ← 1 ← 1 ← 1 ← 1 O-Ring
78
79
80
