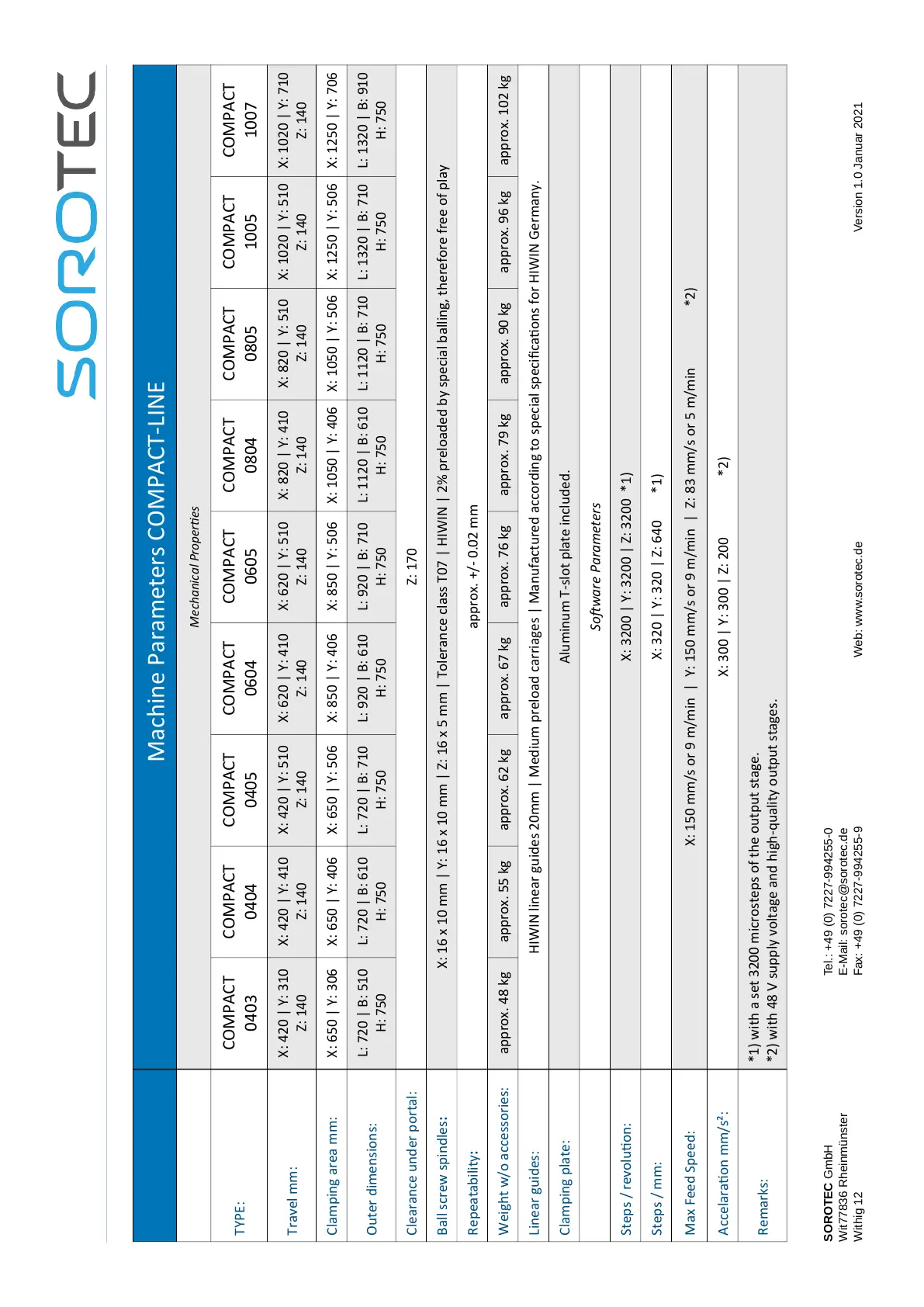

Machine Parameters COMPACT-LINE
Mechanical Properes
TYPE:
COMPACT
0403
COMPACT
0404
COMPACT
0405
COMPACT
0604
COMPACT
0605
COMPACT
0804
COMPACT
0805
COMPACT
1005
COMPACT
1007
Travel mm:
X: 420 | Y: 310
Z: 140
X: 420 | Y: 410
Z: 140
X: 420 | Y: 510
Z: 140
X: 620 | Y: 410
Z: 140
X: 620 | Y: 510
Z: 140
X: 820 | Y: 410
Z: 140
X: 820 | Y: 510
Z: 140
X: 1020 | Y: 510
Z: 140
X: 1020 | Y: 710
Z: 140
Clamping area mm: X: 650 | Y: 306 X: 650 | Y: 406 X: 650 | Y: 506 X: 850 | Y: 406 X: 850 | Y: 506 X: 1050 | Y: 406 X: 1050 | Y: 506 X: 1250 | Y: 506 X: 1250 | Y: 706 Outer dimensions:
L: 720 | B: 510
H: 750
L: 720 | B: 610
H: 750
L: 720 | B: 710
H: 750
L: 920 | B: 610
H: 750
L: 920 | B: 710
H: 750
L: 1120 | B: 610
H: 750
L: 1120 | B: 710
H: 750
L: 1320 | B: 710
H: 750
L: 1320 | B: 910
H: 750
Clearance under portal: Z: 170 Ball screw spindles: X: 16 x 10 mm | Y: 16 x 10 mm | Z: 16 x 5 mm | Tolerance class T07 | HIWIN | 2% preloaded by special balling, therefore free of play Repeatability: approx. +/- 0.02 mm Weight w/o accessories: approx. 48 kg approx. 55 kg approx. 62 kg approx. 67 kg approx. 76 kg approx. 79 kg approx. 90 kg approx. 96 kg approx. 102 kg Linear guides: HIWIN linear guides 20mm | Medium preload carriages | Manufactured according to special specicaons for HIWIN Germany. Clamping plate: Aluminum T-slot plate included.
Soware Parameters
Steps / revoluon: X: 3200 | Y: 3200 | Z: 3200 *1) Steps / mm: X: 320 | Y: 320 | Z: 640 *1) Max Feed Speed: X: 150 mm/s or 9 m/min | Y: 150 mm/s or 9 m/min | Z: 83 mm/s or 5 m/min *2) Accelaraon mm/s²: X: 300 | Y: 300 | Z: 200 *2) Remarks:
*1) with a set 3200 microsteps of the output stage. *2) with 48 V supply voltage and high-quality output stages.
