SOUNDMASTER SCD8100 - Location of Controls

SCD8100 / English Instruction Manual
1

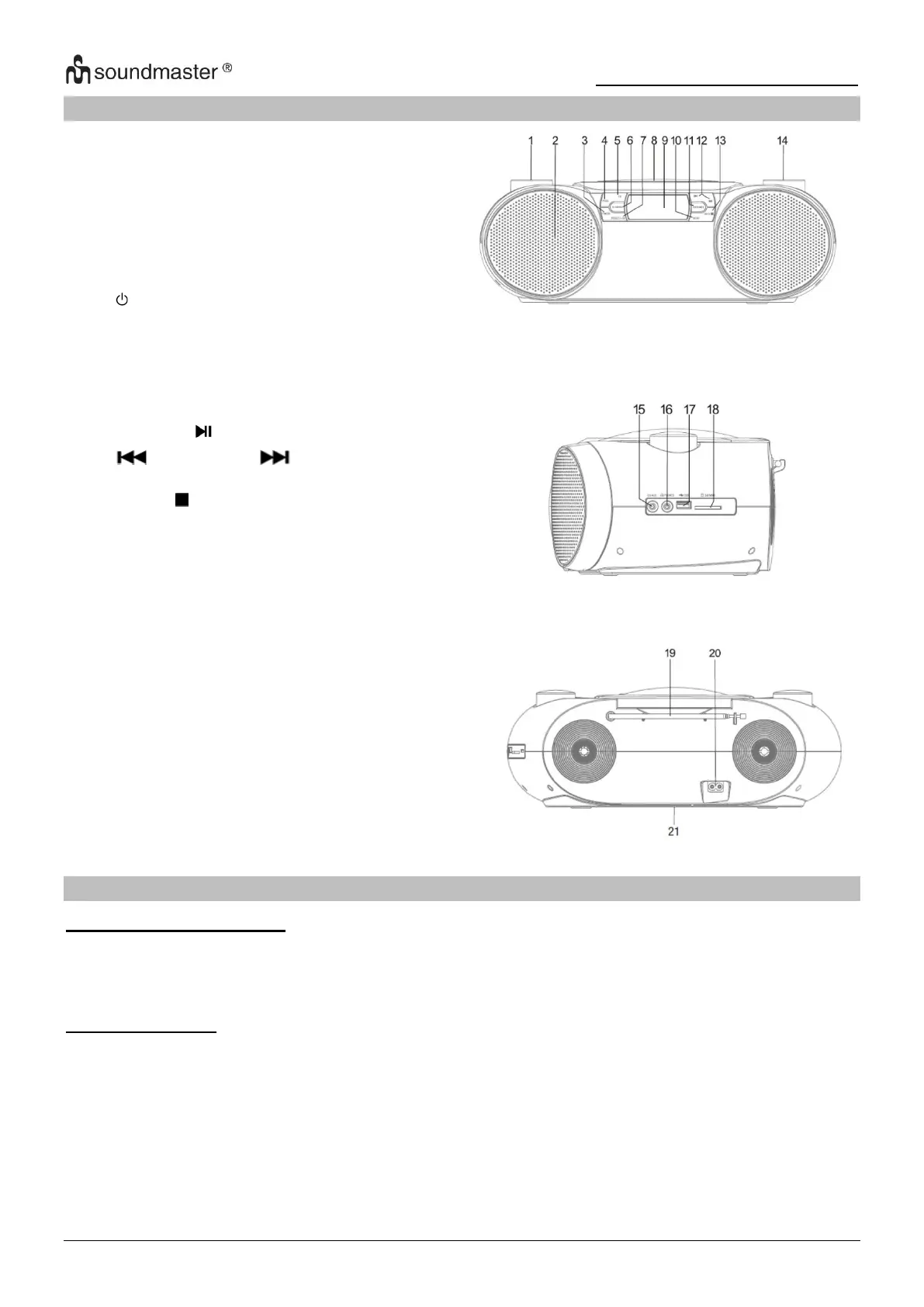

LOCATION OF CONTROLS
FRONT VIEW
1
VOLUME knob
2
Speaker
3
P.MODE button
4
PROGRAM button
5
EQ button
6
(Standby) / SOURCE button
7
PRESET / +10 button
8
CD door button
9
LCD display
10
MENU button
11
ENTER / button
12
(Skip back) / Skip forward)
button
13
INFO / (STOP) button
14
TUNING knob
SIDE VIEW
15
Aux-in jack
16
Headphone jack
17
USB port
18
SD/MMC card slot
BACK VIEW
19
FM antenna
20
AC socket
21
Battery compartment (at the bottom)
INSTALLATION
CONTENT OF DELIVERY
➢ Main unit
➢ Instruction Manual
➢ AC power cable
POWER SUPPLY
➢ Ensure that the voltage is the same as that indicated on the main unit identification plate.
➢ Connect the supplied AC power cable to a properly installed safety power socket and the
plug of the cable into the AC socket at the back side of the unit.
