Instruction Manual
Other connections
• This amplifier is equipped
with RCA connectors for low level inputs. The
low level signal is transmitted over RCA
cables. It is preferable to use the amplifier's
low-level inputs if the head unit
(radio) is equipped with low-level outputs.

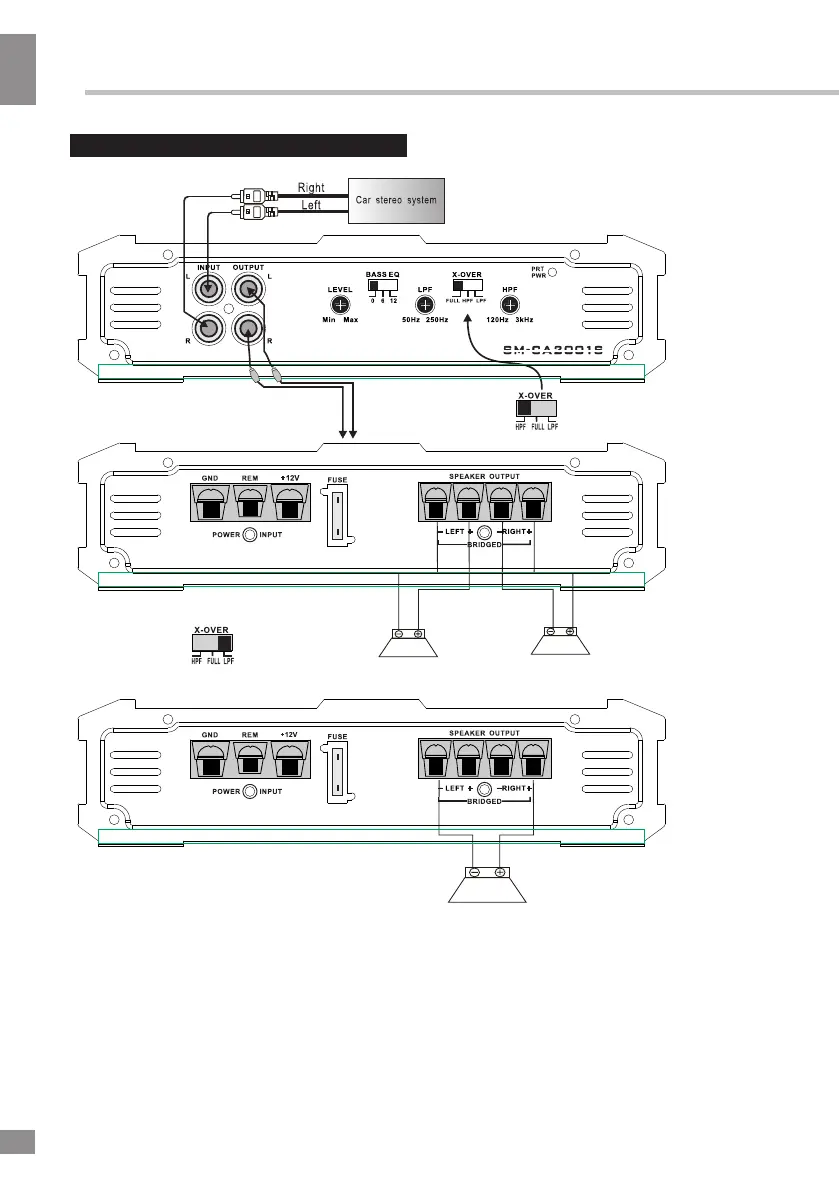

Input connections
5
Optional full range line
out connection for
additional amplifiers in
the system
Left speaker
2-16 Ohms
Right speaker
2-16 Ohms
Subwoofer
4-16 Ohms
