Soundoff Signal nERGY bluePRINT ENGCC01241 User Manual

4
EVCS_Central Controller 5.16
Department: _________________________________
Vehicle: ______________________________________
Installer / Date: ________________________________
Moun
ng Loca on: _____________________________

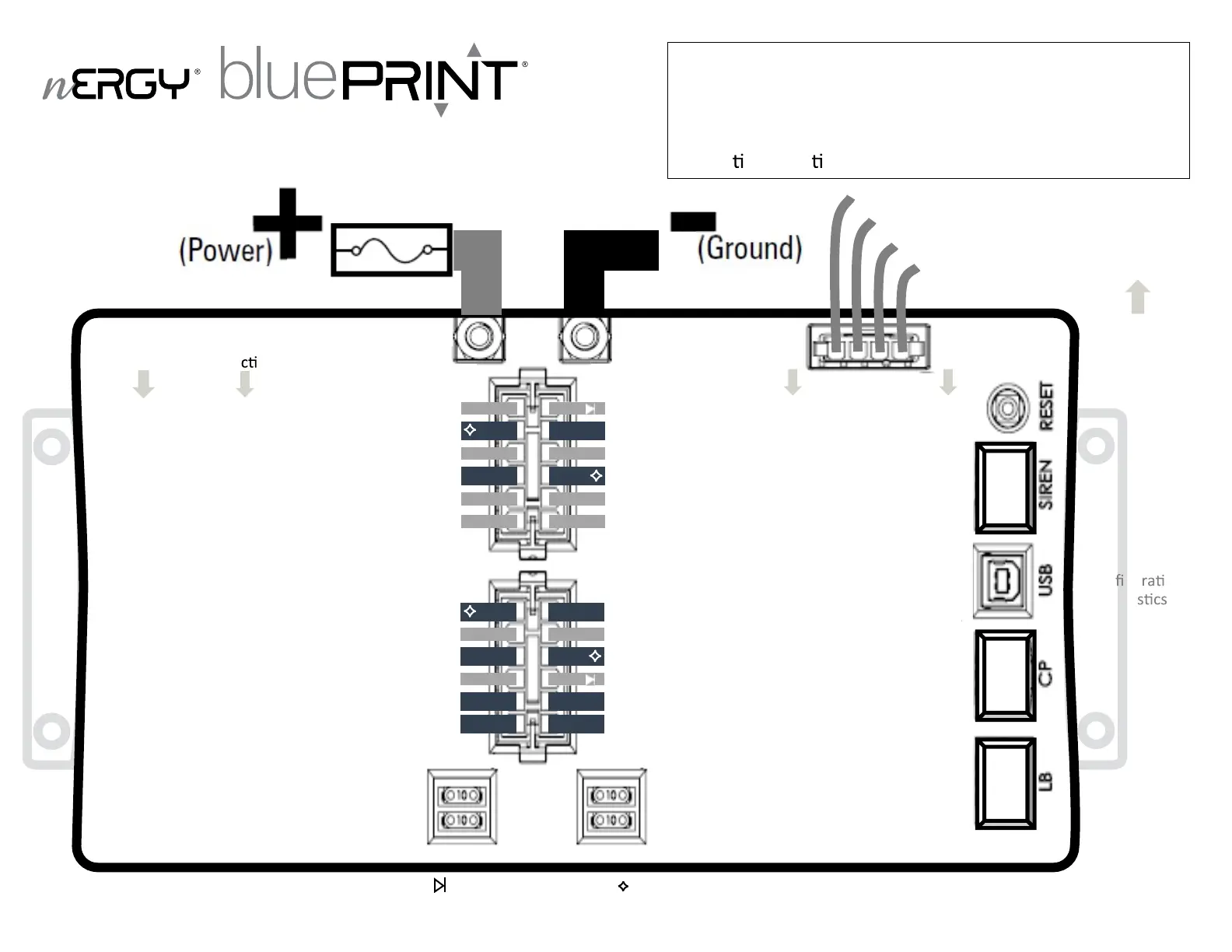

CENTRAL CONTROLLER
INSTALL TEMPLATE
1.800.338.7337 / www.soundoffsignal.com
Pin 12, Output 24, 5A _______________________
Pin 10, Output 23, 10A _______________________
Pin 8, Output 22, 5A _________________________
Pin 6, Output 21, 10A ________________________
Pin 4, Output 20, 5A _________________________
Pin 2, Output 19, 5A _________________________
Pin 12, Output 18, 10A _______________________
Pin 10, Output 17, 5A ________________________
Pin 8, Output 16, 10A ________________________
Pin 6, Output 15, 5A _________________________
Pin 2, Output 13, 10A ________________________
_________________________ 5A, Output 1, Pin 11
_________________________ 10A, Output 2, Pin 9
__________________________ 5A, Output 3, Pin 7
_________________________ 10A, Output 4, Pin 5
__________________________ 5A, Output 5, Pin 3
__________________________ 5A, Output6, Pin 1
________________________ 10A, Output 7, Pin 11
__________________________ 5A, Output 8, Pin 9
_________________________ 10A, Output 9, Pin 7
_________________________ 5A, Output 10, Pin 5
________________________ 10A, Output 11, Pin 3
________________________ 10A, Output 12, Pin 1
ON
Wire Color
Serial:
Serial:
Serial:
USB for
con
gu on &
diagno
only
b› ›
Wire Color Fun on
AUTOMOTIVE 100
AMP MAX FUSE
OR BREAKER
NOT USED_____________________________________
Ignition_____________________________________
Remotes/200R/Input Data____________________
External Reset__________________________
Control Panel
Lightbar
Always On, Output 14, 10A
Always On, Output 13, 10A
Always On, Output 11, 10A
Always On, Output 12, 10A
Function
Wire Color
= Backfeed Protection
= Xenon Inrush
_________________
Pin 4, Output 14, 10A
ON
ON
ON
ON
Future Use
