WARNING: Warning devices are strictly
regulated and governed by Federal, State and
Municipal ordinances. These devices shall be
used ONLY on approved vehicles. It is the sole
responsibility of the user of these devices to
ensure compliance.
!
WARNING
This product contains high intensity LED devices.
To prevent eye damage, DO NOT stare into light
beam at close range.
PATTERN SELECTION
1. Connect BLACK wire to ground.
2. Connect RED wire to +12VDC power.
3. Connect BLUE wire to +12VDC power.
4. With power applied to BLUE wire, momentarily apply power
to WHITE wire to move forward one warning pattern.
5. When you have chosen your first warning pattern,
disconnect BLUE wire from power.
6. The pattern you have selected will always display on the
UltraLITE when power is applied to the BLUE wire.
7. To setup your next warning pattern, connect GREEN wire to
power.
8. With power applied to the GREEN wire, momentarily apply
power to WHITE wire to move forward one warning pattern.
9. When you have chosen you second warning pattern,
disconnect GREEN wire from power.
10. The pattern you have selected will always display on the
UltraLITE when power is applied to the GREEN wire.
11. To setup the last warning pattern, connect BROWN wire to
power.
12. With power applied to the BROWN wire, momentarily apply
power to WHITE wire to move forward one warning pattern.
13. When you have chosen your third warning pattern
disconnect BROWN wire from power.
14. The pattern you have selected will always be displayed on
the UltraLITE when power is applied to the BROWN wire.
15. You are finished configuring the UltraLITE.
EL3H12A(xxx) 2.09
FLASH PATTERNS
12 MODULE UltraLITE - EL3H12A00(x) SPLIT COLOR
1 Quint Flash Alternating
2 Warp Flash Alternating
3 Inter-cycle Flash Alternating
4 Double Flash Alternating
5 Quad Flash Alternating
6 3 Flashes / Second Alternating
7 3 Flashes / Second Simultaneous
8 Q-Switch Alternating
9 E-Pattern Single Flash Alternating
10 E-Pattern Double Flash Alternating
11 E-Pattern Single Flash Simultaneous
12 E-Pattern Double Flash Simultaneous
13 LiteRyder Sweep
14 Quint Flash Every Other Module
15 Warp Flash Every Other Module
16 Inter-cycle Flash Every Other Module
17 Double Flash Every Other Module
18 Quad Flash Every Other Module
19 Q-Switch Every Other Module
Alternating: 1,2,3,4,5,6 alternates with 7,8,9,10,11,12
Simultaneous: All modules on at same time
Every Other: 1,3,5,7,9,11 alternates with 2,4,6,8,10,12

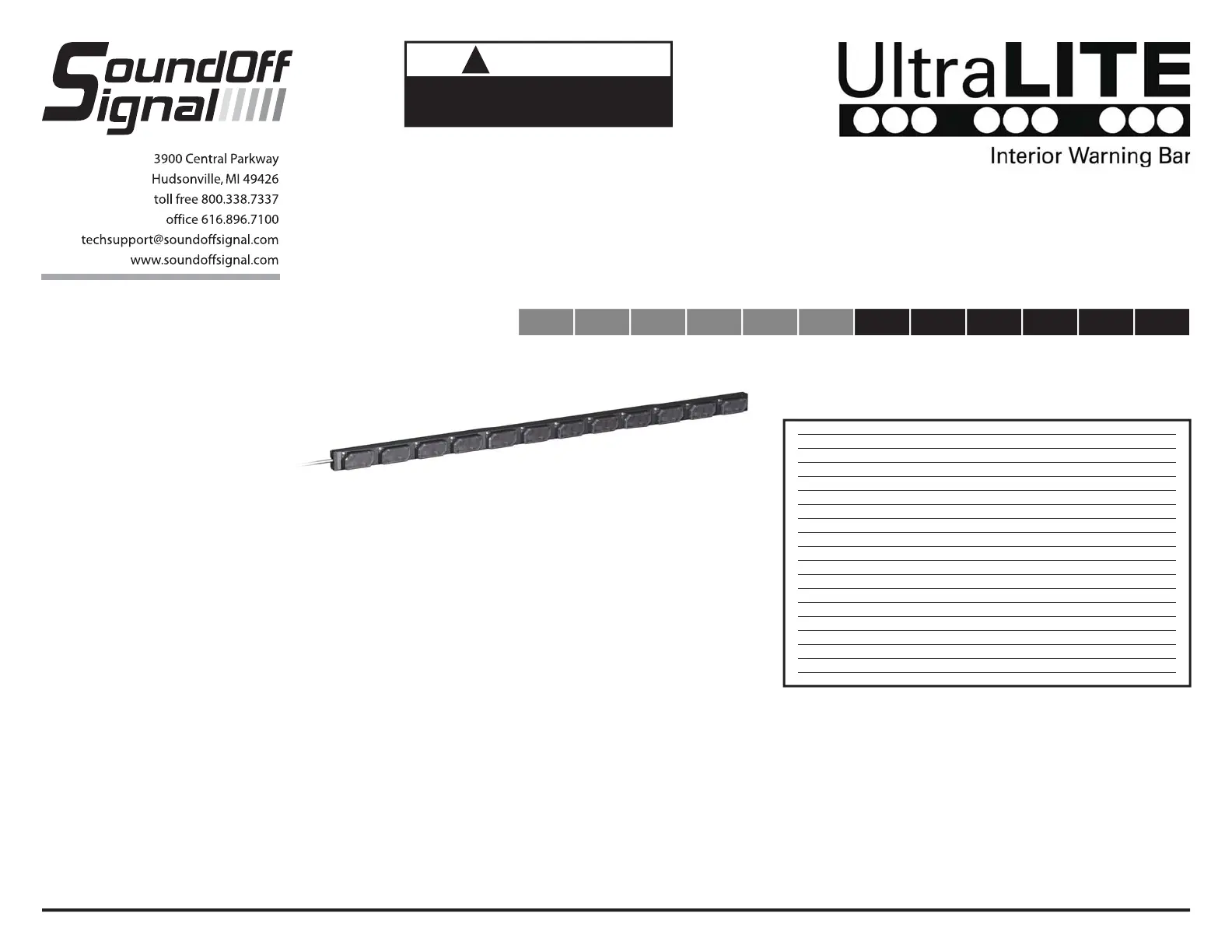

12 MODULE BAR
6+6 SPLIT WARNING
CONFIGURATION INSTRUCTIONS
EL3H12AØØ(x)
