SoundOFF ETSA380MF - Electrical Connections and Installation; Push Button and Output Wiring

10 amp
Fuse
ETSA380MF 2/08
380 SERIES SIREN
ETSA380MF
+12V - Push Button #1 Output
+12V - Push Button #2 Output
+12V - Push Button #3 Output
Push Button #8 Normally Open Output
Push Button #8 Input
Push Button #8 Normally Closed Output
10 amp
Fuse
10 amp
Fuse
10 amp
Fuse
RED
BLUE
GREEN
YELLOW
RED/WHITE
RED
WHT/BLK
+12V - Push Button #4 Output
+12V - Push Button #5 Output
+12V - Push Button #6 Output
Push Button #7 Normally Open Output
Push Button #7 Input
Push Button #7 Normally Closed Output
10 amp
Fuse
10 amp
Fuse
10 amp
Fuse
10 amp
Fuse
50 amp
Fuse
50 amp
Fuse
WHT/RED
WHITE
RED/BLK
VIOLET
WHITE
ORANGE
20 amp
Fuse
RED
+12V
+12V
20 amp
Fuse
20 amp
Fuse
BLUE
GREEN
YELLOW
+12V Level 3 Output
+12V Level 2 Output
+12V Level 1 Output
WARNING
: Warning devices are strictly
regulated and governed by Federal, State
and Municipal ordinances. These devices
shall be used ONLY on approved vehicles.
It is the sole responsibility of the user of
these devices to ensure compliance.
WARNING
!
Sirens produce loud sounds that
may damage hearing
- Roll up windows.
- Wear hearing protection.
- Use only for emergency response.
- Avoid exposure to siren sound
outside of vehicle.

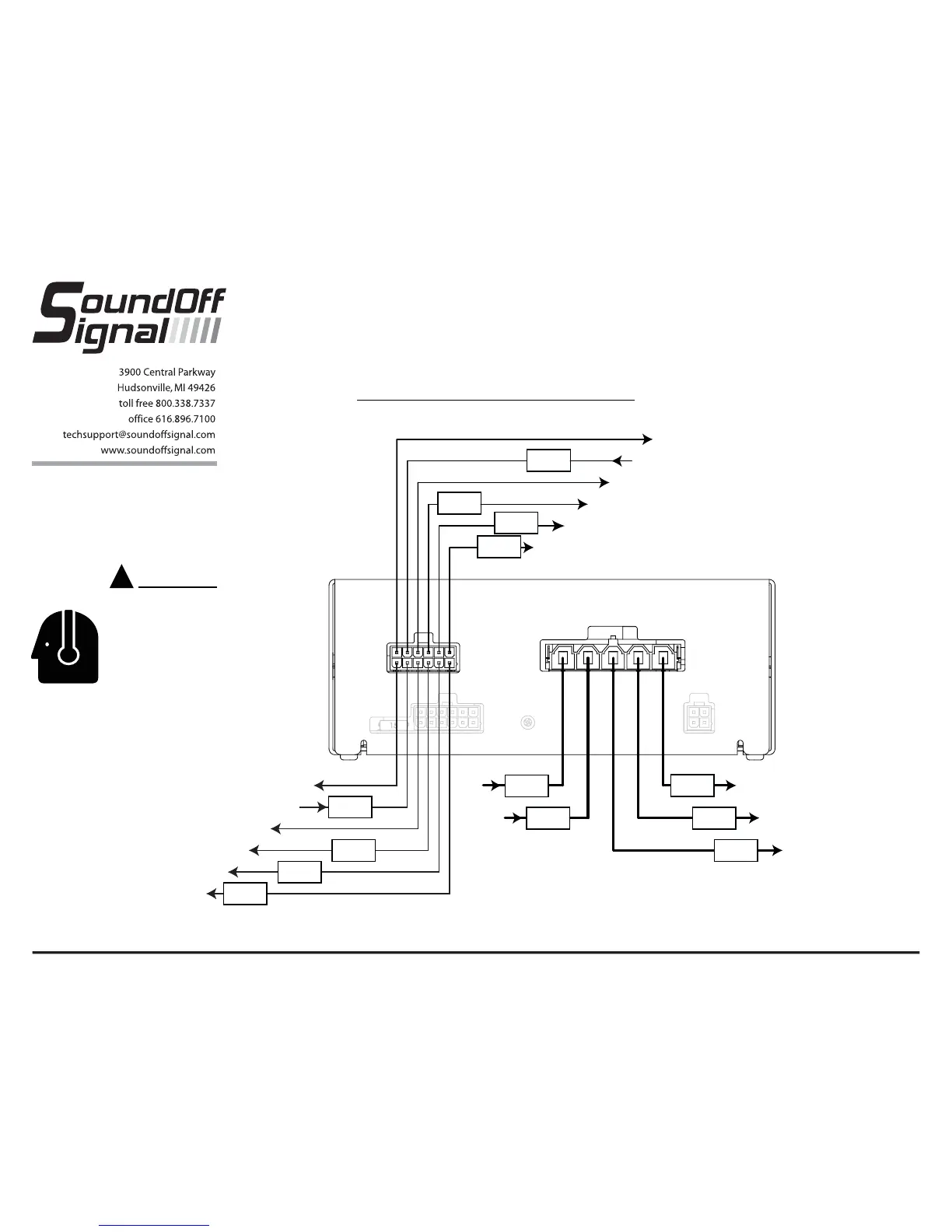

ELECTRICAL CONNECTIONS/INSTALLATIONELECTRICAL CONNECTIONS/INSTALLATION
Note: All fuses shown are user supplied & must be installed to ensure safe operation.
