SoundOFF ETSA380MF - Horn Ring, Auxiliary, and Control Wiring

ETSA380MF 2/08
WARNING: Warning devices are strictly
regulated and governed by Federal, State
and Municipal ordinances. These devices
shall be used ONLY on approved vehicles.
It is the sole responsibility of the user of
these devices to ensure compliance.

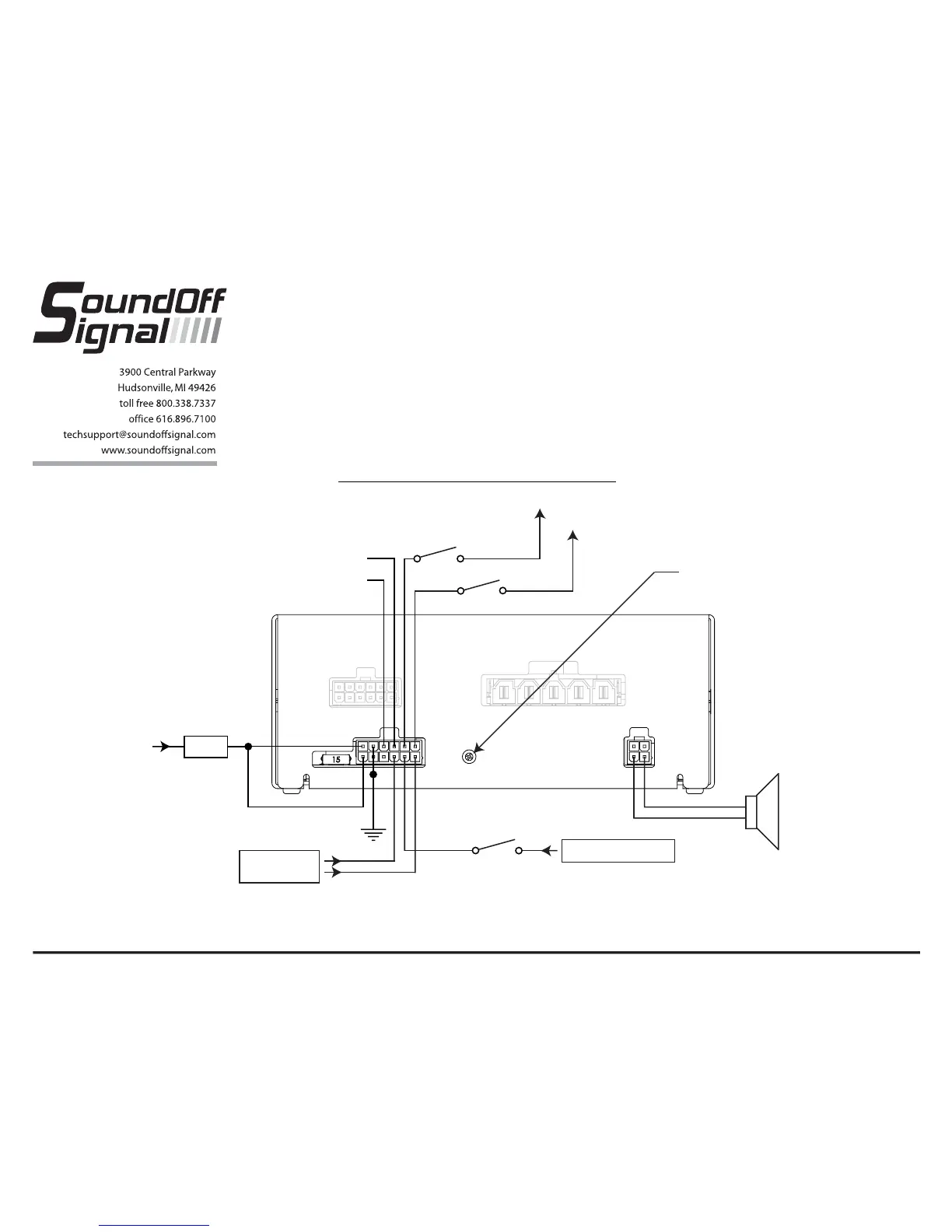

ELECTRICAL CONNECTIONS/INSTALLATION
+12V
15 amp
Fuse
RED
BLACK
Horn Ring Out
Horn Ring In
+12V
+12V
Violet
Grey
Auxiliary
Backlight
RADIO
REBROADCAST
BLUE
BLUE
Neutral Safety Switch
Park Kill
YELLOW
ORANGE/BLACK
ORANGE
11 Ohm Speaker
100 Watt
380 SERIES SIREN
ETSA380MF
Note: All fuses shown are user supplied & must be installed to ensure safe operation.
Radio Rebroadcast
Output Level Adjust
