380 SERIES SIREN
ETSA380MF
Programming Modes
Auxiliary Switch Settings:

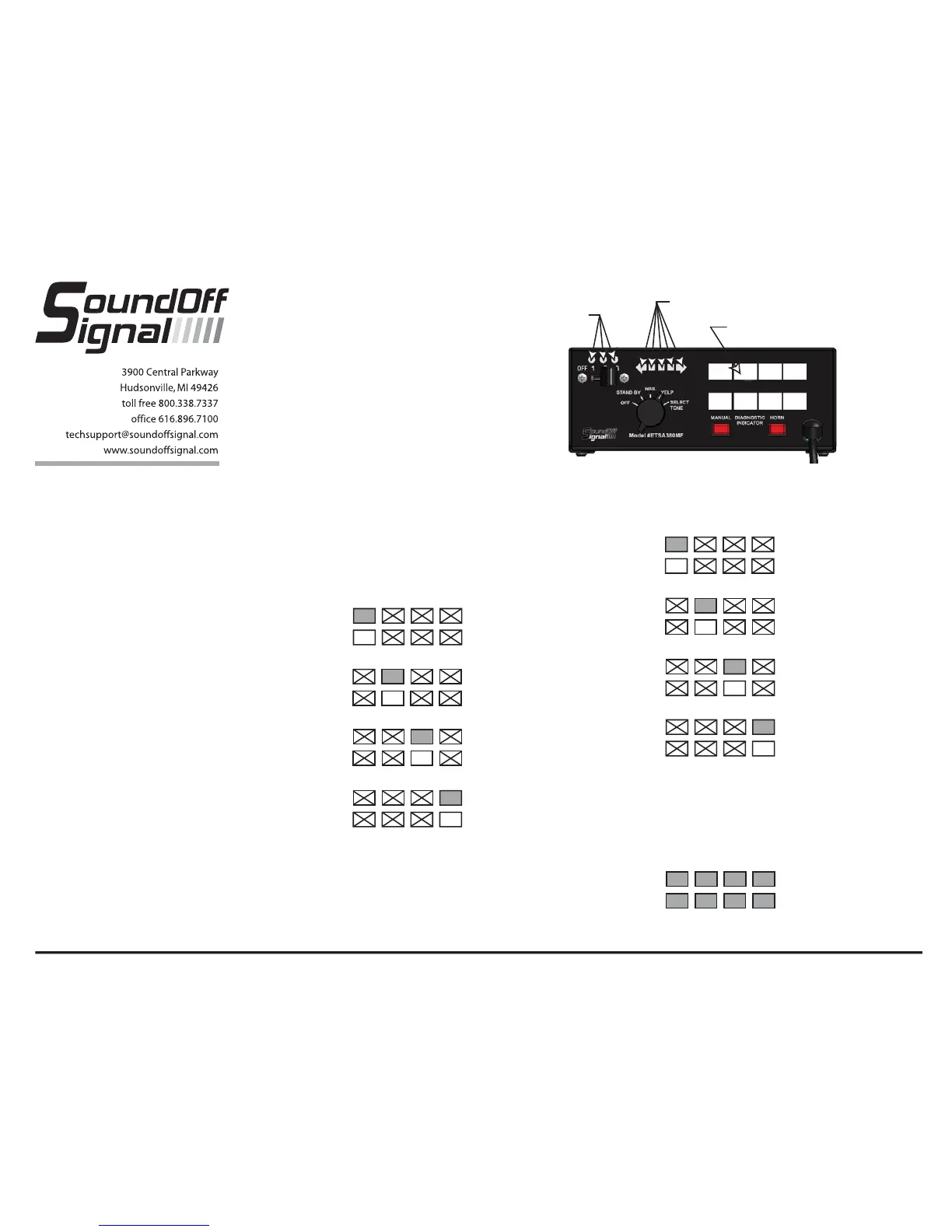

Refer to Figure at right for Button and LED locations and terminology
1. Press and Hold Auxiliary Button #1 and #8 until slide switch #1 LED flashes.
2. Press the button which setting is going to be viewed/changed 1 time.
3. Monitor the 5 LED’s for the arrow controller to determine setting
a.  - Arrow Controller (Left, Right, Center, OFF)
b.  - Alternate Action Switch (Press ON / Press OFF)
c.  - Momentary Action Switch (ON only when depressed)
d.  - 8 Second ON Time (ON for 8 seconds when depressed)
e.  - Radio Re-Broadcast (Only valid for buttons 6, 7, 8)
4. Continue steps 2-3 for any other buttons that need to be programmed.
5. When Finished, momentarily depress PTT button on the microphone to exit
programming mode.
Note: The arrow controller function uses Relay #6 and therefore when a button is
selected for the arrow controller function, button #6 may not be used for
switching functions. In addition, button #6 can’t be used for the arrow control
function since the arrow controller requires the use of 2 relays.
Slide Switch Settings:
1. Press and Hold Auxiliary Button #1 and #4 until slide switch #2 LED flashes.
2. Press Auxiliary switch 1, 2, or 3 depending on which configuration for the slide
switch is required.
3. Auxiliary Switch #1 Illuminated (Mode #1)
a.  - Slide Switch Position 1
b.  - Slide Switch Position 2
c.  - Slide Switch Position 3
4. Auxiliary Switch #2 Illuminated (Mode #2)
a.  - Slide Switch Position 1
b.  - Slide Switch Position 2
c.  - Slide Switch Position 3
AUXILIARY BUTTON #’S
123
4
5
678
Slide Switch LEDS
Arrow Control LED’s
5. Auxiliary Switch #3 Illuminated (Mode #3)
a.  - Slide Switch Position 1
b.  - Slide Switch Position 2
c.  - Slide Switch Position 3
6. When finished, momentarily depress PTT button on microphone to exit
programming mode.
Input Settings:
1. Press and Hold Auxiliary Button #1 and #3 until slide switch #3 LED flashes.
a. Park Kill Polarity Mode
= Activate when input connected to Ground
= Activate when input connected to +12V
b. Horn Ring Polarity Mode
= Activate when input connected to Ground
= Activate when input connected to +12V
c. CA Title 13 Compliance Mode
= DISABLED
= ENABLED
d. Level 3 Tone Activation
= Siren Tone is enabled whenever lever is in
position #3.
= Siren Tone is always enabled
2. When finished, momentarily depress PTT button on microphone to exit
programming mode.
Other Modes:
1. Press and Hold Auxiliary Button #1 and #5 until slide switch #1 and #3 LED
flashes.
a. Horn Ring Activation
= Enabled whenever siren is not in “OFF”
position.
= Enabled only when slide switch is in
position 3.
b. TBD
= TBD
= TBD
c. TBD
= TBD
= TBD
d. TBD
= TBD
= TBD
2. When finished, momentarily depress PTT button on microphone to exit
programming mode.
Setting PA Volume:
1. Press and Hold Auxiliary Button #1 and #2 until slide switch #2 and #3 LED
flashes.
a. Depress and hold PA switch on microphone and press Pushbutton 1-8
depending on volume required. When correct volume is determined, release
PA switch on microphone and the volume setting will be permanently stored.
Low 2
3
4
5
6
7 High
