Soundstream TARANTULA RS.2 Installation Guide

SYSTEM PROGRAMMING - Menu 1
PAGE 2
INSTALL MANUAL
TABLE OF CONTENTS
WIRING DIAGRAM.......................................................................Page 3-4
Connector Pin Configuration
Antenna Connection
Door Lock Connector
Bypass Connector
Data Port Connector
Tach Learning..................................................................................Page 5
Auto Tach/ Tachless Learning
Hybrid Mode
Low Idle Learn
Wire Description.............................................................................Page 6-7
6-Pin Ignition Connector
2-Pin Park Light & Ground Connector
3-Pin Lock & Unlock Connector
3-Pin Bypass Module Connector
9-Pin Connector
Transmitter Programming..............................................................Page 8
Programming Remote Transmitters
Program Mode.................................................................................Page 9
Enter Program Mode
Selecting Program Menu
Selecting The Programmable Setting
Changing The Programmable Setting
System Reset
Program Menus.........................................................................Page 10-11
Programming Menus 1-4
Diagnostics....................................................................................Page 12
I2 Button Remote Notes................................................................Page 13
****How to use the 2 button remote for programming and other functions.
Door Lock Diagrams................................................................Page 14-15
Contact Info...................................................................................Page 16
RS.2
SYSTEM PROGRAMMING - Menu 1
PAGE 3
RS.2
INSTALL MANUAL

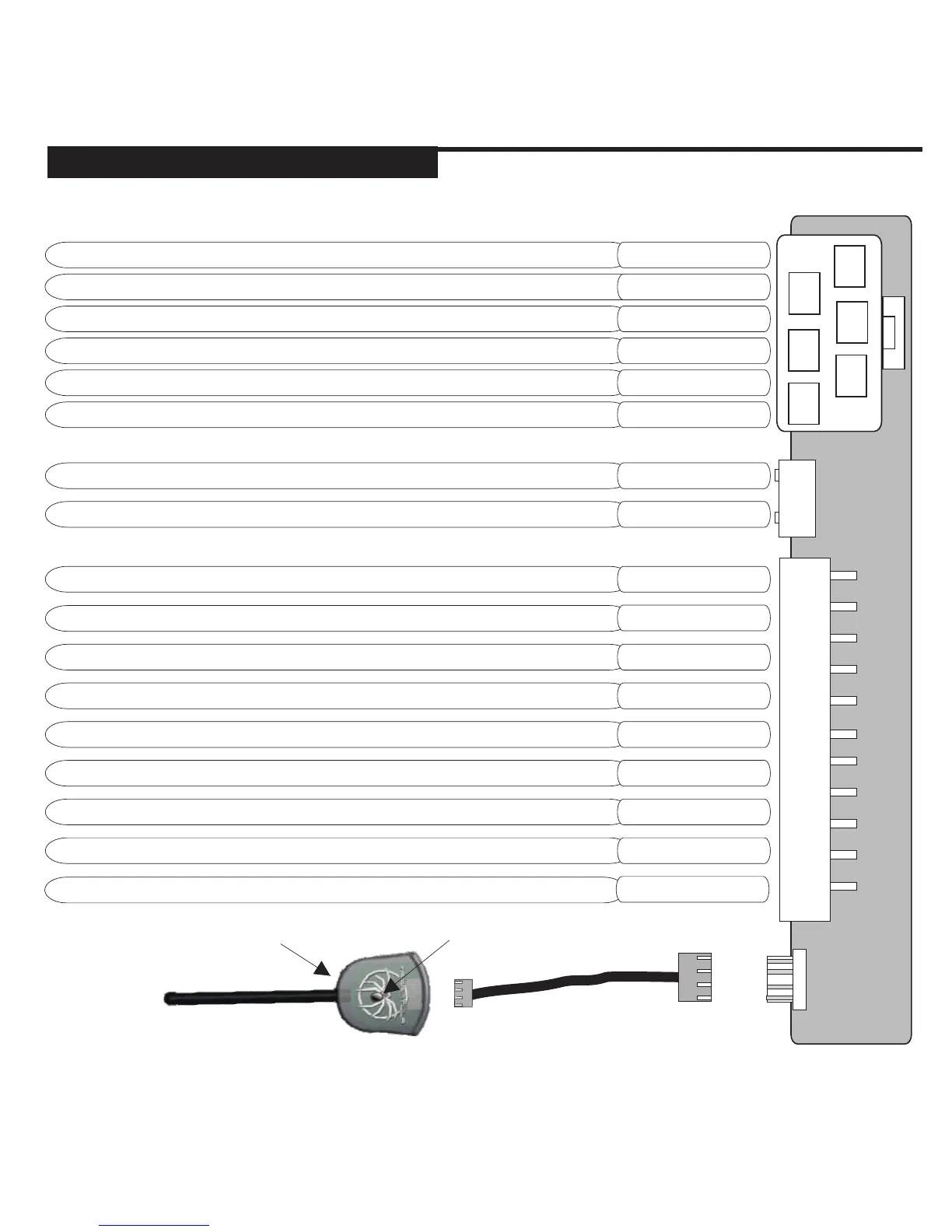

WIRE DIAGRAM
(+/-) GLOW PLUG/ WAIT TO START TIMER/ TRIGGER TO START
1
5
3
2
4
6
1
2
3
4
5
6
7
8
9
1
2
SYSTEM GROUND INPUT/ CHASSIS GROUND
SELECTABLE PARK LIGHT OUTPUT (DEFAULT POSITIVE)
STATUS LED
PROGRAM / VALET BUTTON
BLACK
WHITE
OUTPUT TO ACTIVATE IGNITION CIRCUITTHE PRIMARY
PINK
SELECTABLE OUTPUT* (DEFAULT 2ND IGNITION)
PINK/WHITE
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE THE STARTER CIRCUIT
PURPLE
12VOLT/ 30 AMP MAIN POWER INPUT RED
OUTPUT TO ACTIVATE ACCESSORY CIRCUITTHE
ORANGE
(-) AUX 1 OUTPUT - (HOLD UNLOCK & TRUNK)
ORANGE/BLACK
(-) TRUNK RELEASE OUTPUT RED/WHITE
(-) REARM OUTPUT - (PULSE WITH LOCK AND AFTER START)
GREEN/WHITE
(-) DISARM OUTPUT (PULSE WITH UNLOCK & BEFORE START)
GREEN/BLACK
(AC) TACH DETECTION INPUT (CONNECT TO COIL, INJECTOR...) PURPLE/WHITE
(-) HOOD PIN SWITCH INPUT (GROUND WHEN HOOD IS OPENED) GRAY
(+) BRAKE SWITCH INPUT (12VOLT WHEN BRAKE IS PRESSED)
BROWN
GRAY/BLACK
(-) HORN OUTPUT - PROGRAMMABLE BROWN/WHITE
DO NOT INSTALL THIS SYSTEM INTO A MANUAL TRANSMISSION VEHICLE!!
