INSTALLATION(CONT.)
- Only use speakers with 4 ohms impedance.
- Do not attach the control panel to the chassis before wiring is complete.
- The maximum current of the auto antenna is 200mA.
Removal of the Main Unit
1. Remove the metal strap from the main unit.
2. Remove the plastic trim out from the main unit.
3. Insert a bracket key into the left and right side of the main unit and draw the unit out of
the mounting sleeve.
Wiring Connections

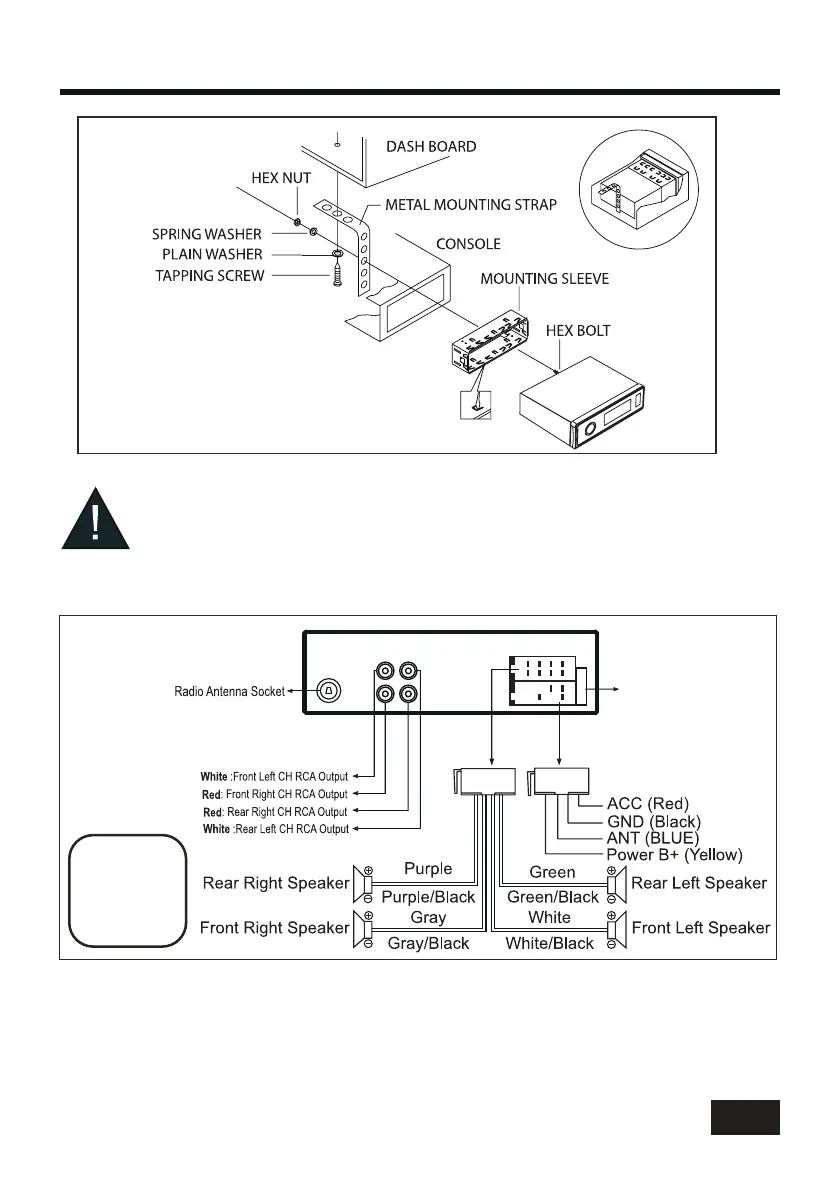

WIRING
DIAGRAM
CAUTION
+12V DC
NEGATIVE
GROUND
INSTALLATION
DIAGRAM
10A
FUSE 10A
