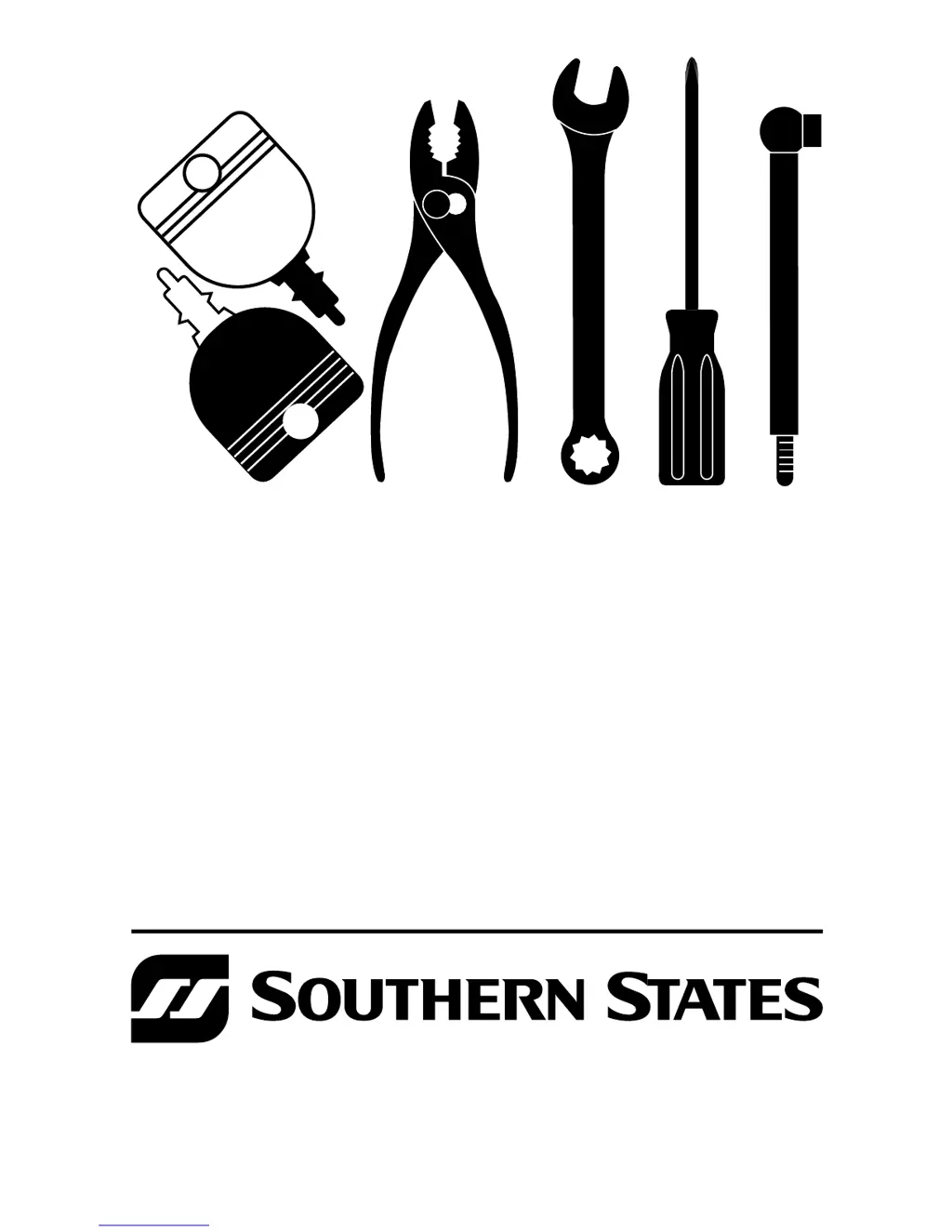

For Parts and Service, contact our authorized distributor:
call 1-800-849-1297 For Technical Assistance: call 1-800-829-5886
195478 Rev. 1 3.18.05 RD
PRINTED IN U.S.A.
OPERATOR'S MANUAL
MODEL NO. SP24H48YT
24 HP 48 INCH
LAWN TRACTOR
• Assembly
• Operation
• Maintenance
• Service and Adjustments
• Storage
• Troubleshooting

Questions and Answers

  • K
    Kristopher MullinsAug 20, 2025
    How to fix a Southern States Lawn Mower that will not start?
    • S
      sanchezheatherAug 20, 2025
      If your Southern States Lawn Mower won't start, several factors could be at play. First, ensure the fuel tank is full. If that's not the issue, consult the “TO START ENGINE” section in the Operation section to ensure the engine is properly choked. If the engine is flooded, wait a few minutes before trying again. Other potential causes include a bad spark plug (replace it), a dirty air filter (clean or replace it), a dirty fuel filter (replace it), or water in the fuel (empty the tank and carburetor, refill with fresh gasoline, and replace the fuel filter). Also, check for loose or damaged wiring. For carburetor adjustments, see “To Adjust Carburetor” in the Service and Adjustments section. If the engine valves are out of adjustment, contact an authorized service center/department.
  • B
    beanchristineAug 21, 2025
    Why is my Southern States SP24H48YT Lawn Mower hard to start?
    • T
      Terri WhiteAug 22, 2025
      If your Southern States Lawn Mower is hard to start, try these solutions: Begin by cleaning or replacing the air filter. If that doesn't work, replace the spark plug. A weak or dead battery could also be the culprit, so recharge or replace it. Additionally, consider replacing the fuel filter and emptying the fuel tank to refill it with fresh, clean gasoline. Check for any loose or damaged wiring. For carburetor adjustments, see “To Adjust Carburetor” in the Service and Adjustments section. If the engine valves are out of adjustment, contact an authorized service center/department.
  • T
    teresameyersAug 25, 2025
    How to troubleshoot loss of power in Southern States Lawn Mower?
    • C
      Cassandra PageAug 25, 2025
      If your Southern States Lawn Mower is experiencing a loss of power, there are several potential causes. You might be cutting too much grass or going too fast, so raise the cutting height or reduce your speed. Make sure the throttle isn't in the “CHOKE” position; adjust it as needed. Clean any buildup of grass, leaves, and trash from under the mower. Also, check the air filter and clean or replace it if it's dirty. Check the oil level and change the oil if it's low or dirty.
  • R
    Robert VegaAug 26, 2025
    What to do if Southern States SP24H48YT Lawn Mower engine will not turn over?
    • Y
      ysmithAug 27, 2025
      If the engine of your Southern States Lawn Mower won't turn over, make sure the brake pedal is depressed and the attachment clutch is disengaged. Check the battery; recharge or replace it if it's weak or dead. Replace any blown fuses and clean corroded battery terminals. Inspect for loose or damaged wiring. Check or replace the ignition switch, solenoid, or starter if faulty. If the operator presence switch(es) are faulty, contact an authorized service center/department.
  • J
    John MillerAug 28, 2025
    Why does my Southern States SP24H48YT Lawn Mower have poor grass discharge?
    • A
      ahendersonAug 28, 2025
      If your Southern States Lawn Mower has poor grass discharge, ensure the engine speed is set to “FAST.” Reduce your travel speed and allow wet grass to dry before mowing. Level the mower deck and check the tires for proper air pressure. Replace or sharpen the blade and tighten the blade bolt if it's worn, bent, or loose. Clean any buildup of grass, leaves, and trash under the mower. Replace the mower drive belt if it's worn. Reinstall blades with the sharp edge down if improperly installed, and replace with the blades listed in this manual if improper blades are used. Clean around mandrels to open vent holes if mower deck vent holes are clogged.
  • M
    Meagan NewtonAug 30, 2025
    What causes a Southern States SP24H48YT Lawn Mower to click but not start?
    • A
      alexa78Aug 30, 2025
      If your Southern States Lawn Mower engine clicks but won't start, the problem may be a weak or dead battery, so recharge or replace it. Another potential issue is corroded battery terminals, so clean them. Check for loose or damaged wiring. If the solenoid or starter is faulty, check or replace them.
  • G
    grahamstevenSep 1, 2025
    Why is my Southern States SP24H48YT Lawn Mower vibrating excessively?
    • D
      Donald GonzalezSep 1, 2025
      If your Southern States Lawn Mower is experiencing excessive vibration, the issue might be a worn, bent, or loose blade, so replace the blade and tighten the blade bolt. If the blade mandrel is bent, contact an authorized service center/department. Also, tighten any loose parts and replace any damaged parts.
  • J
    Janet JacksonSep 3, 2025
    How to fix a Southern States SP24H48YT that leaves a poor, uneven cut?
    • M
      mitchellmarthaSep 3, 2025
      If your Southern States Lawn Mower is leaving an uneven cut, the cause might be a worn, bent, or loose blade, so replace the blade and tighten the blade bolt. Ensure the mower deck is level. Clean any buildup of grass, leaves, and trash under the mower. If the blade mandrel is bent, contact an authorized service center/department. Clean around mandrels to open vent holes if the mower deck vent is clogged.
  • H
    Hannah ReeseSep 5, 2025
    What to do if Southern States SP24H48YT Lawn Mower battery will not charge?
    • H
      Heather CampbellSep 5, 2025
      If the battery of your Southern States Lawn Mower will not charge, the battery cell(s) may be bad, so replace the battery. Check and clean all connections if there are poor cable connections. If so equipped, replace the regulator if it's faulty, or replace the alternator if it's faulty.
  • S
    Scott MuellerSep 6, 2025
    What to check if Southern States SP24H48YT continues to lose power?
    • L
      Lisa WilliamsonSep 6, 2025
      To address continued power loss in your Southern States Lawn Mower, clean and regap or change the spark plug if it's faulty. Replace the fuel filter if it's dirty. Empty the fuel tank and refill it with fresh, clean gasoline if the fuel is stale or dirty. If there's water in the fuel, empty the fuel tank and carburetor, then refill the tank with fresh gasoline and replace the fuel filter. Connect and tighten the spark plug wire if it's loose. Clean the engine air screen and fins if they're dirty, and clean or replace the muffler if it's dirty or clogged. Check all wiring for looseness or damage. For carburetor adjustments, see “To Adjust Carburetor” in the Service and Adjustments section. If the engine valves are out of adjustment, contact an authorized service center/department.

Summary

WARRANTY

LIMITED WARRANTY

Details the terms and conditions of the manufacturer's warranty for the tractor.

SAFETY RULES

SLOPE OPERATION SAFETY

Specific safety precautions and procedures for operating the tractor on slopes.

ASSEMBLY AND PRE-OPERATION

MOWER AND DRIVE BELT INSTALLATION

Detailed instructions for installing the mower deck and drive belt.

PRE-OPERATION CHECKS

A comprehensive list of checks before operating the tractor.

OPERATION

KNOW YOUR TRACTOR CONTROLS

Familiarizes the operator with the tractor's controls and features.

HOW TO USE YOUR TRACTOR

General guidance on operating the tractor and its functions.

STOPPING PROCEDURES

Essential steps for safely stopping the tractor's movement and engine.

OPERATING ON HILLS

Critical safety and operational guidelines for mowing on slopes.

STARTING THE ENGINE

Step-by-step guide for starting the tractor's engine in various conditions.

MAINTENANCE

MAINTENANCE SCHEDULE

A schedule outlining regular maintenance tasks and intervals.

OPERATOR PRESENCE & ROS SYSTEMS

Checks for the safety interlock and reverse operation systems.

BLADE CARE AND REPLACEMENT

Instructions for blade sharpening, replacement, and safety.

ENGINE LUBRICATION

Information on selecting and changing engine oil based on temperature.

SERVICE AND ADJUSTMENTS

MOWER HOUSING LEVELING

Instructions for adjusting the mower deck for optimal cutting.

MOWER DRIVE BELT REPLACEMENT

Detailed steps for removing and installing the mower drive belt.

STORAGE

TROUBLESHOOTING CHART
