7 8
SET UP AND OPERATION SET UP AND OPERATION
1. Slide the axle through the wheel slots on the back of the Pull
Cart (Fig 1).
2. Place one washer on the axle between the cart frame and
the wheel, then slide the wheel onto the axel followed by a
second washer (Fig 2-3).
3. Use a cotter pin (butterfly pin) to hold the wheel in place
(Fig 4). Bend the cotter pin to lock the assembly (Fig 5) Note:
You may need to use pliers to hold the pin in place while
bending the pin with needle nose (Fig 4a).
4. Repeat steps 2 and 3 on the opposite side of the cart for the
second wheel.

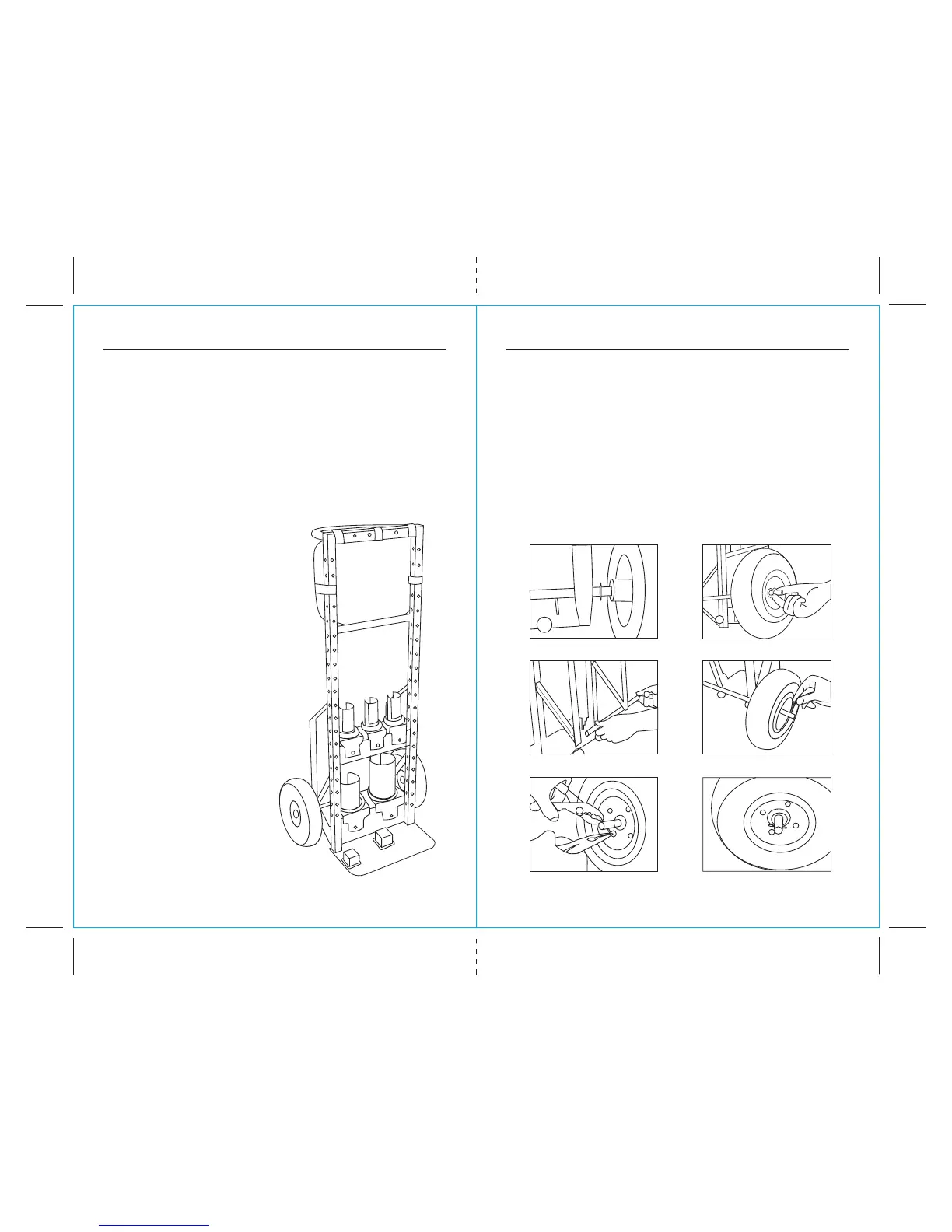

PULLER CART SETUP
Wheel Assembly Includes:
(2) Cotter Pins
(4) Washers
(2) Wheels
(1) Axle
Main Assembly Includes:
(1) Cart
(2) Cotter Pins
(1) Attachable Accessory Bag
Dimensions
L17.5” x W21” x H50”
Total weight 35 lbs.
(w/o cable puller, motor or conduit
adapters)
Description
Stock #- 56-82-96-01
Model #- PC100
WHEEL ASSEMBLY
Fig 1 Fig 2
Fig 3 Fig 4
Fig 5 Fig 6
