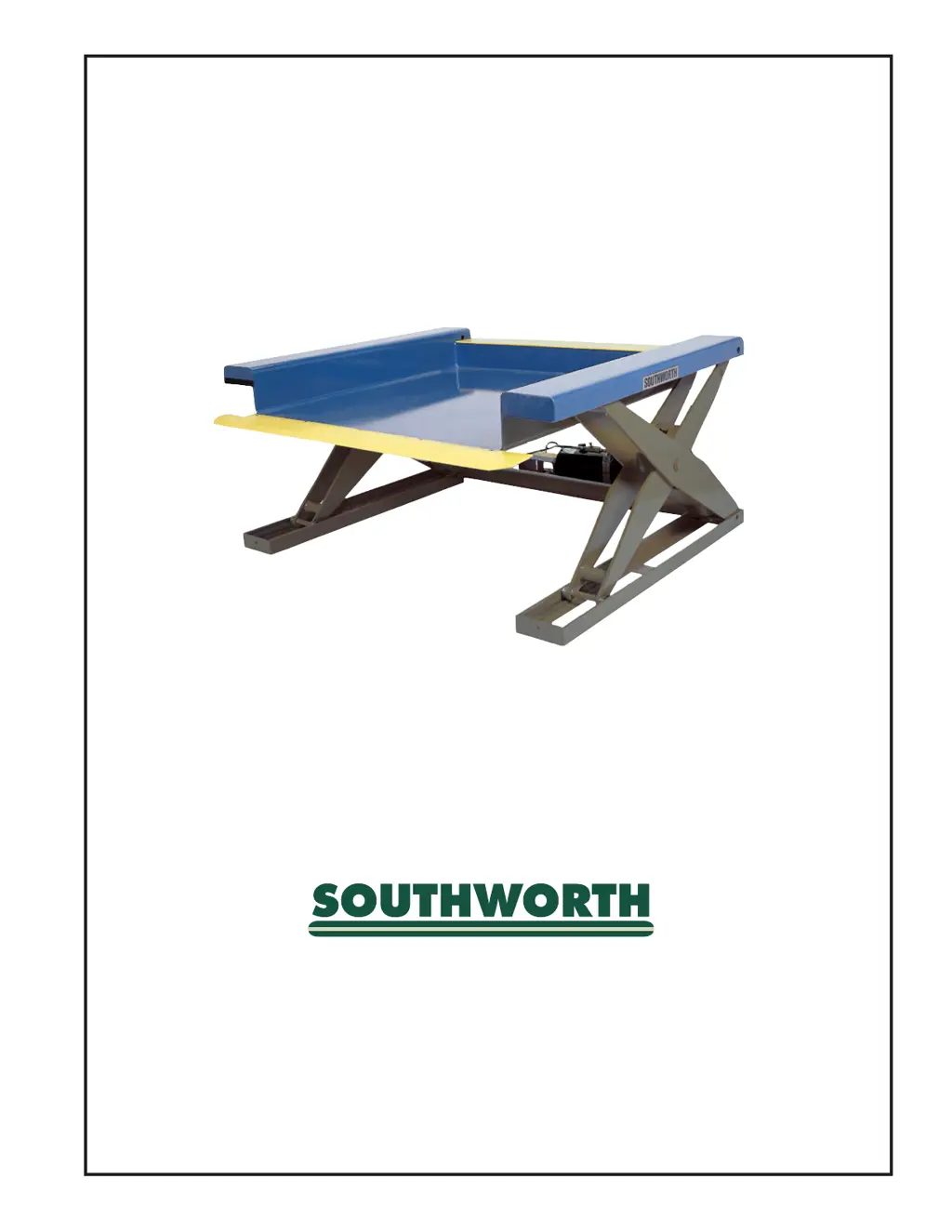

Owner’s Manual
ZLS Series
Floor Height Lift Tables
Model # ______________________________________
Serial # ______________________________________
Southworth Products Corp
P.O. Box 1380/Portland, Maine 04104-1380
Telephone 800/743-1000 or 207/878-0700 Fax 207/797-4734
www.southworthproducts.com
service@southworthproducts.com
October 2012

Table of Contents

Questions and Answers

  • B
    Brenda WilsonAug 18, 2025
    What to do if Southworth Lifting Systems lift fails to hold?
    • S
      Shannon CainAug 18, 2025
      If your Southworth Lifting System fails to hold, the down valve might be leaking. Remove the down valve and inspect it for any debris that may be preventing it from closing properly. Another possibility is that the down valve may be energized; in this case, check the solenoid in the valve using a voltmeter. Also, the cylinder may be leaking; check the vent line for oil in the cylinder.
  • K
    Kevin SilvaNov 1, 2025
    Why Southworth Lifting Systems lift will not raise?
    • H
      hrobertsNov 1, 2025
      If your Southworth Lifting System won't raise, it could be due to several reasons. First, verify that the load isn't too heavy. If the motor isn't running, check the main disconnect switch, fuses, and wiring to the motor, ensuring a 20 amp breaker is supplied for 110V. Also, check the hydraulic oil level; when the lift is fully raised, it should be 3/4” from the bottom of the tank, and when down, 3/4” from the top. If the motor hums without turning, inspect the motor wiring and line fuses. Confirm the supply voltage is within +/- 10% of the motor's rating at its terminals. Ensure the tank vent isn't plugged by removing any solid plug and inserting a vent plug if supplied. Furthermore, the suction filter might be clogged, so clean it as described in periodic maintenance. Check all fittings ...

Summary

Introduction to ZLS Series Lift Tables

Owner and User Responsibilities

Inspection and Maintenance

Device inspection and maintenance procedures as per manual.

Removal from Service

Conditions for removing device from service until repaired.

Repairs

Requirement for qualified personnel for all repairs.

Operators

Only trained and authorized personnel may operate the lift.

Before Operation

Operator responsibilities before using the lift.

During Operation

Guidelines for safe operation while the lift is in use.

Modifications or Alterations

Modifications require written permission from Southworth.

Safe Servicing Procedures

General Safety Information

Installation Instructions

Preparation

Steps to prepare for lift installation, including checking codes.

Operator Instructions

Safety Label Compliance

Explanation of safety alert symbols and signal words.

Safety Alert Symbols

Symbols indicating potential personal injury hazards.

Signal Words

Meaning of signal words like DANGER, WARNING, CAUTION.

Operating Procedures and Precautions

Maintenance

Hazards

Overview of hazards associated with lift maintenance.

Routine Periodic Maintenance

Scheduled monthly and bi-annual maintenance tasks.

Troubleshooting Guide

Ordering Replacement Parts

2 Year Warranty Information

Southworth ZLS Series Specifications

General IconGeneral
TravelUp to 60"
Lifting Capacity2, 000 - 6, 000 lbs
Lift HeightUp to 60"
Power SourceElectric
Control TypeHandheld pendant
Frame ConstructionSteel
